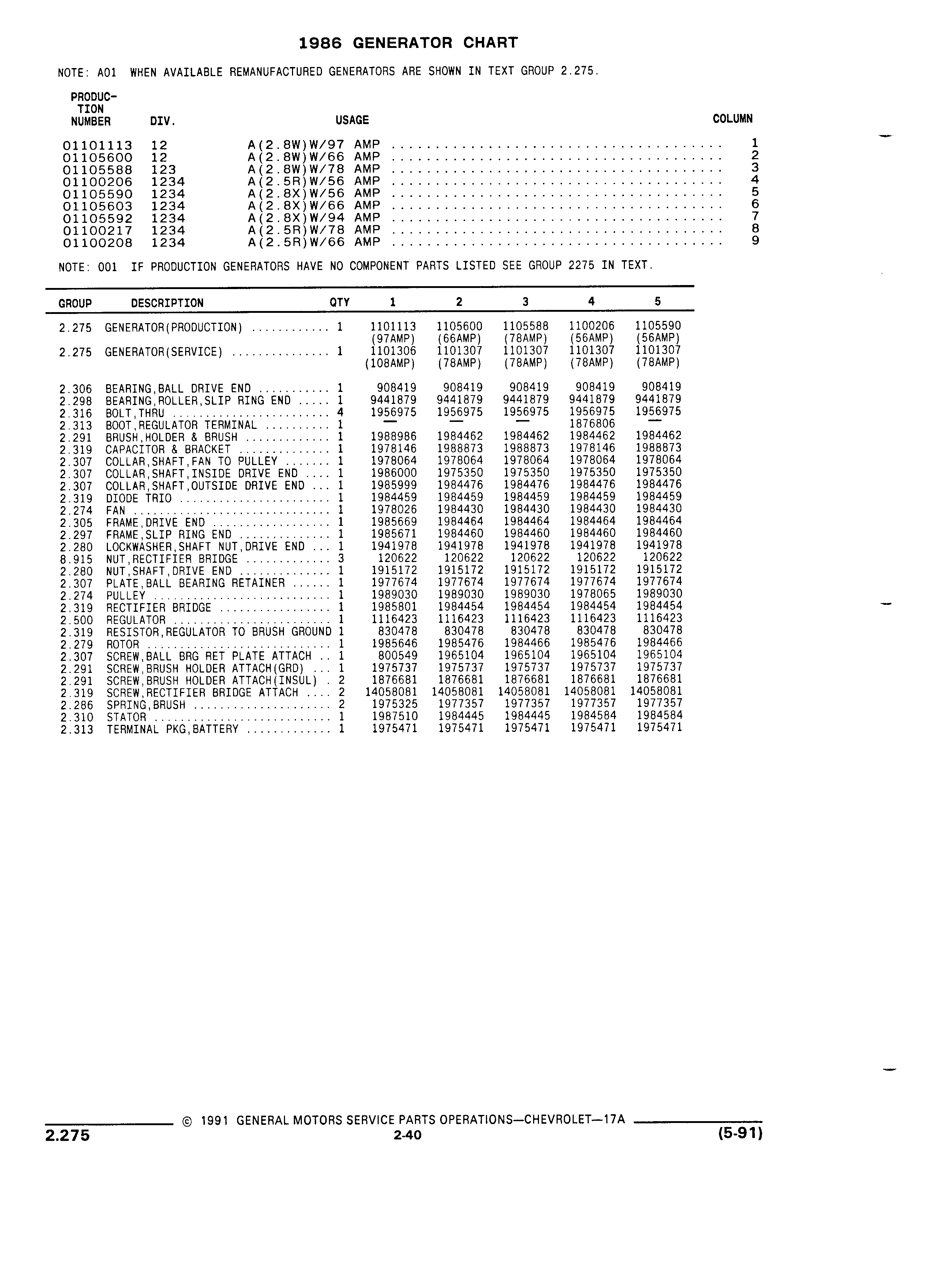

1986 GENERATOR CHART NOTE A01 WHEN AVAILABLE REMANUFACTURED GENERATORS ARE SHOWN IN TEXT GROUP 2 275 PRODUC TION NUMBER DIV USAGE COLUMN 01101113 12 A 2 8W W 97 AMP 1 01105600 12 A 2 8W W 66 AMP 2 01105588 123 A 2 8W W 78 AMP 3 01100206 1234 A 2 5R W 56 AMP 4 01105590 1234 A 2 8X W 56 AMP 5 01105603 1234 A 2 8X W 66 AMP 6 01105592 1234 A 2 8X W 94 AMP 7 01100217 1234 A 2 5R W 78 AMP 8 01100208 1234 A 2 5R W 66 AMP 9 NOTEI 001 IF PRODUCTION GENERATORS HAVE N0 COMPONENT PARTS LISTED SEE GROUP 2275 IN TEXT GROUP DESCRIPTION QTY 1 2 3 4 5 2 275 GENERATOR PRODUCTION 1 1101113 1105600 1105588 1100206 1105590 97AMP 66AMP 78AMP 56AMP 56AMP 2 275 GENERATOR SERVICE 1 1101306 1101307 1101307 1101307 1101307 108AMP 78AMP 78AMP 78AMP 7BAMP 2 306 BEARING BALL DRIVE END 1 908419 908419 908419 908419 908419 2 298 BEARING ROLLER SLIP RING END 1 9441879 9441879 9441879 9441879 9441879 2 316 BOLT THRU 4 1956975 1956975 1956975 1956975 1956975 2 313 BOOT REGULATOR TERMINAL 1 1 1876806 2 291 BRUSH HOLDER BRUSH 1 1988986 1984462 1984462 1984462 1984462 2 319 CAPACITOR BRACKET 1 1978146 1988873 1988873 1978146 1988873 2 307 0OLLAR SHAFT FAN TO PULLEY 1 1978064 1978064 1978064 1978064 1978064 2 307 COLLAR SHAFT INSIDE DRIVE END 1 1986000 1975350 1975350 1975350 1975350 2 307 COLLAR SHAFT OUTSIDE DRIVE END 1 1985999 1984476 1984476 1984476 1984476 2 319 DIODE TRIO 1 1984459 1984459 1984459 1984459 1984459 2 274 FAN 1 1978026 1984430 1984430 1984430 1984430 2 305 FRAME DRIVE END 1 1985669 1984464 1984464 1984464 1984464 2 297 FRAME SLIP RING END 1 1985671 1984460 1984460 1984460 1984460 2 280 LOCKWASHER SHAFT NUT DRIVE END 1 1941978 1941978 1941978 1941978 1941978 8 915 NUT RECTIFIER BRIDGE 3 120622 120622 120622 120622 120622 2 280 NUT SHAFT DRIVE END 1 1915172 1915172 1915172 1915172 1915172 2 307 PLATE BALL BEARING RETAINER 1 1977674 1977674 1977674 1977674 1977674 2 274 PULLEY 1 1989030 1989030 1989030 1978065 1989030 2 319 RECTIFIER BRIDGE 1 1985801 1984454 1984454 1984454 1984454 2 500 REGULATOR 1 1116423 1116423 1116423 1116423 1116423 2 319 RESISTOR REGULATOR TO BRUSH GROUND 1 830478 830478 830478 830478 830478 2 279 ROTOR 1 1985646 1985476 1984466 1985476 1984466 2 307 SCREW BALL BRG RET PLATE ATTACH 1 800549 1965104 1965104 1965104 1965104 2 291 SCREW BRUSH HOLDER ATTACH GRD 1 1975737 1975737 1975737 1975737 1975737 2 291 SCREW BRUSH HOLDER ATTAOH INSUL 2 1876681 1876681 1876681 1876681 1876681 2 319 SCREW RECTIFIER BRIDGE ATTACH 2 14058081 14058081 14058081 14058081 14058081 2 286 SPRING BRUSH 2 1975325 1977357 1977357 1977357 1977357 2 310 STATOR 1 1987510 1984445 1984445 1984584 1984584 2 313 TERMINAL PKG BATTERY 1 1975471 1975471 1975471 1975471 1975471 T 1991 GENERAL MOTORS SERVICE PARTS 0PERATlONS CHEVROLET 17A 2 275 2 40 5 91
