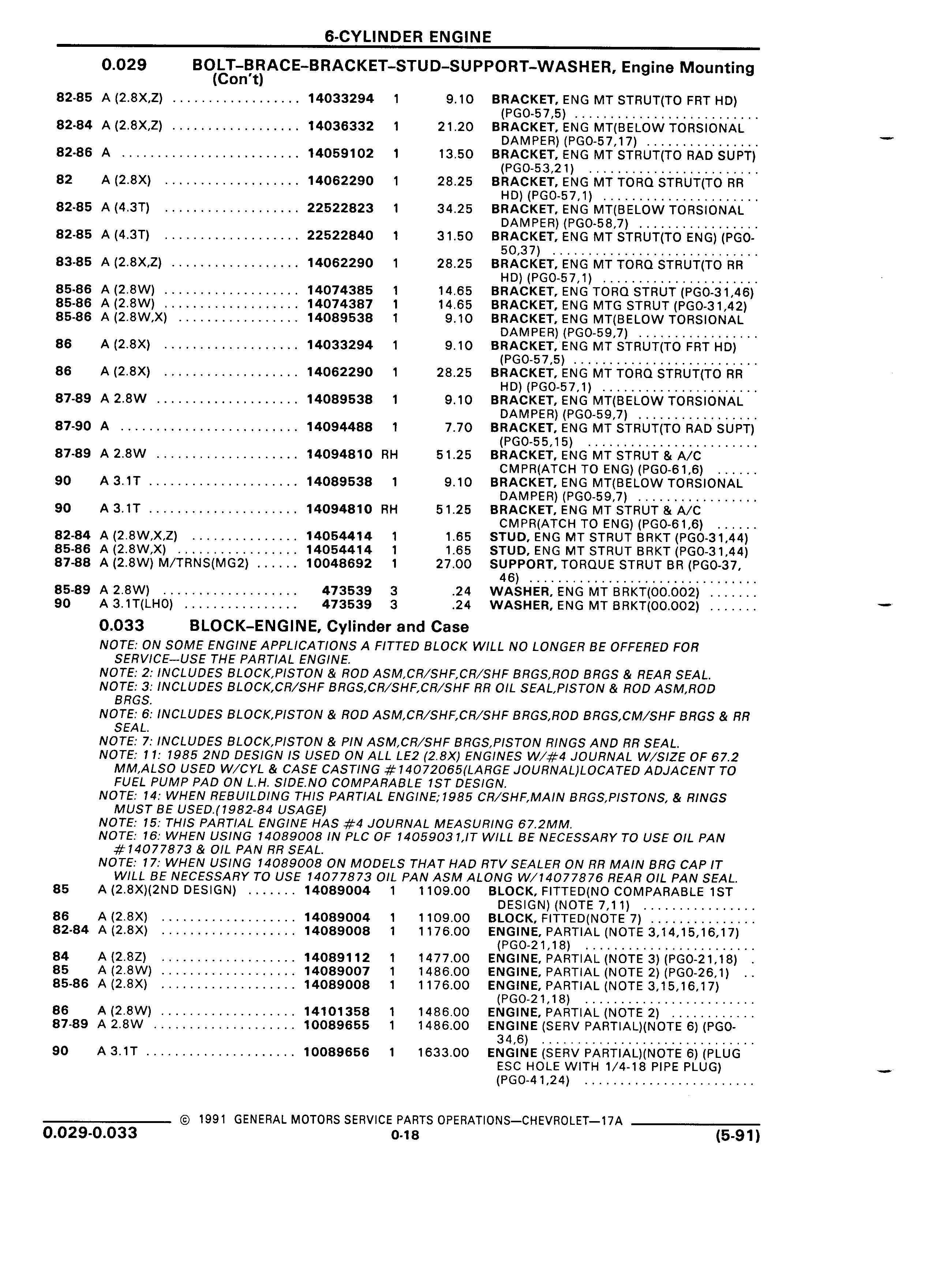

6 CYLINDER ENGINE 0 029 B I T BI IACE BRACKET STUD SUPPORT WASHER Engine Mounting 0n t 82 85 A 2 8X Z 14033294 1 9 10 BRACKET ENG MT STRUT TO FRT HD PGO 57 5 82 84 A 2 8X Z 14036332 1 21 20 BRACKET ENG MT BELOW TORSIONAL DAMPER PGO 57 17 82 86 A 14059102 1 13 50 BRACKET ENG MT STRUT TO RAD SUPT PGO 53 21 82 A 2 8X 14062290 1 28 25 BRACKET ENG MT TORO STRUT TO RR HD PGO 57 1 82 85 A 4 3T 22522823 1 34 25 BRACKET ENG MT BELOW TORSIONAL DAMPER PGO 58 7 82 85 A 4 3T 22522840 1 31 50 BRACKET ENG MT STRUT TO ENG PGO 50 37 83 85 A 2 8X Z 14062290 1 28 25 BRACKET ENG MT TORO STRUT TO RR HD PGO 57 1 85 86 A 2 8W 14074385 1 14 65 BRACKET ENG TORO STRUT PGO 31 46 85 86 A 2 8W 14074387 1 14 65 BRACKET ENG MTG STRUT PGO 31 42 85 86 A 2 8W X 14089538 1 9 10 BRACKET ENG MT BELOW TORSIONAL DAMPER PGO 59 7 86 A 2 8X 14033294 1 9 10 BRACKET ENG MT STRUT TO FRT HD PGO 57 5 86 A 2 8X 14062290 1 28 25 BRACKET ENG MT TORO STRUT TO RR HD PGO 57 1 87 89 A 2 8W 14089538 1 9 10 BRACKET ENG MT BELOW TORSIONAL DAMPER PGO 59 7 87 90 A 14094488 1 7 70 BRACKET ENG MT STRUT TO RAD SUPT PGO 55 15 87 89 A 2 8W 14094810 RH 51 25 BRACKET ENG MT STRUT A C CMPR ATCH TO ENG PGO 61 6 90 A 3 1T 14089538 1 9 10 BRACKET ENG MT BELOW TORSIONAL DAMPER PGO 59 7 90 A 3 1T 14094810 RH 51 25 BRACKET ENG MT STRUT A C CMPR ATCH TO ENG PGO 61 6 82 84 A 2 8W X Z 14054414 1 1 65 STUD ENG MT STRUT BRKT PGO 31 44 85 86 A 2 8W X 14054414 1 1 65 STUD ENG MT STRUT BRKT PGO 31 44 87 88 A 2 8W M TRNS MG2 10048692 1 27 00 SUPPORT TOROUE STRUT BR PGO 37 46 85 89 A 2 8W 473539 3 24 WASHER ENG MT BRKT O0 002 90 A 3 1T LHO 473539 3 24 WASHER ENG MT BRKT O0 002 0 033 BLOCK ENGINE Cylinder and Case NOTE ON SOME ENGINE APPLICATIONS A FITTED BLOCK W LL NO LONGER BE OFFERED FOR SERVICE USE THE PARTIAL ENGINE NOTE 2 INCLUDES BLOCK PISTON ROD ASM CR SHF CR SHF BRGS ROD BRGS 81 REAR SEAL NOTE 3 INCLUDES BLOCK CR SHF BRGS CR SHF CR SHF RR OIL SEAL PISTON ROD ASM ROD BRGS NOTE 6 INCLUDES BLOCK PISTON ROD ASM CR SHF CR SHF BRGS ROD BRGS CM SHF BRGS RR SEAL NOTE 7 INCLUDES BLOCK PISTON PIN ASM CR SHF BRGS P STON RINGS AND RR SEAL NOTE 11 1985 2ND DESIGN IS USED ON ALL LE2 2 8X ENGINES W 4 JOURNAL W SIZE OF 67 2 MM ALSO USED W CYL CASE CASTING 14072065 LARGE JOURNAL LOCATED ADJACENT TO FUEL PUMP PAD ON L H SIDE NO COMPARABLE 1ST DESIGN NOTE 14 WHEN REBUILDING THIS PARTIAL ENGINE 1985 CR SHF MAIN BRGS PISTONS RINGS MUST BE USED 1982 84 USAGE NOTE 15 THIS PARTIAL ENGINE HAS 4 JOURNAL MEASUR NG 67 2MM NOTE 16 WHEN USING 14089008 IN PLC OF 14059031 IT WILL BE NECESSARY TO USE OIL PAN 14077873 OIL PAN RR SEAL NOTE 17 WHEN USING 14089008 ON MODELS THAT HAD RTV SEALER ON RR MAIN BRG CAP IT WILL BE NECESSARY TO USE 14077873 OIL PAN ASM ALONG W 14077876 REAR OIL PAN SEAL 85 A 2 8X 2ND DESIGN 14089004 1 1109 00 BLOCK FITTED NO COMPARABLE 1ST DESIGN NOTE 7 11 86 A 2 8X 14089004 1 1109 00 BLOCK FITTED NOTE 7 82 84 A 2 8X 14089008 I 1176 00 ENGINE PARTIAL NOTE 3 14 15 16 17 PGO 21 18 84 A 2 82 14089112 1 1477 00 ENGINE PARTIAL NOTE 3 PGO 21 18 85 A 2 8W 14089007 1 1486 00 ENGINE PARTIAL NOTE 2 PGO 26 1 85 86 A 2 8X 14089008 1 1176 00 ENGINE PARTIAL NOTE 3 15 16 17 PGO 21 18 86 A 2 8W 14101358 1 1486 00 ENGINE PARTIAL NOTE 2 87 89 A 2 8W 10089655 1 1486 00 ENGINE SERV PARTIAL NOTE 6 PGO 34 6 90 A 3 1T 10089656 1 1633 00 ENGINE SERV PARTIAL NOTE 6 PLUG ESC HOLE WITH 1 4 18 PIPE PLUG PGO 41 24 1991 GENERAL MOTORS SERVICE PARTS OPERAT ONS CHEVROLET 17A 0 029 0 033 0 18 5 91
