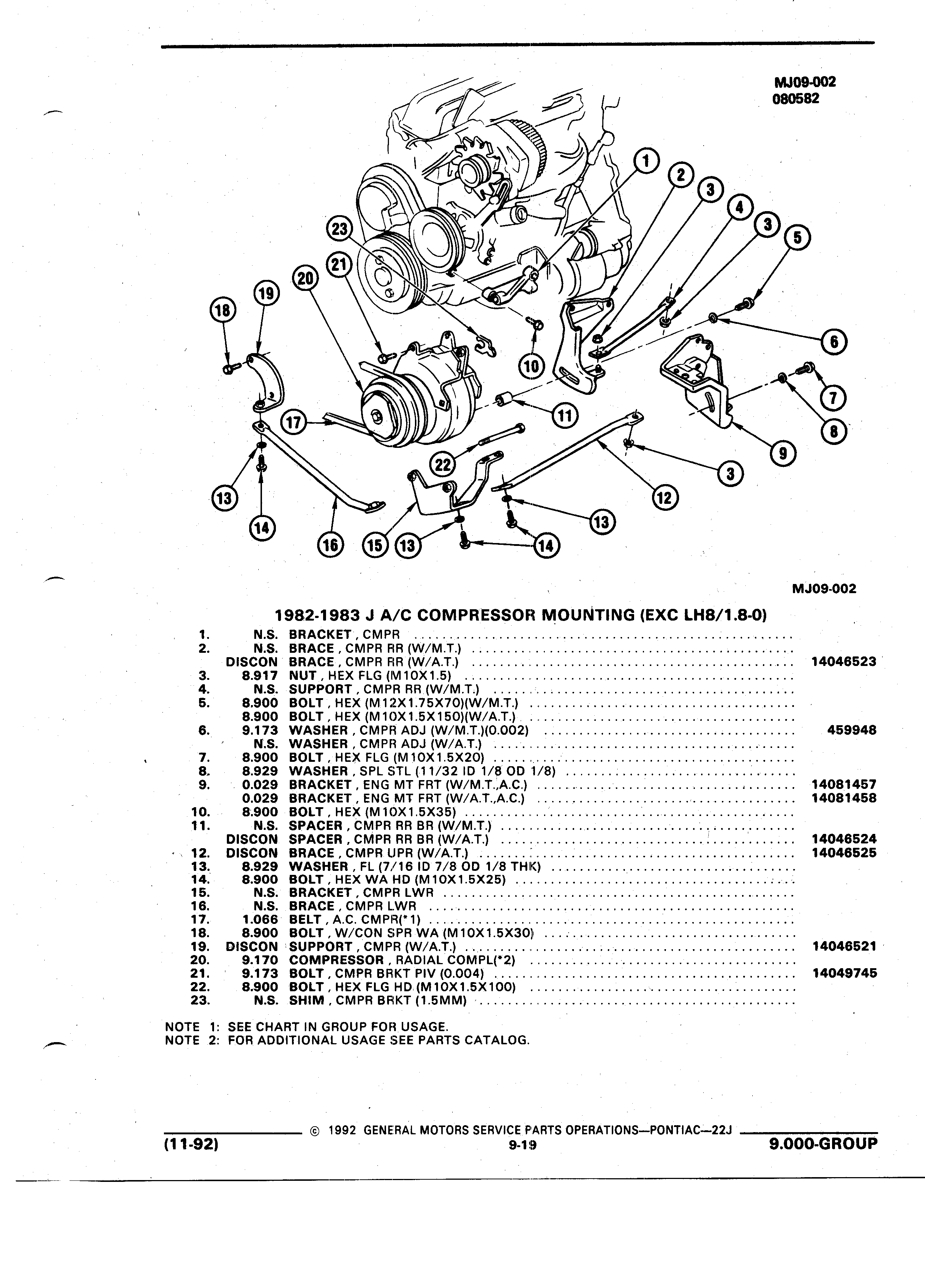

Z MJ09 OO2 I H I 7 fj T J I W 0 A I f w 0 15 U I I B QJ 3 I I 7 Q Q F1 I I i f Y X ix g 6 EX R P 4 A 1 I I Q Q I F R Q R I I 9 1 4 uvuos 002 1982 1983 J A C COMPRESSOR MOUNTING EXC LH8 1 8 0 1 N S BRACKET CMPR 2 N S BRACE CMPR FIR W M T DISCON BRACE CMPR FIR W A T 14046523 3 8 917 NUT HEX FLG V 1OX1 5 4 N S SUPPORT CMPR RR W M T 5 8 900 BOLT HEX M 1 iZX I 75X70 W M T I 8 900 BOLT HEX M1 X1 5X150 W A T 6 9 173 WASHER CMPR ADJ W M T 0 002 459948 N S WASHER CMPR ADJ W A T 4 7 8 900 BOLT HEX FLG M 1OX1 5X20 8 8 929 WASHER SPL STL 1 1 32 ID 1 8 OD 1 8 Q 9 0 029 BRACKET ENG MT FRT W M T A C 14081457 0 029 BRACKET ENG MT FRT W A T A C 14081458 10 8 900 BOLT HEX M 1 X1 5X35 I 11 N S SPACER CMPR RR BR W M T DISCON SPACER CMPR RR BR W A T L 14046524 12 DISCON BRACE CMPR UPR W A T Z 14046525 13 8 929 WASHER FL 7 16 ID 7 8 OD 1 8 TH I 14 8 900 BOLT HEX WA HD M1OX1 5X25 15 N S BRACKET CMPR LWR 16 N S BRACE CMPR L WR 17 1 066 BELT A C CMPR 1 18 8 900 BOLT W CON SPR WA M1OX1 5X30 19 DISCON ISUPPORT CMPR W A T 14046521 20 9 170 COMPRESSOR RADIAL COMPL 2 21 9 173 BOLT CMPR BRKT PIV 0 004 14049745 22 8 900 BOLT HEX FLG HD M1OX1 5X100 23 N S SHIM CMPR BRKT 1 5MM NOTE 1 SEE CHART IN GROUP FOR USAGE I NOTE 2 FOR ADDITIONAL USAGE SEE PARTS CATALOG I j 1992 GENERAL MOTORS SERVICE PARTS 0PERATIONS PONTIAC 22J 1 1 92 9 1 9 9 000 GROUP
