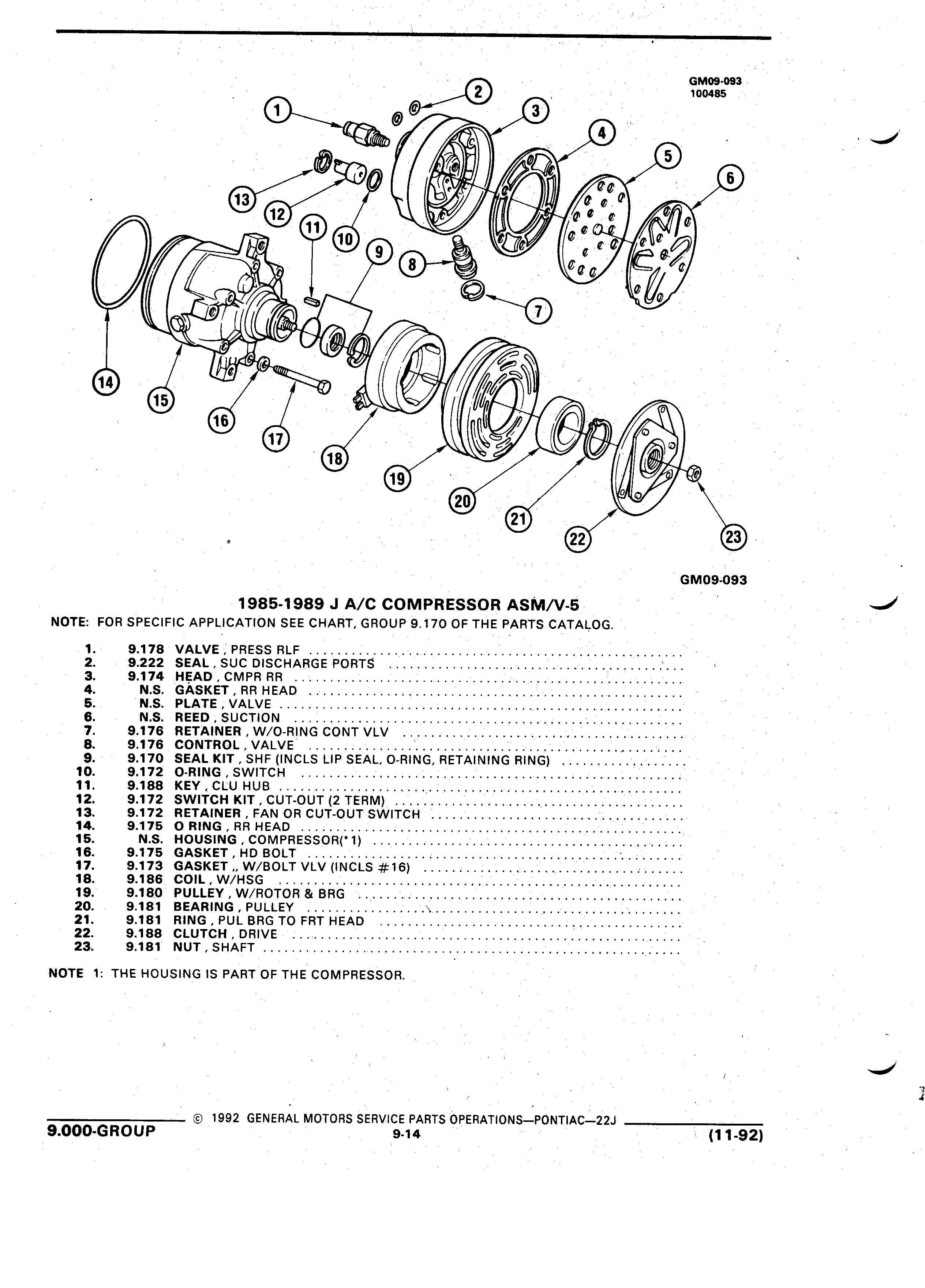

I GM09 0S3 I I 0 A I 100485 6 0 I 6 6 0 E V u as 1 V 2 0 W Z l VT 0 0 I 0 G 0 I y 0 Cm g Q 7 0 Q 0 K m s G 0 gy f 0 ly l Q ID Ia I L 7 I I I I aa K ev I jv GM09 093 1985 1989 J A C COMPRESSOR ASM V 5 I I NOTE FOR SPECIFIC APPLICATION SEE CHART GROUP 9 170 OF THE PARTS CATALOG I 1 9 178 VALVE Q PRESS RLF V I 2 9 222 SEAL SUC DISCHARGE PORTS 3 9 174 HEAD CMPR RR 4 N S GASKET RR HEAD 5 N S PLATE VALVE 6 N S REED SUCTION 7 9 176 RETAINER W O RING CONT VLV 8 9 176 CONTROL VALVE 9 9 170 SEAL KIT SHF INCLS LIP SEAL O RING RETAINING RING I 10 9 172 O RING SWITCH 11 9 188 KEY CLU HUB 12 9 172 SWITCH KIT CUT OUT 2 TERM 13 9 172 RETAINER FAN OR CUT OUT SWITCH 14 9 175 O RING RR HEAD 15 N S HOUSING COMPRESSOR 1 16 9 175 GASKET HD BOLT I 17 9 173 GASKET W BOLT VLV INCLS 16 I 18 9 186 COIL W HSG 19 9 18 0 PULLEY W ROTOR BRG 20 9 181 BEARING PULLEY 21 9 181 RING PUL BRG TO FRT HEAD 22 9 188 CLUTCH DRIVE 23 9 181 NUT SHAFT NOTE 1 THE HOUSING IS PART OF THE COMPRESSOR I wx J j 1992 GENERAL MOTORS SERVICE PARTS 0PERATIONS PONTIAC 22J 9 000 GROUP 9 14 I 11 92
