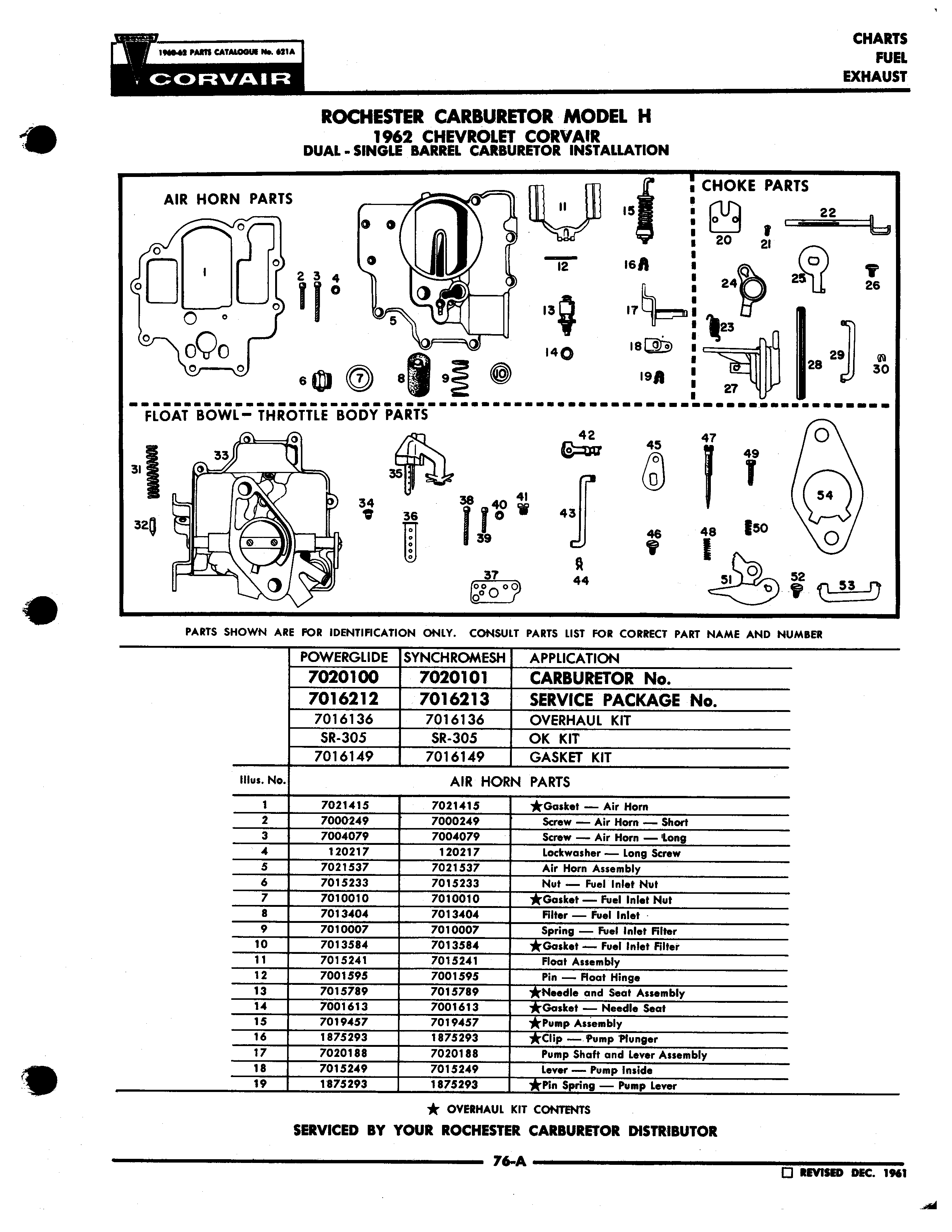

INeM PUp CATMOOUE Nw YiIA CHARTS FUEL EXHAUST ROCHESTER CARBURETOR MODEL H 1962 CHEVROLET CORVAlR DUAL SINGLE BARREL CARBURETOR INSTALLATION CHOKE PARTS AIR HORN PARTS O II IS 22 o o L 1 20 21 0 1 2 3 4 12 16A 1 250 o O O 24 26 v o 0 13 17 1 5 1 o 090 A23 14 IS 0 e 1 29 0 0 Im 6 8 9 19A 28 30 27 FL THR OTTLE BODY PAR TS OAT BOWL 0 42 4s 47 33 49 31 0 I 34 38 40 41 54 32o Q 36 43 0 46 48 50 O 139 952 O o 0 4 51 b IP J PARTS SHOWN ARE FOR IDENTIFICATION ONLY CONSULT PARTS LIST FOR CORRECT PART NAME AND NUMBER POWERGLIDE SYNCHROMESH APPLICATION 7020100 7020101 CARBURETOR No 7016212 7016213 SERVICE PACKAGE No 7016136 7016136 OVERHAUL KIT SR 305 SR 305 OK KIT 7016149 7016149 GASKET KIT Illus No AIR HORN PARTS 1 7021415 7021415 Gasket Air Horn 2 7000249 7000249 Screw Air Horn Short 3 7004079 7004079 Screw Air Horn Long 4 120217 120217 Lockwaaher Long Screw 5 7021537 7021537 Air Horn Assembly 6 7015233 7015233 Nut Fuel Inlet Nut 7 7010010 7010010 Gasket Fuel Inlet Nut 8 7013404 7013404 Filter Fuel Inlet 9 7010007 7010007 Spring Fuel Inlet Filter 10 7013584 7013584 Gasket Fuel Inlet Filter 11 7015241 7015241 Float Assembly 12 7001395 7001595 Pin Float Hinge 13 7015789 7015789 Needle and Seat Assembly 14 7001613 7001613 Gasket Needle Seat 15 7019457 7019457 Pump Assembly 16 1875293 1875293 Clip Pump Plunger 17 7020188 7020188 Pump Shaft and Lever Assembly 18 7015249 7015249 Lever Pump Inside 19 1875293 1875293 Pin Spring Pump Lover OVERHAUL KIT CONTENTS SERVICED BY YOUR ROCHESTER CARBURETOR DISTRIBUTOR
