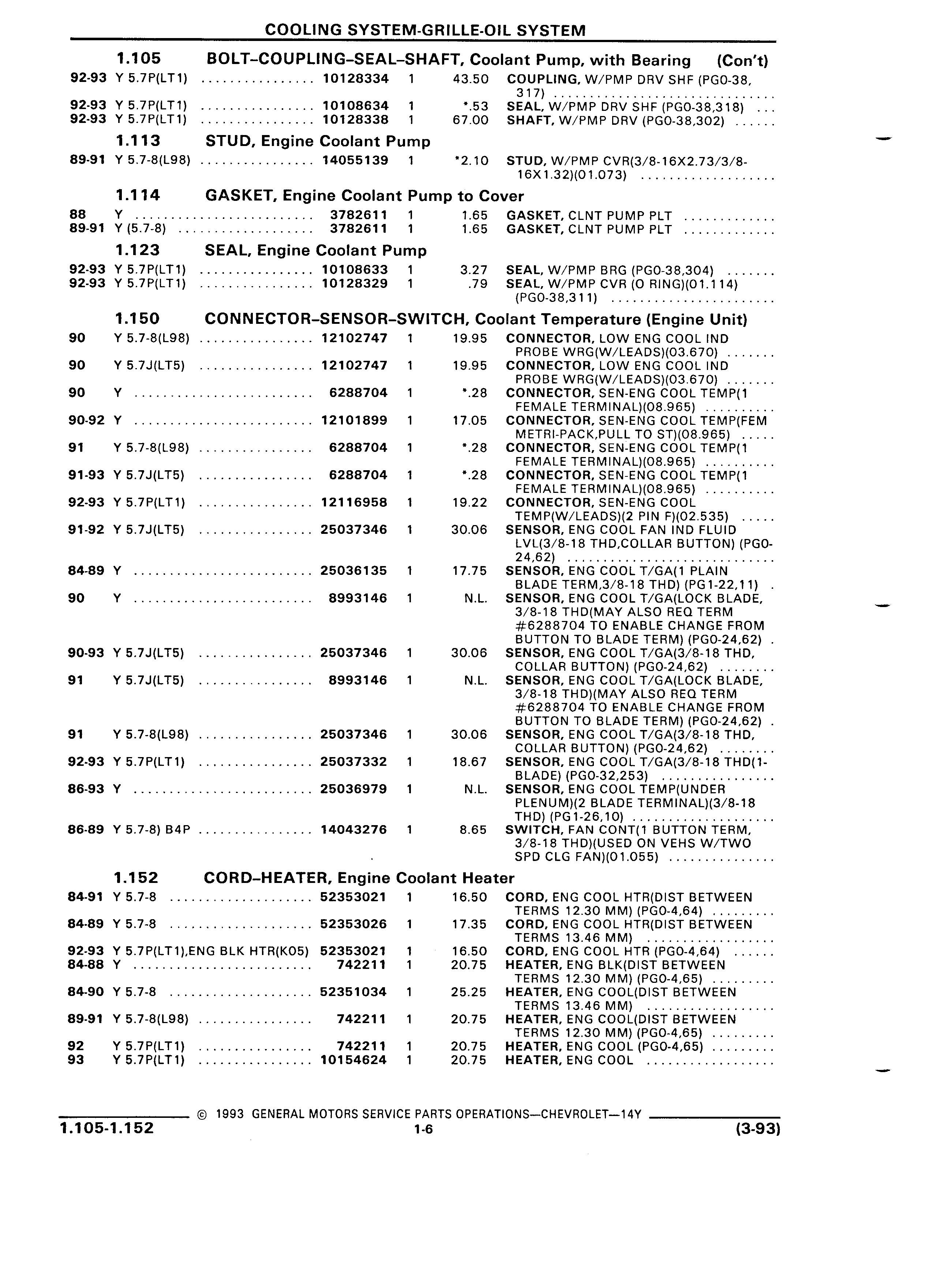

COOLING SYSTEM GRILLE OIL SYSTEM 1 105 BOLT COUPLlNG SEAL SHAFT Coolant Pump with Bearing Con t 92 93 Y 5 7P LT1 10128334 1 43 50 COUPLING W PMP DRV SHF PGO 38 317 92 93 Y 5 7P LT1 10108634 1 53 SEAL W PMP DRV SHF PGO 38 318 92 93 Y 5 7P LT1 10128338 1 67 00 SHAFT W PMP DRV PGO 38 302 1 113 STUD Engine Coolant Pump 89 91 Y 5 7 8 L98 14055139 1 2 10 STUD W PMP CVR 3 8 16X2 73 3 8 16X1 32 01 073 1 114 GASKET Engine Coolant Pump to Cover 88 Y 3782611 1 1 65 GASKET CLNT PUMP PLT 89 91 Y 5 7 8 3782611 1 1 65 GASKET CLNT PUMP PLT 1 123 SEAL Engine Coolant Pump 92 93 Y 5 7P LT1 10108633 1 3 27 SEAL W PMP BRG PGO 38 304 92 93 Y 5 7P LT1 10128329 1 79 SEAL W PMP CVR O RING 01 114 PGO 38 311 1 150 CONNECTOR SENSOR SWITCH Coolant Temperature Engine Unit 90 Y 5 7 8 L98 12102747 1 19 95 CONNECTOR LOW ENG COOL IND PROBE WRG W LEADS O3 670 90 Y 5 7J LT5 12102747 1 19 95 CONNECTOR LOW ENG COOL IND PROBE WRG W LEADS O3 670 90 Y 6288704 1 28 CONNECTOR SEN ENG COOL TEMP 1 FEMALE TERMINAL 08 965 90 92 Y 12101899 1 17 05 CONNECTOR SEN ENG COOL TEMP FEM METRI PACK PULL TO ST 08 965 91 Y 5 7 8 L98 6288704 1 28 CONNECTOR SEN ENG COOL TEMP 1 FEMALE TERM NAL 08 965 91 93 Y 5 7J LT5 6288704 1 28 CONNECTOR SEN ENG COOL TEMP 1 FEMALE TERMINAL 08 965 92 93 Y 5 7P LT1 12116958 1 19 22 CONNECTOR SEN ENG COOL TEMP W LEADS 2 PIN F 02 535 91 92 Y 5 7J LT5 25037346 1 30 06 SENSOR ENG COOL FAN IND FLUID LVL 3 8 18 THD COLLAR BUTTON PGO 24 62 84 89 Y 25036135 1 17 75 SENSOR ENG COOL T GA 1 PLAIN BLADE TERM 3 8 18 THD PG1 22 11 90 Y 8993146 1 N L SENSOR ENG COOL T GA LOCK BLADE 3 8 18 THD MAY ALSO REO TERM 6288704 TO ENABLE CHANGE FROM BUTTON TO BLADE TERM PGO 24 62 90 93 Y 5 7J LT5 25037346 1 30 06 SENSOR ENG COOL T GA 3 8 18 THD COLLAR BUTTON PGO 24 62 91 Y 5 7J LT5 8993146 1 N L SENSOR ENG COOL T GA LOCK BLADE 3 8 18 THD MAY ALSO REQ TERM 6288704 TO ENABLE CHANGE FROM BUTTON TO BLADE TERM PGO 24 62 91 Y 5 7 8 L98 25037346 1 30 06 SENSOR ENG COOL T GA 3 8 18 THD COLLAR BUTTON PGO 24 62 92 93 Y 5 7P LT1 25037332 1 18 67 SENSOR ENG COOL T GA 3 8 18 THD 1 BLADE PGO 32 253 86 93 Y 25036979 1 N L SENSOR ENG COOL TEMP UNDER PLENUM 2 BLADE TERM NAL 3 8 18 THD PG1 26 10 86 89 Y 5 7 8 B4P 14043276 1 8 65 SWITCH FAN CONT 1 BUTTON TERM 3 8 18 THD USED ON VEHS W TWO SPD CLG FAN 01 055 1 152 CORD HEATER Engine Coolant Heater 84 91 Y 5 7 8 52353021 1 16 50 CORD ENG COOL HTR D ST BETWEEN TERMS 12 30 MM PGO 4 64 84 89 Y 5 7 8 52353026 1 17 35 CORD ENG COOL HTR D ST BETWEEN TERMS 13 46 MM 92 93 Y 5 7P LT1 ENG BLK HTR K05 52353021 1 16 50 CORD ENG COOL HTR PGO 4 64 84 88 Y 742211 1 20 75 HEATER ENG BLK D ST BETWEEN TERMS 12 30 MM PGO 4 65 84 90 Y 5 7 8 52351034 1 25 25 HEATER ENG COOL D ST BETWEEN TERMS 13 46 MM 89 91 Y 5 7 8 L98 742211 1 20 75 HEATER ENG COOL D ST BETWEEN TERMS 12 30 MM PGO 4 65 92 Y 5 7P LT1 742211 1 20 75 HEATER ENG COOL PGO 4 65 93 Y 5 7P LT1 10154624 1 20 75 HEATER ENG COOL 1993 GENERAL MOTORS SERVICE PARTS 0PERATIONS CHEVROLET 14Y 1 105 1 152 1 6 3 93
