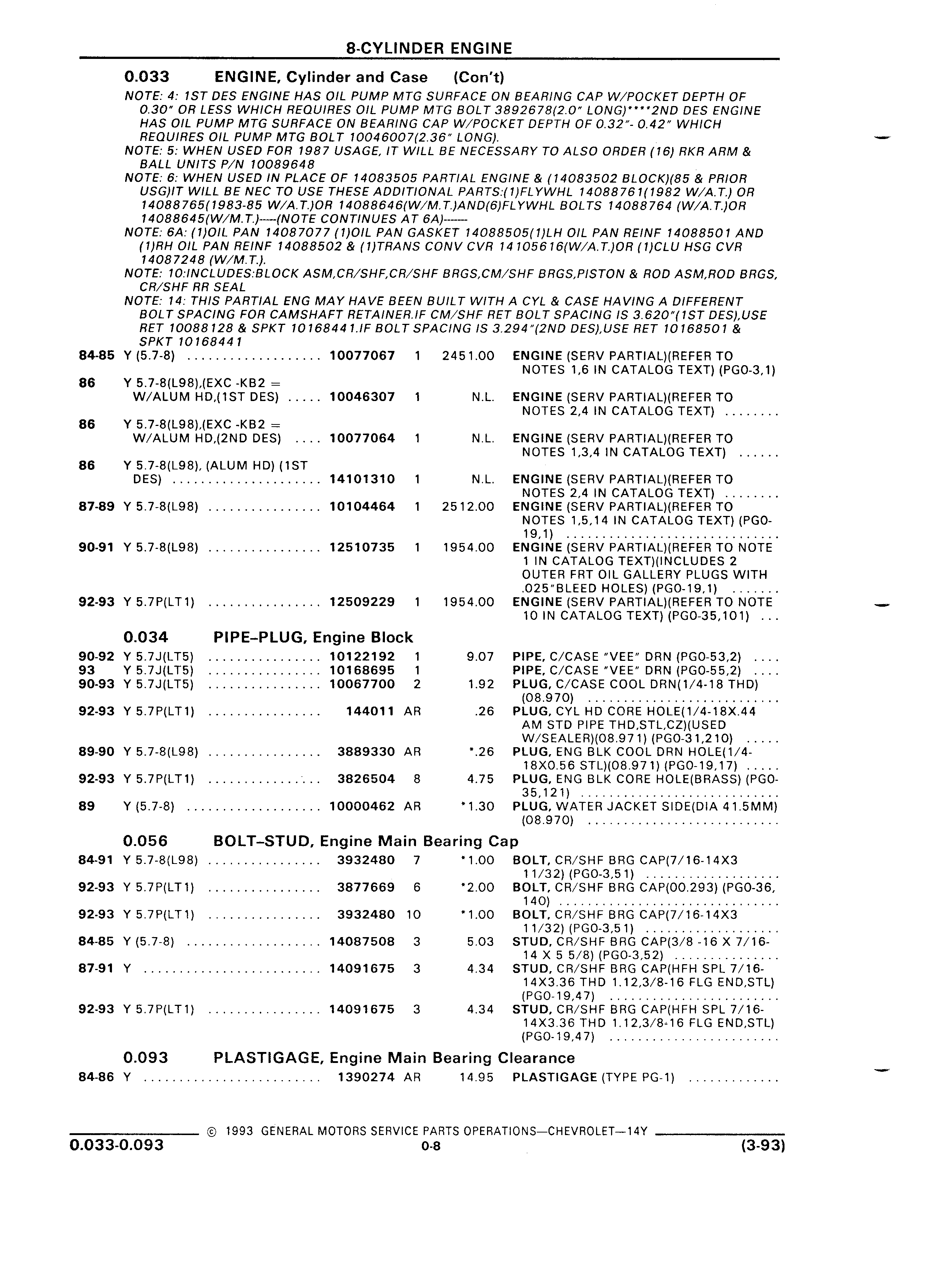

8 CYLINDER ENGINE 0 033 ENGINE Cylinder and Case C0n t NOTE 4 IST DES ENGINE HAS O L PUMP MTG SURFACE ON BEARING CAP W POCKET DEPTH OF 0 30 OR LESS WHICH REQUIRES OIL PUMP MTG BOLT 3892678 2 0 LONG 2ND DES ENGINE HAS OIL PUMP MTG SURFACE ON BEARING CAP W POCKET DEPTH OF 0 32 0 42 WHICH REOU RES OIL PUMP MTG BOLT 10046007 2 36 LONG NOTE 5 WHEN USED FOR 1987 USAGE IT W LL BE NECESSARY TO ALSO ORDER 16 RKR ARM BALL UNITS P N 10089648 NOTE 6 WHEN USED IN PLACE OF 14083505 PARTIAL ENGINE 14083502 BLOCK 85 PR OR USG IT WILL BE NEC TO USE THESE ADDITIONAL PARTS 1 FLYWHL 14088761 1982 W A T OR 14088765 1983 85 W A T OR 14088646 W M T AND 6 FLYWHL BOLTS 14088764 W A T OR 14088645 W M T NOTE CONTINUES AT 6A NOTE 6A 1 OIL PAN 14087077 1 OIL PAN GASKET 14088505 1 LH OIL PAN REINF 14088501 AND 1 RH OIL PAN REINF 14088502 1 TRANS CONV CVR 14105616 W A T OR 1 CLU HSG CVR 14087248 W M T NOTE 10 INCLUDES BLOCK ASM CR SHF CR SHF BRGS CM SHF BRGS P STON ROD ASM ROD BRGS CR SHF RR SEAL NOTE 14 THIS PARTIAL ENG MAY HAVE BEEN BUILT WITH A CYL CASE HAVING A DIFFERENT BOLT SPACING FOR CAMSHAFT RETAINER IF CM SHF RET BOLT SPACING IS 3 620 1ST DES USE RET 10088128 SPKT 10168441 IF BOLT SPAC NG IS 3 294 2ND DES USE RET 10168501 SPKT 10168441 84 85 Y 5 7 8 10077067 1 2451 00 ENGINE SERV PARTIAL REFER TO NOTES 1 6 IN CATALOG TEXT PGO 3 1 86 Y 5 7 8 L98 EXC KB2 W ALUM HD 1ST DES 10046307 1 N L ENGINE SERV PARTIAL REFER TO NOTES 2 4 IN CATALOG TEXT 86 Y 5 7 8 L98 EXC KB2 W ALUM HD 2ND DES 10077064 1 N L ENGINE SERV PARTIAL REFER TO NOTES 1 3 4 IN CATALOG TEXT 86 Y 5 7 8 L98 ALUM HD IST DES 14101310 1 N L ENGINE SERV PART AL REFER TO NOTES 2 4 IN CATALOG TEXT 87 89 Y 5 7 8 L98 10104464 1 2512 00 ENGINE SERV PARTIAL REFER TO NOTES 1 5 14 IN CATALOG TEXT PGO 19 1 90 91 Y 5 7 8 L98 12510735 1 1954 00 ENGINE SERV PARTIAL REFER TO NOTE 1 IN CATALOG TEXT INCLUDES 2 OUTER FRT OIL GALLERY PLUGS WITH 025 BLEED HOLES PGO 19 1 92 93 Y 5 7P LT1 12509229 1 1954 00 ENGINE SERV PARTIAL REFER TO NOTE 10 IN CATALOG TEXT PGO 35 101 0 034 PIPE PLUG Engine Block 90 92 Y 5 7J LT5 10122192 1 9 07 PIPE C CASE VEE DRN PGO 53 2 93 Y 5 7J LT5 10168695 1 PIPE C CASE VEE DRN PGO 55 2 90 93 Y 5 7J LT5 10067700 2 1 92 PLUG C CASE COOL DRN 1 4 18 THD 08 970 92 93 Y 5 7P LT1 144011 AR 26 PLUG CYL HD CORE HOLE 1 4 18X 44 AM STD PIPE THD STL CZ USED W SEALER 08 971 PGO 31 210 89 90 Y 5 7 8 L98 3889330 AR 26 PLUG ENG BLK COOL DRN HOLE 1 4 18XO 56 STL O8 971 PGO 19 17 92 93 Y 5 7P LT1 L 3826504 8 4 75 PLUG ENG BLK CORE HOLE BRASS PGO 35 121 89 Y 5 7 8 10000462 AR 1 30 PLUG WATER JACKET SIDE DIA 41 5MM 08 970 0 056 BOLT STUD Engine Main Bearing Cap 84 91 Y 5 7 8 L98 3932480 7 1 00 BOLT CR SHF BRG CAP 7 16 14X3 11 32 PGO 3 51 92 93 Y 5 7P LT1 3877669 6 2 00 BOLT CR SHF BRG CAP 00 293 PGO 36 140 92 93 Y 5 7P LT1 3932480 10 1 00 BOLT CR SHF BRG CAP 7 16 14X3 11 32 PGO 3 51 84 85 Y 5 7 8 14087508 3 5 03 STUD CR SHF BRG CAP 3 8 16 X 7 16 14 X 5 5 8 PGO 3 52 87 91 Y 14091675 3 4 34 STUD CR SHF BRG CAP HFH SPL 7 16 14X3 36 THD 1 12 3 8 16 FLG END STL PGO 19 47 92 93 Y 5 7P LT1 14091675 3 4 34 STUD CR SHP BRG CAP HFH SPL 7 16 14X3 36 THD 1 12 3 8 16 FLG END STL PGO 19 47 0 093 PLASTIGAGE Engine Main Bearing Clearance 84 86 Y 1390274 AR 14 95 PLASTIGAGE TYPE PG 1 V T 1993 GENERAL MOTORS SERVICE PARTS 0PERATIONS CHEVROLET 14Y 0 033 0 093 0 8 3 93
