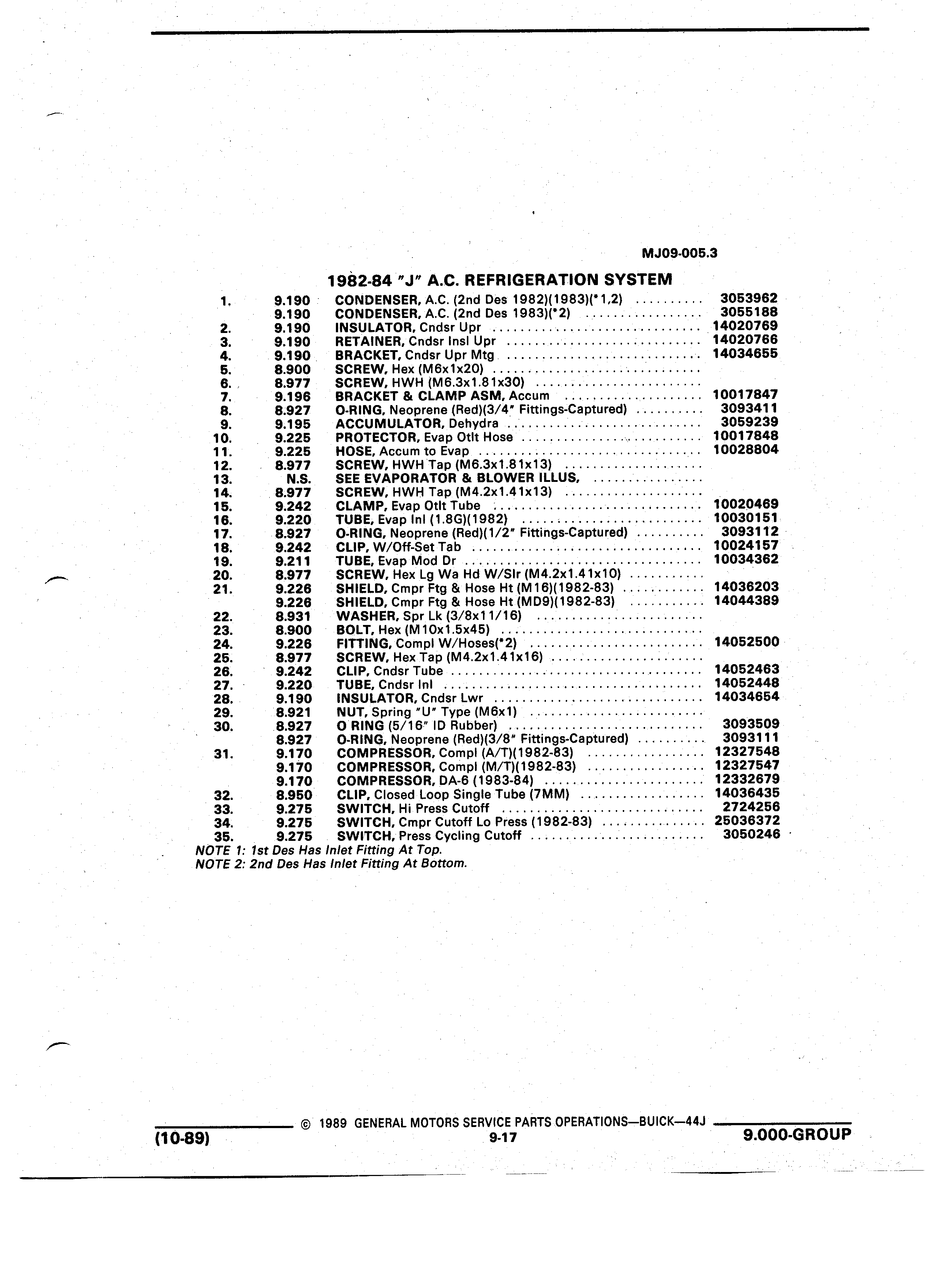

A MJ09 005 3 1982 84 J A C REFRIGERATION SYSTEM I 1 9 190 CONDENSER A C 2nd Des 1982 1983 1 2 3053962 9 190 CONDENSER A C 2nd Des 1983 2 3055188 2 9 190 INSULATOR Cndsr Upr 14020769 3 9 190 RETAINER Cndsr Insl Upr 14020766 i 4 9 190 BRACKET Cndsr Upr Mtg i 14034655 5 8 900 SCREW Hex M6x1x20 6 8 977 SCREW HWH M6 3x l 81x30 7 9 196 BRACKET CLAMP ASM Accum 10017847 I 8 6 927 O RING Neoprene Red 3 4f Fittings Captured 3093411 9 9 195 ACCUMULATOR Dehydra 3059239 10 I 9 225 PROTECTOR Evap Otlt Hose 10017848 11 9 225 HOSE Accum to Evap y 10028804 12 I 8 977 SCREW HWHITap M6 3x1 81x13 13 N S SEE EVAPORATOR BLOWER ILLUS 14 i 8 977 SCREW HWH Tap M4 2x1 41x13 15 9 242 CLAMP Evap Otlt Tube 10020469 I 16 9 220 TUBE Evap lnl 1 8G 1982 10030151 17 8 927 O RING Neoprene Red 1 2 Fittings Captured 3093112 I 18 9 242 CLIP W Off Set Tab 10024157 19 9 211 TUBE Evap Mod Dr 10034362 20 8 977 SCREW Hex Lg Wa Hd W Slr M4 2x1 41x10 I 21 9 226 SHIELD Cmpr Ftg Hose Ht M16 1982 83 14036203 I 9 226 SHIELD Cmpr Ftg Hose Ht MD9 1982 83 14044389 I 22 8 931 WASHER Spr Lk 3 8x1 1 16 23 6 900 BOLT Hex M 10x1 5x45 24 9 226 FITTING Compl W Hoses 2 14052500 25 8 977 SCREW Hex Tap M4 2x1 41x16 26 9 242 CLIP Cndsr Tube 14052463 27 r 9 220 TUBE Cndsr Inl 14052448 28 9 190 INSULATOR Cndsr Lwr 14034654 29 8 921 NUT Spring U Type M6x1 I 30 8 927 ORING 5 16 ID Rubber 3093509 8 927 0 RING Neoprene Fled 3 8 Fittings Captured 3093111 31 9 170 COMPRESSOR Compl A T 1982 83 12327548 9 170 COMPRESSOR Compl M T 1982 83 12327547 9 170 COMPRESSOR DA 6 1983 84 12332679 32 8 950 CLIP Closed Loop Single Tube 7MM 14036435 I 33 9 275 SWITCH Hi Press Cutoff 2724256 34 9 275 SWITCH Cmpr Cutoff Lo Press 1982 83 25036372 A 35 9 275 SWITCH Press Cycling Cutoff 3050246 NOTE 1 1st Des Has Inlet Fitting At Top NOTE 2 2nd Des Has Inlet Fitting At Bottom t 1989 GENERAL MOTORS SERVICE PARTS OPEFlAT ONS BU CK 44J 10 89 9 17 9 000 GROUP
