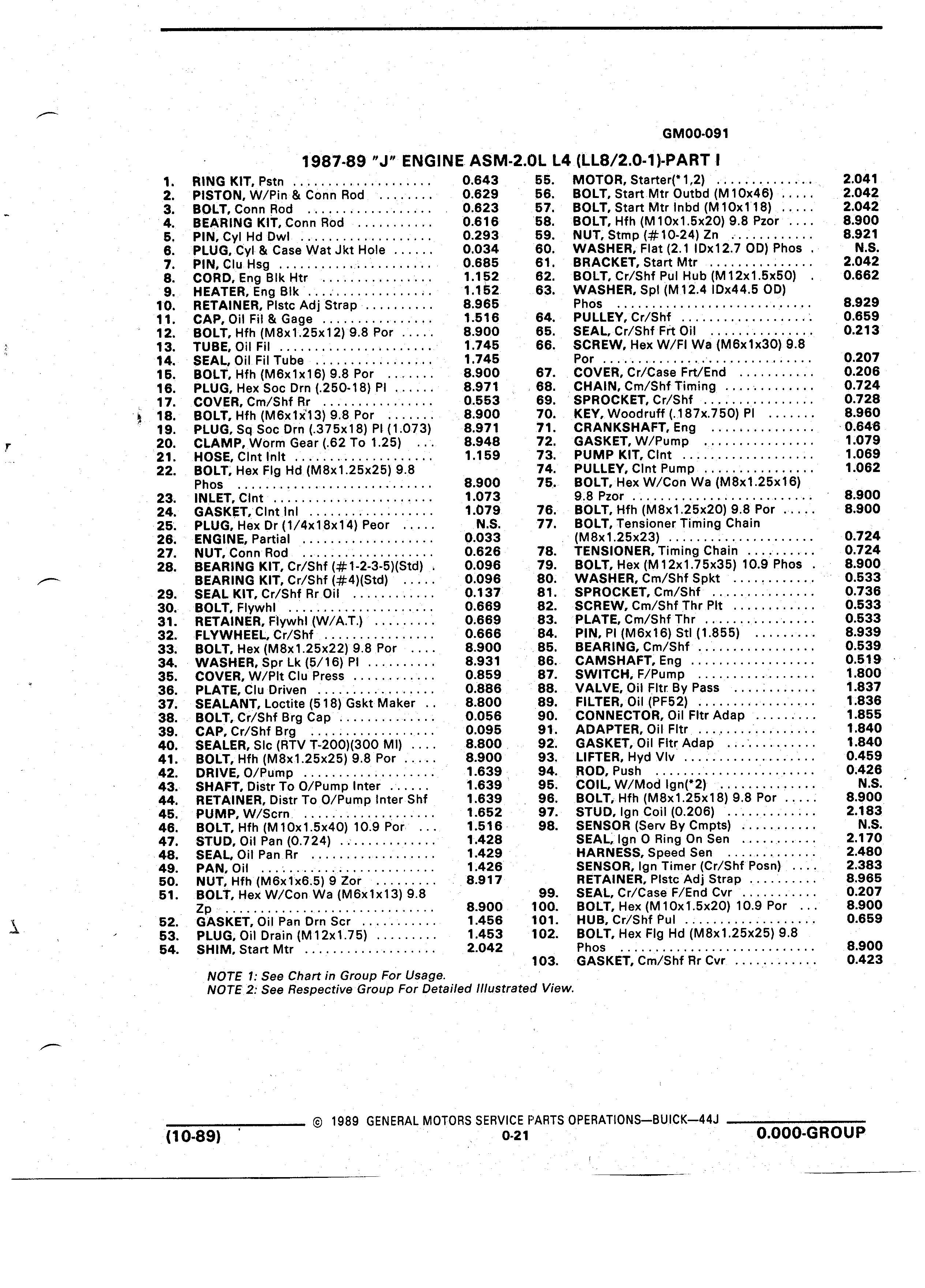

r GM00 091 1987 89 J ENGINE ASM 2 0L L4 LL8 2 0 1 PART I 1 RING KIT Pstn 0 643 55 MOTOR Starter 1 2 2 041 2 PISTON W Pin Conn Rod 0 629 56 BOLT Start Mtr Outbd M 10x46 2 042 3 BOLT Conn Rod 0 623 57 BOLT Start Mtr Inbd M10x1 18 2 042 4 BEARING KIT Conn Rod 0 616 58 BOLT Hfh M10x1 5x20 9 8 Pzor 8 900 5 PIN Cyl Hd Dwl 0 293 59 NUT Stmp IO 24 Zn 8 921 6 PLUG Cyl Case Wat Jkt Hole 0 034 60 WASHER Flat 2 1 lDx12 7 OD Phos N S 7 PIN Clu Hsg 0 685 61 BRACKET Start Mtr 2 042 8 CORD Eng Blk Htr 1 152 62 BOLT Cr Shf Pul Hub M12x1 5x50 0 662 9 HEATER Eng Blk V 1 152 63 WASHER Spl M12 4 Dx44 5 OD 10 RETAINER Plstc Adj Strap 8 965 Phos 8 929 11 CAP Oil Fil Gage 1 516 64 PULLEY Cr Shf 0 659 12 BOLT Hfh M8x1 25x12 9 8 Por 8 900 65 SEAL Cr Shf Frt Oil 0 213 13 TUBE Oil Fil 1 745 66 SCREW Hex W Fl Wa M6x1x30 9 8 14 SEAL Oil Fil Tube 1 745 Por 0 207 15 BOLT Hfh M6x1x16 9 8 Por 8 900 67 COVER Cr Case Frt End 0 206 16 PLUG Hex Soc Drn 250 18 Pl 8 971 68 CHAIN Cm Shf Timing 0 724 17 COVER Cm Shf Rr 0 553 69 SPROCKET Cr Shf 0 728 g 18 BOLT Hfh M6x1x 13 9 8 Por 8 900 70 KEY Woodruff 187x 750 PI 8 960 I 19 PLUG Sq Soc Drn 375x18 Pl 1 073 8 971 71 CRANKSHAFT Eng 0 64 6 y 20 CLAMP Worm Gear 62 To 1 25 8 948 72 GASKET W Pump 1 079 21 HOSE Clnt lnlt 1 159 73 PUMP KIT Clnt 1 069 22 BOLT Hex Flg Hd M8x1 25x25 9 8 74 PULLEY Clnt Pump 1 062 Phos 8 900 75 BOLT Hex W Con Wa M8x1 25x16 23 INLET Clnt 1 073 9 8 Pzor 8 900 24 GASKET C nt lnl 1 079 76 BOLT Hfh M8x1 25x20 9 8 Por 8 900 25 PLUG Hex Dr 1 4x18x14 Peor N S 77 BOLT Tensioner Timing Chain 26 ENGINE Partial 0 033 M8x1 25x23 0 724 27 NUT Conn Rod 0 626 78 TENSIONER Timing Chain 0 724 28 BEARING KIT Cr Shf 1 2 3 5 Std 0 096 79 BOLT Hex M 1 2x1 75x35 10 9 Phos 8 900 BEARING KIT Cr Shf 4 Std 0 096 80 WASHER Cm Shf Spkt 0 533 29 SEAL KIT Cr Shf Rr Oil 0 137 81 SPROCKET Cm Shf 0 736 30 BOLT Flywhl 0 669 82 SCREW Cm Shf Thr Plt 0 533 31 RETAINER Flywhl W A T 0 669 83 PLATE Cm Shf Thr 0 533 32 FLYWHEEL Cr Shf 0 666 84 PIN Pl M6x16 Stl 1 855 8 939 33 BOLT Hex M8x1 25x22 9 8 Por 8 900 85 BEARING Cm Shf 0 539 34 WASHER Spr Lk 5 16 Pl 8 931 86 CAMSHAFT Eng 0 519 j 35 COVER W Plt Clu Press 0 859 87 SWITCH F Pump 1 800 36 PLATE Clu Driven 0 886 88 VALVE Oil Fltr By Pass 1 837 I 37 SEALANT Loctite 518 Gskt Maker 8 800 89 FILTER Oil PF52 1 836 38 BOLT Cr Shf Brg Cap 0 056 90 CONNECTOR Oil Fltr Adap 1 855 39 CAP Cr Shf Brg 0 095 91 ADAPTER Oil Fltr 1 840 40 SEALER Slc RTV T 200 30O Ml 8 800 92 GASKET Oil Fltr Adap 1 840 41 BOLT Hfh M8x1 25x25 9 8 Por 8 900 93 LIFTER Hyd Vlv 0 459 42 DRIVE O Pump I 1 639 94 ROD Push l 0 426 43 SHAFT Distr To O Pump Inter 1 639 95 COIL W Mod gn 2 N S 44 RETAINER Distr To O Pump Inter Shf 1 639 96 BOLT Hfh M8x1 25x18 9 8 Por 8 900 45 PUMP W Scrn 1 652 97 STUD lgn Coil 0 206 2 183 46 BOLT Hfh M10x1 5x40 10 9 Por 1 516 98 SENS OR Serv By Cmpts N S 47 STUD Oil Pan 0 724 1 428 SEAL lgn O Ring On Sen 2 170 48 SEAL Oil Pan Rr 1 429 HARNESS Speed Sen 2 480 49 PAN Oil 1 426 SENSOR lgn Timer Cr Shf Posn 2 383 50 NUT Hfh M6x1x6 5 9 Zor 8 917 RETAINER Plstc Adj Strap 8 965 51 BOLT Hex W Con Wa M6x1x13 9 8 99 SEAL Cr Case F End Cvr 0 207 Zp 8 900 100 BOLT Hex M10x1 5x20 10 9 Por 8 900 X V 52 GASKET Oil Pan Drn Scr 1 456 101 HUB Cr Shf Pul 0 659 53 PLUG Oil Drain Ml2x1 75 1 453 102 BOLT Hex Flg Hd M8x1 25x25 9 8 54 SHIM Start Mtr 2 042 Phos 8 900 103 GASKET Cm Shf Rr Cvr A 0 423 NOTE 1 See Chart in Group For Usage NOTE 2 See Respective Group For Detailed Illustrated View 7 j 1989 GENERAL MOTORS SERVICE PARTS OPERATlONS BU CK 44J t 10 89 I 0 21 0 000 GROUP
