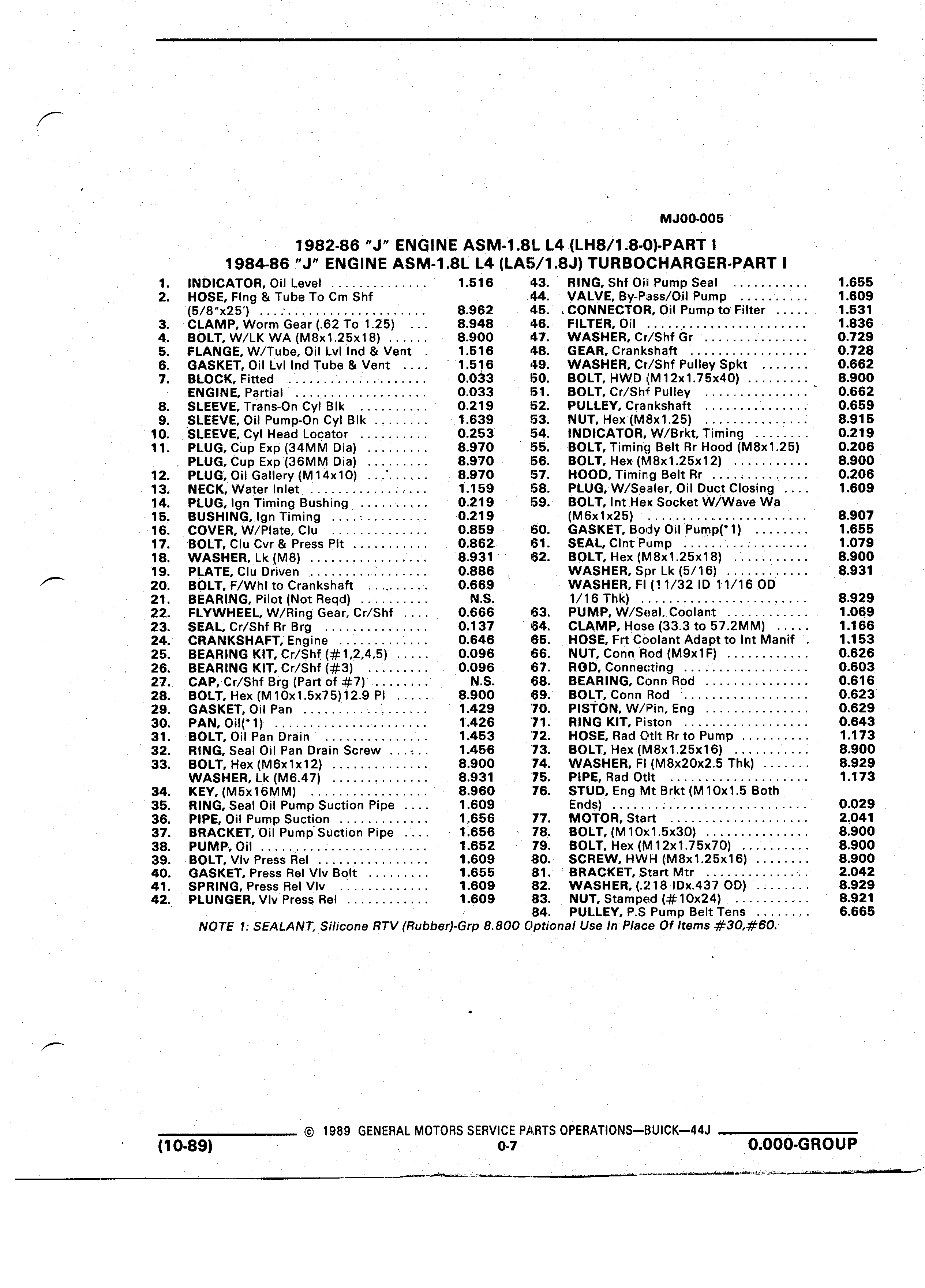

MJ00 005 1982 86 J ENGINE ASM 1 8L L4 LH8 1 8 0 PART I 1984 86 J ENGINE ASM 1 8L L4 LA5 1 8J TURBOCHARGER PART I 1 INDICATOR Oil Level 1 516 43 RING Shf Oil Pump Seal 1 655 2 HOSE Flng Tube To Cm Shf 44 VALVE By Pass Oil Pump 1 609 5 8 x25 8 962 45 CONNECTOR Oil Pump to Filter 1 531 3 CLAMP Worm Gear 62 To 1 25 8 948 46 FILTER Oil 1 836 4 BOLT W LK WA M8x1 25x18 8 900 47 WASHER Cr Shf Gr 0 729 5 FLANGE W Tube Oil Lvl Ind Vent 1 516 48 GEAR Crankshaft 0 728 6 GASKET Oil Lvl Ind Tube Vent P 1 516 49 WASHER Cr Shf Pulley Spkt 0 662 7 BLOCK Fitted 0 033 50 BOLT HWD M12x1 75x40 8 900 ENGINE Partial 0 033 51 BOLT Cr Shf Pulley 0 662 8 SLEEVE Trans On Cyl Blk 0 219 52 PULLEY Crankshaft 0 659 9 SLEEVE Oil Pump On Cyl Blk 1 639 53 NUT Hex M8x1 25 8 915 l 10 SLEEVE Cyl Head Locator 0 253 54 INDICATOR W Brkt Timing 0 219 11 PLUG Cup Exp 34MM Dia 8 970 I 55 BOLT Timing Belt Rr Hood M8x1 25 0 206 PLUG Cup Exp 36MM Dia 8 970 56 BOLT Hex M8x1 25x12 8 900 12 PLUG Oil Gallery lVl14x10 8 970 57 HOOD Timing Belt Rr 0 206 13 NECK Water Inlet 1 159 58 PLUG W Sealer Oil Duct Closing 1 609 14 PLUG lgn Timing Bushing 0 219 59 BOLT Int Hex Socket W Wave Wa 15 BUSl lING lgn Timing 0 219 M6x1x25 8 907 16 COVER W Plate Clu 0 859 60 GASKET Body Oil Pump 1 1 655 17 BOLT Clu Cvr Press Plt 0 862 61 SEAL Clnt Pump 1 079 18 WASHER Lk M8 8 931 62 BOLT Hex M8x1 25x18 8 900 19 PLATE Clu Driven I 0 886 WASHER Spr Lk 5 16 8 931 20 BOLT F Whl to Crankshaft 0 669 WASHER FI 11 32 ID 11 16 OD 21 BEARING Pilot Not Reqd N S 1 16 Thk 8 929 22 FLYWHEEL W Ring Gear Cr Shf 0 666 63 PUMP W Seal Coolant 1 069 23 SEAL Cr Shf Rr Brg 0 137 64 CLAMP Hose 33 3 to 57 2MM 1 166 24 CRANKSHAFT Engine 0 646 65 HOSE Frt Coolant Adapt to Int Manif 1 153 25 BEARING KIT Cr Shf 1 2 4 5 0 096 66 NUT Conn Rod M9x1 F 0 626 26 BEARING KIT Cr Shf 3 Q 0 096 67 RGD Connecting 0 603 V 27 CAP Cr Shf Brg Part of 7 N S 68 BEARING Conn Rod 0 616 28 BOLT Hex M10x1 5x75 12 9 Pl 8 900 69 BOLT Conn Rod 0 623 29 GASKET Oil Pan I 1 429 70 PISTON W Pin Eng 0 629 30 PAN Oil 1 1 426 71 RING KIT Piston 0 643 31 BOLT Oil Pan Drain 1 453 72 HOSE Rad Otlt Rr to Pump 1 173 32 RING Seal Oil Pan Drain Screw 1 456 73 BOLT Hex M8x1 25x16 8 900 33 BOLT Hex M6x1x12 8 900 74 WASHER Fl M8x20x2 5 Thk 8 929 WASHER Lk M6 47 8 931 75 PIPE Rad Otlt 1 173 34 KEY M5x16MM 8 960 76 STUD Eng Mt Brkt M 10x1 5 Both 35 RING Seal Oil Pump Suction Pipe 1 609 Ends 0 029 36 PIPE Oil Pump Suction 1 656 77 MOTOR Start 2 041 37 BRACKET Oil Pump Suction Pipe 1 656 78 BOLT M 10x1 5x30 8 900 38 PUMP Oil 1 652 79 BOLT Hex M 12x1 75x70 8 900 39 BOLT Vlv Press Rel 1 609 80 SCREW HWH M8x 1 25x16 8 900 40 GASKET Press Rel Vlv Bolt 1 655 81 BRACKET Start Mtr 2 042 41 SPRING Press Rel Vlv 1 609 82 WASHER 218 lDx 437 OD 8 929 42 PLUNGER Vlv Press Rel 1 609 83 NUT Stamped 10x24 8 921 B4 PULLEY P S Pump Belt Tens 6 665 NOTE 1 SEALANT Silicone RTV Rubber Grp 8 800 Optional Use ln Place Of Items 30 60 1989 GENERAL MOTORS SERVICE PARTS OPERATIONS BU CK 44J t t 10 89 0 7 0 000 GROUP i FL i r w4 L a a i i
