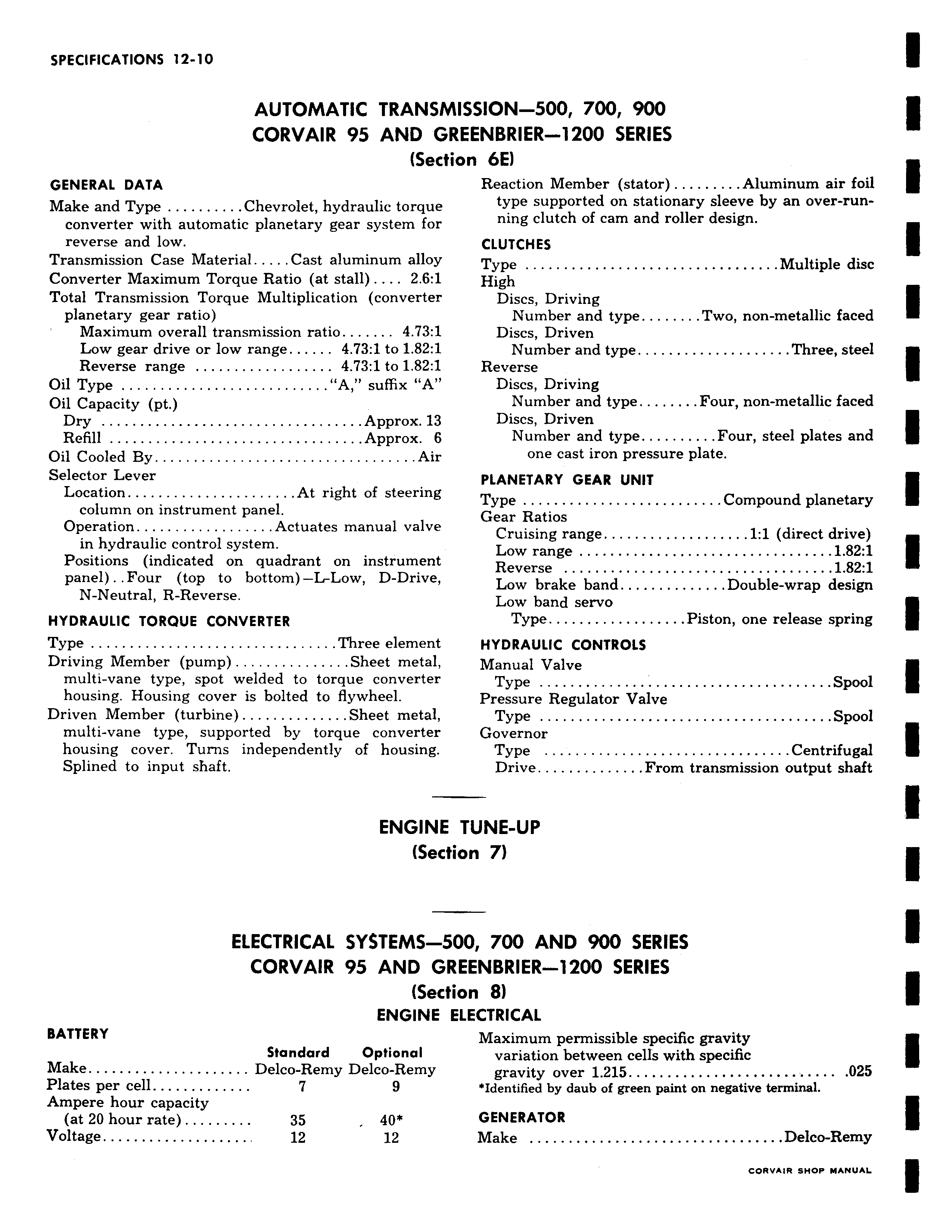

AUTOMATIC TRANSM CORVAIR 95 AND GE Secti GENERAL DATA Make and Type Chevrolet hydraulic torque converter with automatic planetary gear system for reverse and low Transmission Case Material Cast aluminum alloy Converter Maximum Torque Ratio at stall 2 6 1 Total Transmission Torque Multiplication converter planetary gear ratio Maximum overall transmission ratio 4 73 1 Low gear drive or low range 4 73 1 to 1 82 1 Reverse range 4 73 1 to 1 82 1 Oil Type A suffix A Oil Capacity pt Dry Approx l3 Refill Approx 6 Oil Cooled By Air Selector Lever Location At right of steering column on instrument panel Operation Actuates manual valve in hydraulic control system Positions indicated on quadrant on instrument panel Four top to bottom L Low D Drive N Neutral R Reverse HYDRAULIC TORQUE CONVERTER Type Three element Driving Member pump Sheet metal multi vane type spot welded to torque converter housing Housing cover is bolted to flywheel Driven Member turbine Sheet metal multi vane type supported by torque converter housing cover Turns independently of housing Splined to input shaft ENGINE Sectl ELECTRICAL SYSTEMS 5 CORVAIR 95 AND GF Sect ENGINE I BATTERY Standard Optional Make Delco Remy Delco Remy Plates per cell 7 9 Ampere hour capacity at 20 hour rate 35 40 Voltage 12 12 ISSION 500 700 900 tEENBRIER 1200 SERIES on 6E Reaction Member stator Aluminum air foil type supported on stationary sleeve by an over running clutch of cam and roller design CLUTCHES Type Multiple disc High Discs Driving Number and type Two non metallic faced Discs Driven Number and type Three steel Reverse Discs Driving Number and type Four non metallic faced Discs Driven Number and type Four steel plates and one cast iron pressure plate PLANETARY GEAR UNIT Type Compound planetary Gear Ratios Cruising range 1 1 direct drive Low range 1 82 1 Reverse 1 82 1 Low brake band Double wrap design Low band servo Type Piston one release spring HYDRAULIC CONTROLS Manual Valve Type Spool Pressure Regulator Valve Type Spool Governor Type Centrifugal Drive From transmission output shaft TUNE UP on 7 D0 700 AND 900 SERIES EENBRIER 1200 SERIES on 8 ELECTRICAL Maximum permissible specific gravity variation between cells with specific gravity over 1 215 025 Identified by daub of green paint on negative terminal GENERATOR Make Delco Remy
