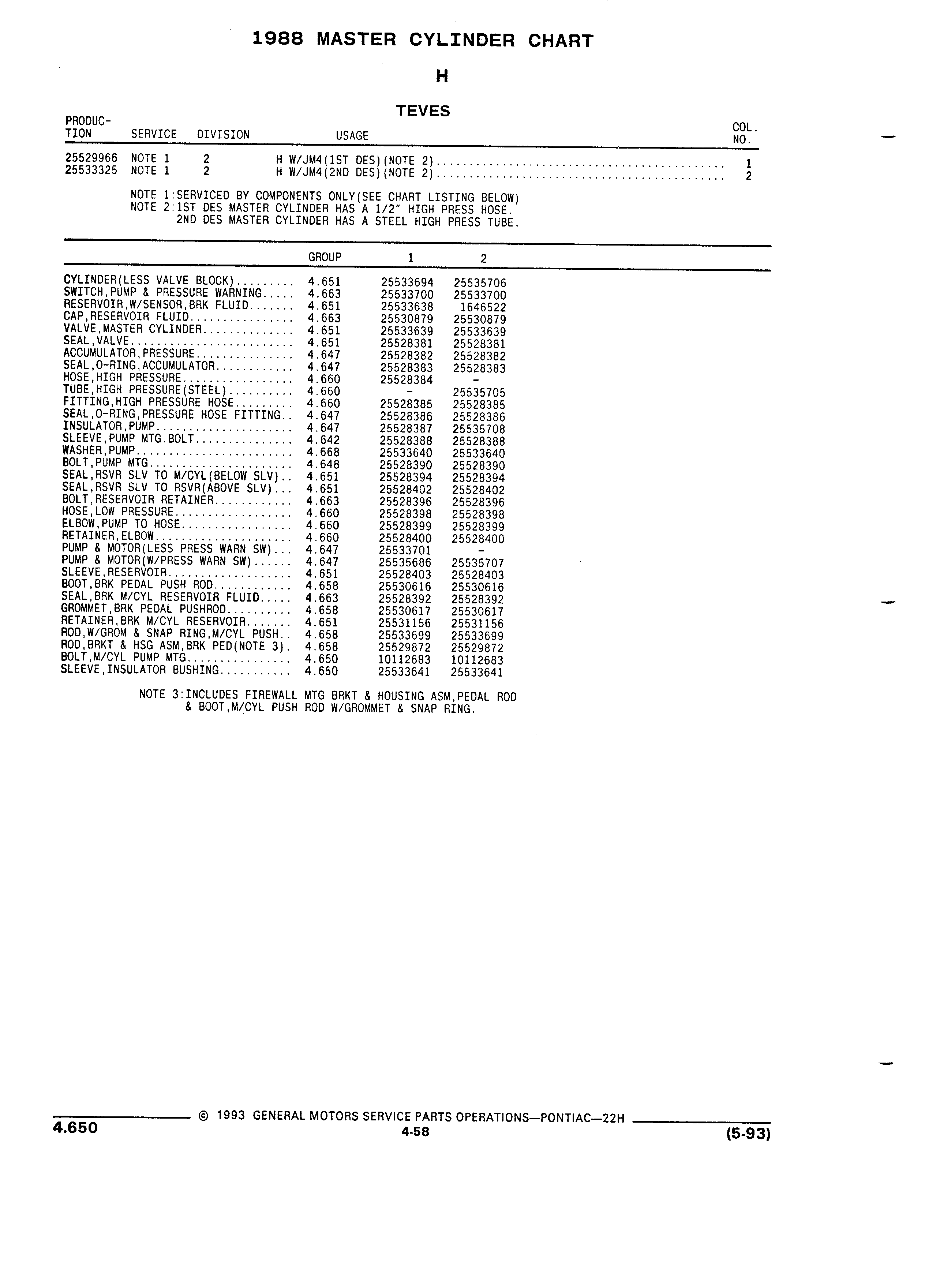

1988 MASTER CYLINDER CHART H TEVES PRODUC COL TION SERVICE DIVISION USAGE NO 25529966 NOTE 1 2 H W JM4 1ST DES NOTE 2 1 25533325 NOTE 1 2 H W JM4 2ND DES NOTE 2 2 NOTE 1 SERVICED BY COMPONENTS ONLY SEE CHART LISTING BELOW NOTE 2 1ST DES MASTER CYLINDER HAS A 1 2 HIGH PRESS HOSE 2ND DES MASTER CYLINDER HAS A STEEL HIGH PRESS TUBE GROUP 1 2 CYLINDER LESS VALVE BLOCK 4 651 25533694 25535706 SWITCH PUMP PRESSURE WARNING 4 663 25533700 25533700 RESERVOIR W SENSOR BRK FLUID 4 651 25533638 1646522 CAP RESERVOIR FLUID 4 663 25530879 25530879 VALVE MASTER CYLINDER 4 651 25533639 25533639 SEAL VALVE 4 651 25528381 25528381 ACCUMULATOR PRESSURE 4 647 25528382 25528382 SEAL O RING ACCUMULATOR 4 647 25528383 25528383 HOSE HIGH PRESSURE 4 660 25528384 TUBE HIGH PRESSURE STEEL 4 660 25535705 FITTING HIGH PRESSURE HOSE 4 660 25528385 25528385 SEAL 0 RING PRESSURE HOSE FITTING 4 647 25528386 25528386 INSULATOR PUMP 4 647 25528387 25535708 SLEEVE PUMP MTG BOLT 4 642 25528388 25528388 WASHER PUMP 4 668 25533640 25533640 BOLT PUMP MTG 4 648 25528390 25528390 SEAL RSVR SLV T0 M CYL BELOW SLV 4 651 25528394 25528394 SEAL RSVR SLV TO RSVR ABOVE SLV 4 651 25528402 25528402 BOLT RESERVOIR RETAINER 4 663 25528396 25528396 HOSE LOW PRESSURE 4 660 25528398 25528398 ELBOW PUMP T0 HOSE 4 660 25528399 25528399 RETAINER ELBOW 4 660 25528400 25528400 PUMP MOTOR LESS PRESS WARN SW 4 647 25533701 PUMP MOTOR W PRESS WARN SW 4 647 25535686 25535707 SLEEVE RESERVOIR 4 651 25528403 25528403 BOOT BRK PEDAL PUSH ROD 4 658 25530616 25530616 SEAL BRK M CYL RESERVOIR FLUID 4 663 25528392 25528392 GROMMET BRK PEDAL PUSHRO0 4 658 25530617 25530617 RETAINER BRK M CYL RESERVOIR 4 651 25531156 25531156 ROD W GROM SNAP RING M CYL PUSH 4 658 25533699 25533699 ROD BRKT HSG ASM BRK PED NOTE 3 4 658 25529872 25529872 BOLT M CYL PUMP MTG 4 650 10112683 10112683 SLEEVE INSULATOR BUSHING 4 650 25533641 25533641 NOTE 3 INCLUDES FIREWALL MTG BRKT HOUSING ASM PEDAL ROD BOOT M CYL PUSH ROD W GROMMET SNAP RING j 1993 GENERAL MOTORS SERVICE PARTS OPERATlONS PONTlAC 22H 4 650 4 58 5 93
