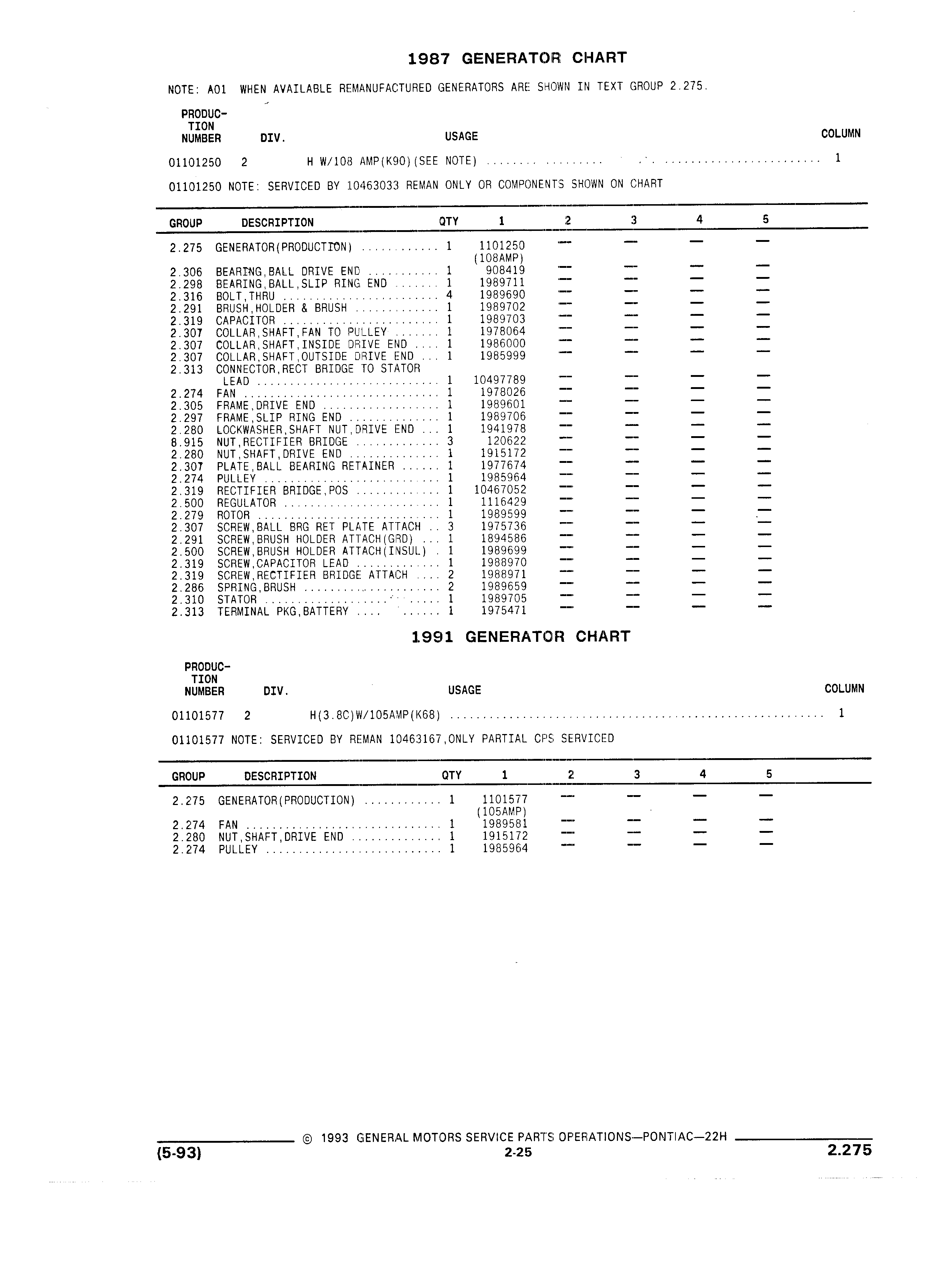

1987 GENERATOR CHART NOTE A01 WHEN AVAILABLE REMANUEACTURED GENERATORS ARE SHOWN IN TEXT GROUP 2 275 PRODUC I TION NUMBER DIV USAGE COLUMN 01101250 2 H W 108 AMP K90 SEE NOTE 9 1 01101250 NOTE SERVICED BY 10463033 REMAN ONLY OR COMPONENTS SHOWN ON CHART GROUP DESCRIPTION DTY 1 I i2 3 I 4 5 2 275 GENERATOR PRODUOTION 1 1101250 108AMP 2 306 BEARI NG BALL DRIVE END 1 908419 2 298 8EARING BALL SLIP RING END 1 1989711 2 316 BOLT THRU 4 1989690 2 291 BRUSH HOLDER 8 BRUSH 1 1989702 2 319 OAPACITOR 1 1989703 2 307 COLLAR SHAET EAN T0 PULLEY 1 1978064 2 307 COLLAR SHAFT INSIDE DRIVE END 1 1986000 2 307 COLLAR 5HAFT OUTSIDE DRIVE END 1 1985999 2 313 CONNEOTOR RECT BRIDGE T0 STATOR LEAD 1 10497789 2 274 FAN 1 1978026 2 305 FRAME DRIVE END 1 1989601 2 297 FRAME SLIP RING END 1 1989706 2 280 LOCKWASHER SHAET NUT DRIVE END 1 1941978 8 915 NUT RECTIEIER BRIDGE 3 120622 2 280 NUT SHAFT DRIVE END 1 1915172 2 307 PLATE BALL BEARING RETAINER 1 1977674 2 274 PULLEY 1 1985964 2 319 RECTIEIER BRIDGE POS 1 10467052 2 500 REGULATOR 1 1116429 2 279 ROTOR 1 1989599 2 307 SCREW BALL BRG RET PLATE ATTACH 3 1975736 2 291 SCREW BRUSH HOLDER ATTAOH GRD 1 1894586 2 500 SCREW BRUSH HOLDER ATTACH IN5UL 1 1989699 2 319 SCREW CAPACITOR LEAD 1 1988970 2 319 SCREW RECTIFIER BRIDGE ATTACH 2 1988971 2 286 SPRING BRUSH 2 1989659 2 310 STATOR 1 1989705 2 313 TERMINAL PKG BATTERY 1 1975471 1 991 GENERATOR CHART PRODUC TION NUMBER DIV USAGE COLUMN 01101577 2 H 3 80 W 105AMP K68 1 01101577 NOTE SERVICED BY REMAN 10463167 0NLY PARTIAL CRES SEERVIOED GROUP DESCRIPTION OTY 1 2 3 4 5 2 275 GENERATOR PRODUCTION 1 1101577 105AMP 2 274 FAN 1 1989581 2 280 NUT SHAFT DRIVE END 1 1915172 2 274 PULLEY 1 1985964 T 1993 GENERAL MOTORS SERVICE PARTS OPERQATIONS PONT AC 22H 5 93 2 25 2 275
