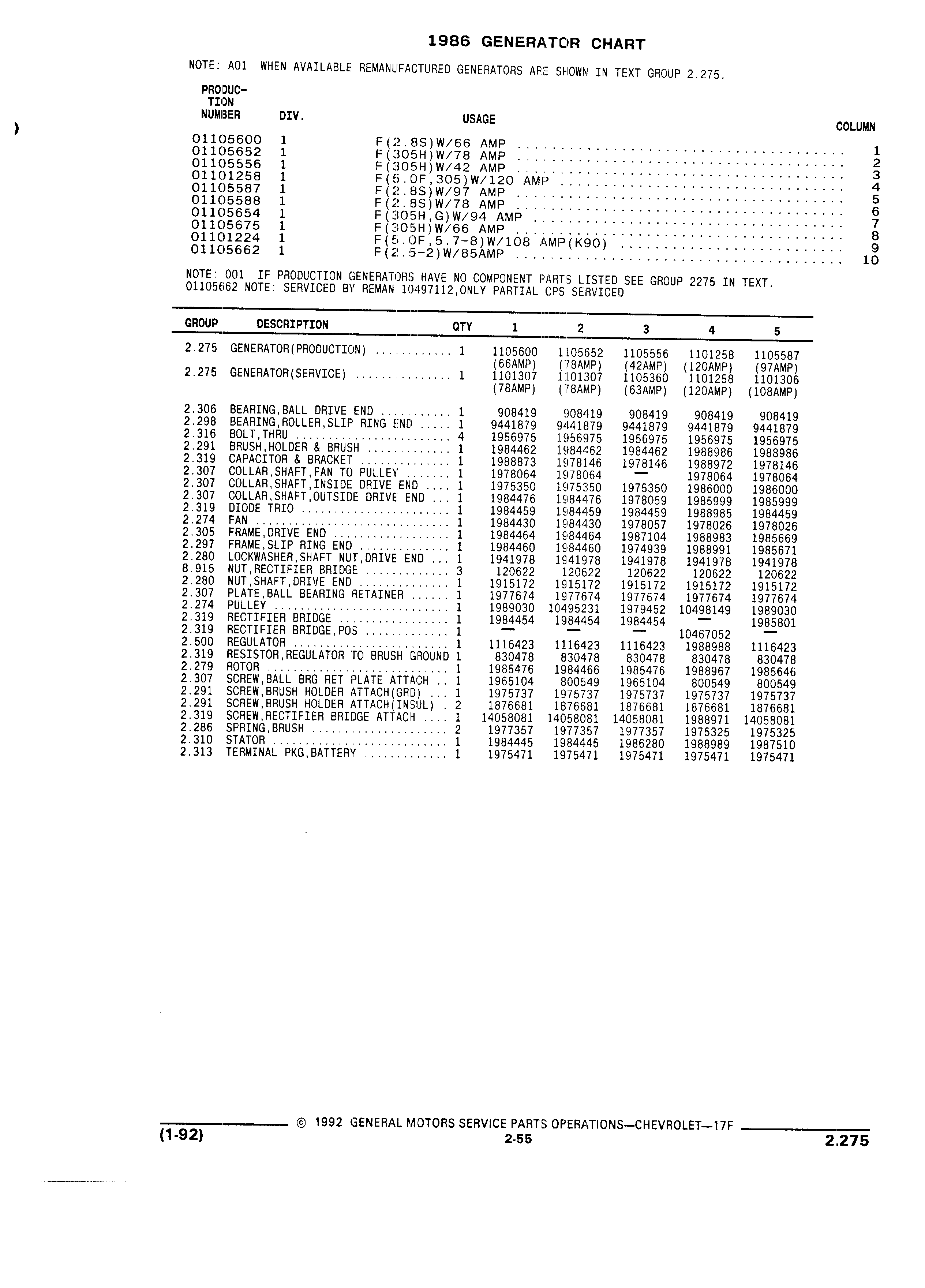

11986 GENERALTOR CHART NOTE A01 WHEN AVAILABLE REMANUFACTURED GENERATORS ARE SHOWN IN TEXT GROUP 2 275 PRODUC TION NUMBER DIV USAGE COLUMN 01105600 1 F 2 8S W 66 AMP 1 01105652 1 F 305H W 78 AMP 2 01105556 1 F 305H W 42 AMP 4 3 01101258 1 F 5 0F 305 W 120 AMP 4 01105587 1 F 2 8S W 97 AMP 5 01105588 1 F 2 8S W 78 AMP 6 01105654 1 F 305H G W 94 AMP 7 01105675 1 F 305H W 66 AMP 8 01101224 1 F 5 0F 5 7 8 W 108 AMP K90 9 01105662 1 F 2 5 2 W 85AMP 10 NOTE 001 IF PRODUCTION GENERATORS HAVE NO COMPONENT PARTS LISTED SEE GROUP 2275 IN TEXT 01105662 NOTE SERVICED BY REMAN 10497112 0NLY PARTIAL CPS SERVICED GROUP DESCRIPTION QTY 1 2 3 4 5 2 275 GENERATOR PRODUCTION 1 1105600 1105652 1105556 1101258 1105587 66AMP 78AMP 42AMP 120AMP 97AMP 2 275 GENERATOR SERVICE 1 1101307 1101307 1105360 1101258 1101306 78AMP 78AMP 63AMP 120AMP 108AMP 2 306 BEARING BALL DRIVE END 1 908419 908419 908419 908419 908419 2 298 BEARING ROLLER SLIP RING END 1 9441879 9441879 9441879 9441879 9441879 2 316 BOLT THRU 4 1956975 1956975 1956975 1956975 1956975 2 291 BRUSH HOLDER BRUSH 1 1984462 1984462 1984462 1988986 1988986 2 319 CAPACITOR BRACKET 1 1988873 1978146 1978146 1988972 1978146 2 307 COLLAR SHAFT FAN T0 PULLEY 1 1978064 1978064 1978064 1978064 2 307 COLLAR SHAFT INSIDE DRIVE END 1 1975350 1975350 1975350 1986000 1986000 2 307 COLLAR SHAFT 0UTSIDE DRIVE END 1 1984476 1984476 1978059 1985999 1985999 2 319 DIODE TRIO 1 1984459 1984459 1984459 1988985 1984459 2 274 FAN 1 1984430 1984430 1978057 1978026 1978026 2 305 FRAME DRIVE END 1 1984464 1984464 1987104 1988983 1985669 2 297 FRAME SLIP RING END 1 1984460 1984460 1974939 1988991 1985671 2 280 LOCKWASHER SHAFT NUT DRIVE END 1 1941978 1941978 1941978 1941978 1941978 8 915 NUT RECTIFIER BRIDGE 3 120622 120622 120622 120622 120622 2 280 NUT SHAFT DRIVE END 1 1915172 1915172 1915172 1915172 1915172 2 307 PLATE BALL BEARING RETAINER 1 1977674 1977674 1977674 1977674 1977674 2 274 PULLEY 1 1989030 10495231 1979452 10498149 1989030 2 319 RECTIFIER BRIDGE 1 1984454 1984454 1984454 1985801 2 319 RECTIFIER BRIDGE POEi 1 10467052 2 500 REGULATOR 1 1116423 1116423 1116423 1988988 1116423 2 319 RESISTOR REGULATOR T0 BRUSH GROUND 1 830478 830478 830478 830478 830478 2 279 ROTOR 1 1985476 1984466 1985476 1988967 1985646 2 307 SCREW BALL BRG RET PLATE ATTACH 1 1965104 800549 1965104 800549 800549 2 291 SCREW BRUSH HOLDER ATTACH GRD 1 1975737 1975737 1975737 1975737 1975737 2 291 SCREW BRUSH HOLDER ATTACH IN5UL 2 1876681 1876681 1876681 1876681 1876681 2 319 SCREW RECTIFIER BRIDGE ATTACP 1 14058081 14058081 14058081 1988971 14058081 2 286 PRING BRUSH 2 1977357 1977357 1977357 1975325 1975325 2 310 STATOR 1 1984445 1984445 1986280 1988989 1987510 2 313 TERMINAL PKG BATTERY 1 1975471 1975471 1975471 1975471 1975471 1992 GENERAL MOTORS SERVICE PARTIES OPERAT ONS CHEVROLET 17F j 1 92 2 55 21 275
