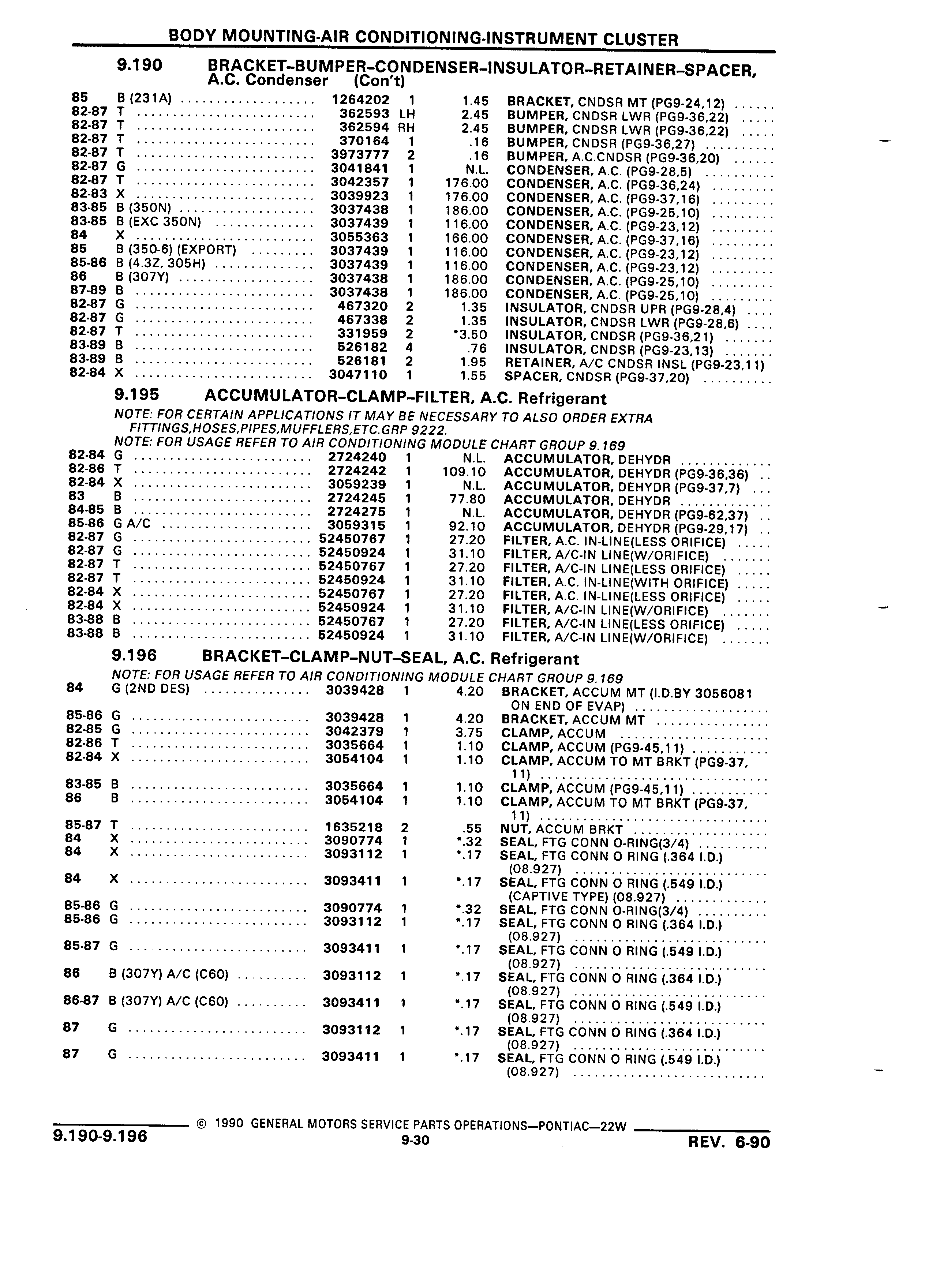

BODY MOUNTING AIR CONDITIONING INSTRUMENT CLUSTER 9 190 BRACKET BUMPER CONDENSER INSULATOR RETAINER SPACER A C Condenser C n t 85 B 231A 1264202 1 1 45 BRACKET CNDSR MT PG9 24 12 82 87 T 362593 LH 2 45 BUMPER CNDSR LWR PG9 36 22 82 87 T 362594 RH 2 45 BUMPER CNDSR LWR PG9 36 22 82 87 T 370164 1 16 BUMPER CNDSR PG9 36 27 82 87 T 3973777 2 16 BUMPER A C CNDSR PG9 36 20 82 87 G 3041841 1 N L CONDENSER A C PG9 28 5 82 87 T 3042357 1 176 00 CONDENSER A C PG9 36 24 82 83 X 3039923 1 176 00 CONDENSER A C PG9 37 16 83 85 B 350N 3037438 1 186 00 CONDENSER A C PG9 25 10 83 85 B EXC 350N 3037439 1 116 00 CONDENSER A C PG9 23 12 84 X 3055363 1 166 00 CONDENSER A C PG9 37 16 85 B 350 6 EXPORT 3037439 1 116 00 CONDENSER A C PG9 23 12 85 86 B 4 32 305H 3037439 1 116 00 CONDENSER A C PG9 23 12 86 B 307Y 3037438 1 186 00 CONDENSER A C PG9 25 10 87 89 B 3037438 1 186 00 CONDENSER A C PG9 25 10 82 87 G 467320 2 1 35 INSULATOR CNDSR UPR PG9 28 4 82 87 G 467338 2 1 35 INSULATOR CNDSR LWR PG9 28 6 82 87 T 331959 2 3 50 INSULATOR CNDSR PG9 36 21 83 89 B 526182 4 76 INSULATOR CNDSR PG9 23 13 83 89 B 526181 2 1 95 RETAINER A C CNDSR INSL PG9 23 11 82 84 X 3047110 1 1 55 SPACER CNDSR PG9 37 20 9 195 ACCUMULATOR CLAMP FILTER A C Refrigerant NOTE FOR CERTAIN APPLICATIONS IT MAY BE NECESSARY TO ALSO ORDER EXTRA FITTINGS HOSES PIPES MUFFLERS ETC GRP 9222 NOTE FOR USAGE REFER TO A R CONDITIONING MODULE CHART GROUP 9 169 82 84 G 2724240 1 N L ACCUMULATOR DEHYDR 82 86 T 2724242 1 109 10 ACCUMULATOR DEHYDR PG9 36 36 82 84 X 3059239 1 N L ACCUMULATOR DEHYDR PG9 37 7 83 B 2724245 1 77 80 ACCUMULATOR DEHYDR 84 85 B 2724275 1 N L ACCUMULATOR DEHYDR PG9 62 37 85 86 G A C 3059315 1 92 10 ACCUMULATOR DEHYDR PG9 29 17 82 87 G 52450767 1 27 20 FILTER A C IN L NE LESS ORIFICE 82 87 G 52450924 1 31 10 FILTER A C IN L NE W ORIFICE 82 87 T 52450767 1 27 20 FILTER A C IN LINE LESS ORIFICE 82 87 T 52450924 1 31 10 FILTER A C IN LlNE WITH ORIFICE 82 84 X 52450767 1 27 20 FILTER A C IN LINE LESS ORIFICE 82 84 X 52450924 1 31 10 FILTER A C IN L NE W ORIFICE 83 88 B 52450767 1 27 20 FILTER A C IN LINE LESS ORIFICE 83 88 B 52450924 1 31 10 FILTER A C IN LINE W ORIFICE 9 196 BRACKET CLAMP N UT SEAL A C Refrigerant NOTE FOR USAGE REFER TO AIR CONDITION NG MODULE CHART GROUP 9 169 84 G 2ND DES 3039428 1 4 20 BRACKET ACCUM MT D BY 3056081 ON END OF EVAP 85 86 G 3039428 1 4 20 BRACKET ACCUM MT 82 85 G 3042379 1 3 75 CLAMP ACCUM 82 86 T 3035664 1 1 10 CLAMP ACCUM PG9 45 11 82 84 X 3054104 1 1 10 CLAMP ACCUM TO MT BRKT PG9 37 11 83 85 B 3035664 1 1 10 CLAMP ACCUM PG9 45 11 86 B 3054104 1 1 10 CLAMP ACCUM TO MT BRKT PG9 37 11 85 87 T 1635218 2 55 NUT ACCUM BRKT 84 X 3090774 1 32 SEAL FTG CONN O R NG 3 4 84 X 3093112 1 17 SEAL FTG CONN O RING 364 I D 08 927 84 X 3093411 1 17 SEAL FTG CONN O RING 549 I D CAPTIVE TYPE 08 927 85 86 G 3090774 1 32 SEAL FTG CONN O RING 3 4 85 86 G 3093112 1 17 SEAL FTG CONN O RING 364 I D 08 927 85 87 G 3093411 1 17 SEAL FTG CONN 0 RING 549 I D 08 927 86 B 307Y A C C60 3093112 1 17 SEAL FTG CONN O RING 364 I D 08 927 86 87 B 307Y A C C60 3093411 1 17 SEAL FTG CONN O RING 549 I D 08 927 87 G 3093112 1 17 SEAL FTG CONN 0 RING 364 I D 08 927 87 G 3093411 1 17 SEAL FTG CONN O RING 549 I D 08 927 i Y 1990 GENERAL MOTORS SERVICE PARTS 0PERAT 0NS PONTIAC 22W iT 9 190 9 196 9 so REV 6 90
