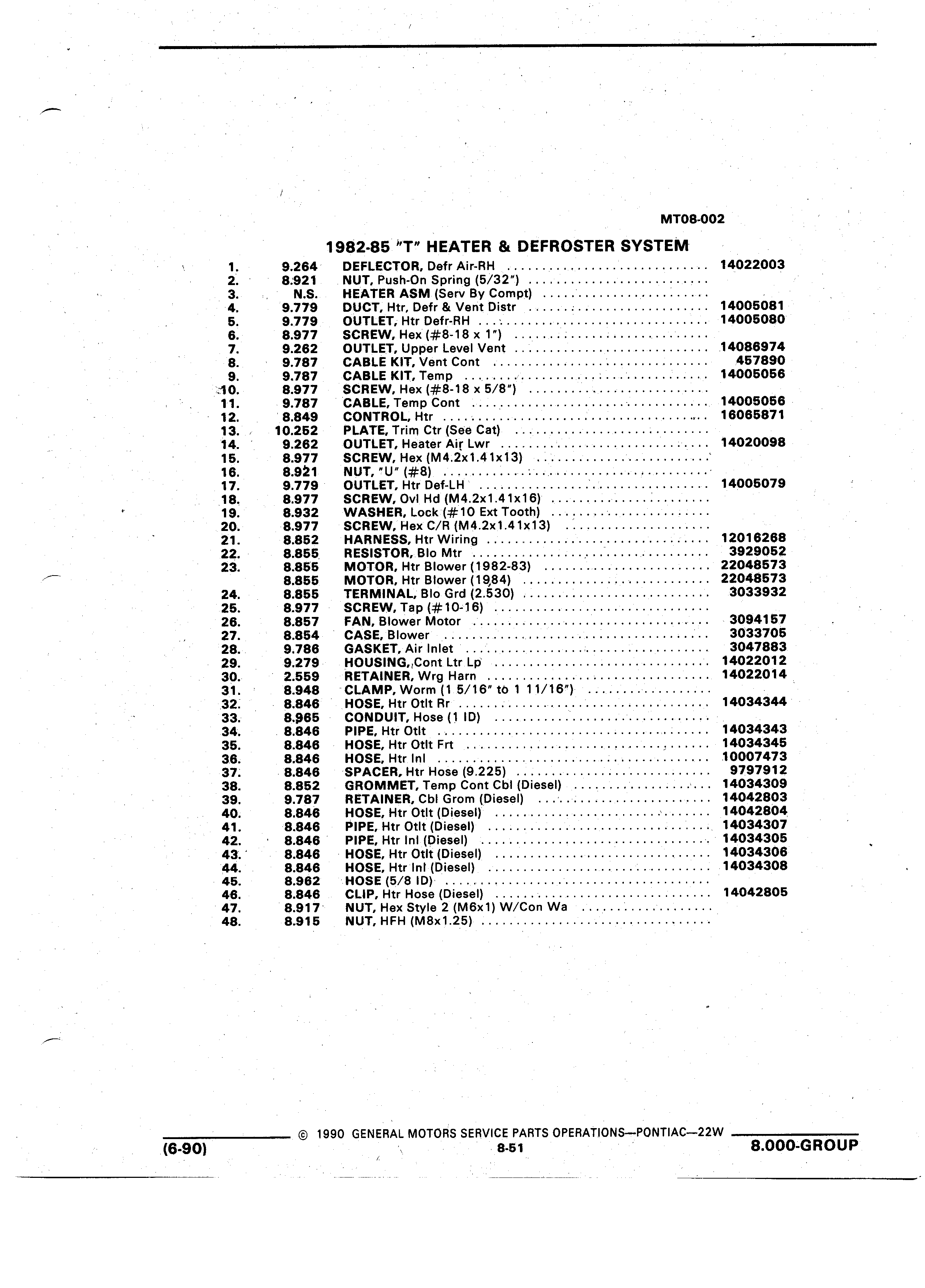

I MT08 002 V I 1982 85 T HEATER DEFROSTER SYSTEM V V 1 9 264 DEFLECTOR Defr Air RH 14022003 V 2 8 921 NUT Push On Spring 5 32 V 3 N S HEATER ASM Serv By Compt L 4 9 779 DUCT Htr Defr Vent Distr 14005081 5 9 779 OUTLET Htr Defr RH 14005080 i A 6 8 977 SCREW Hex 8 18 x 1 7 9 262 OUTLET Upper Level Vent 14086974 i 8 V 9 787 CABLE KIT Vent Cont 457890 9 9 787 CABLE KIT Temp V 14005056 T 10 8 977 SCREW Hex 8 18 x 5 8 l 11 9 787 CABLE Temp Cont 14005056 r 12 8 849 CONTROL Htr 16065871 I 13 10 252 PLATE Trim Ctr See Cat y 14 9 262 OUTLET Heater Air Lwr 14020098 15 8 977 SCREW Hex M4 2x1 41x13 16 8 921 NUT U 8 17 9 779 OUTLET Htr Def LH 14005079 18 8 977 SCREW Ovl Hd M4 2x1 41x16 T I 19 8 932 WASHER Lock 10 Ext Tooth i 20 8 977 SCREW Hex C R M4 2x1 41x13 I 21 8 852 HARNESS Htr Wiring 12016268 22 8 855 RESISTOR Blo Mtr I 3929052 23 8 855 MOTOR Htr Blower 1982 83 22048573 8 855 MOTOR Htr Blower 1984 22048573 24 8 855 TERMINAL BI0 Grd 2 530 3033932 25 8 977 SCREW Tap 10 16 26 8 857 FAN Blower Motor 3094157 I 27 8 854 CASE Blower 3033705 28 9 786 GASKET Air Inlet 4 3047883 29 9 279 I IOUSING Cont Ltr Lp 14022012 30 2 559 RETAINER Wrg Harn 14022014 31 8 948 CLAMP Worm 1 5 16 to 1 11 16 32 8 846 HOSE Htr Otlt Rr 14034344 33 8 965 CONDUIT Hose 1 ID I 34 8 846 PIPE Htr Otlt 14034343 35 8 846 V HOSE Htr Otlt Frt 14034345 V 3 6 8 846 HOSE Htr Inl 10007473 37 8 846 SPACER Htr Hose 9 225 9797912 38 8 852 GROMMET Temp Cont Cbl Diesel 14034309 I 39 9 787 RETAINER Cbl Grom Diesel V 14042803 40 8 846 HOSE Htr Otlt Diesel V 14042804 V 41 8 846 PIPE Htr Otlt Diesel 14034307 42 8 846 I PIPE Htr Inl Diesel 14034305 43 8 846 V HOSE Htr Otlt Diesel 14034306 44 8 846 HOSE Htr Inl Diesel 14034308 I 45 8 962 HOSE 5 8 lD V 46 8 846 CLIP Htr Hose Diesel 14042805 A 47 8 917 NUT Hex Style 2 M6x1 W Con Wa 48 8 915 NUT HFH M8x1 2V5 t 1990 GENERAL MOTORS SERVICE PARTS OPERATIONS PONT AC 22W L L V 6 90 V l 8 51 I 8 000 GROUP
