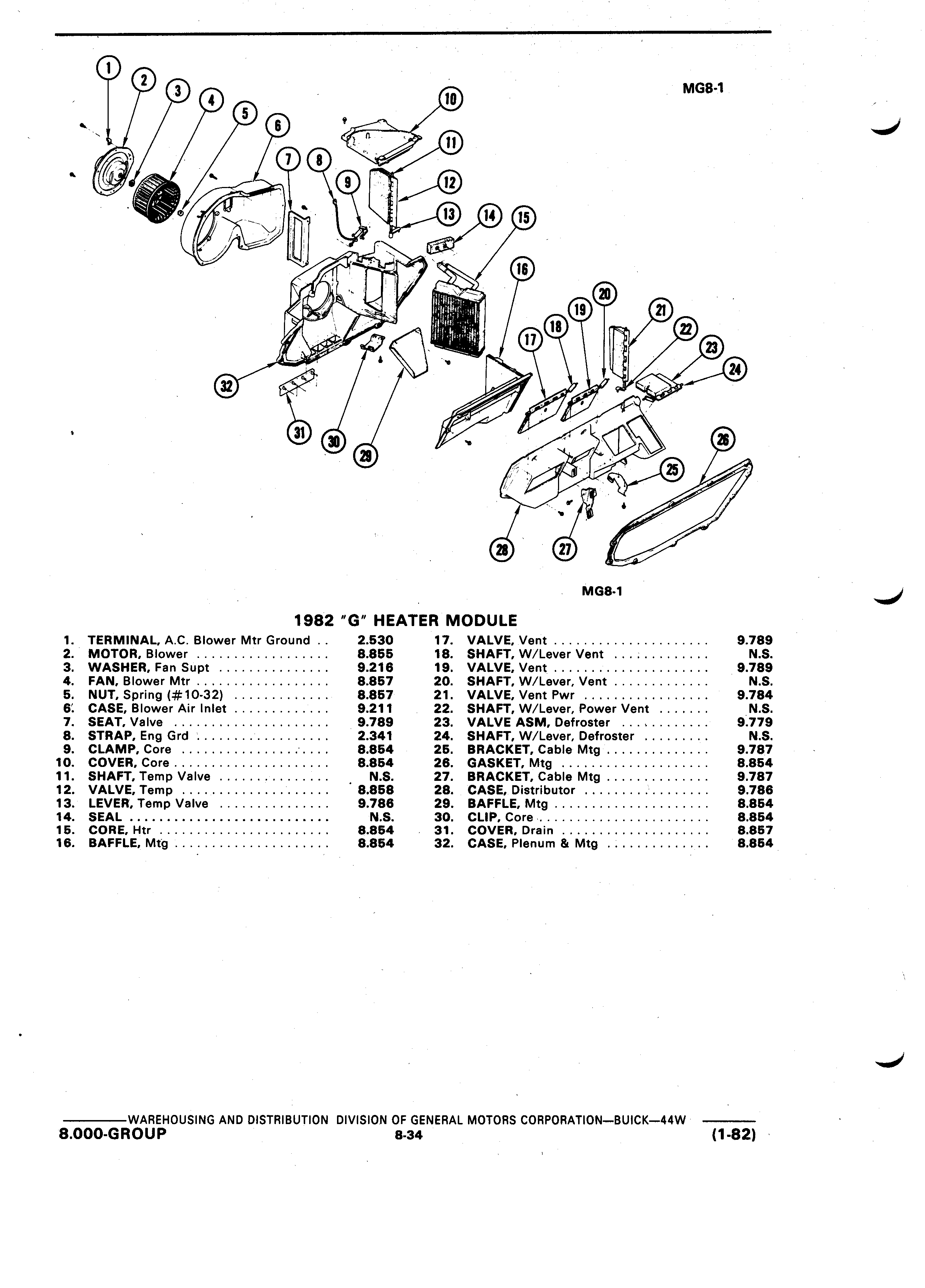

0 0 6 00 V 7 I I il M lD 1 1 e 1 1 D l M 4 0 1 ll 1 f g D D 0 e G J Q i I N I I A 4 0 GB 4 7 I rx ZJ I 1 J Y 4 6 0 if 0 Q T lj f U r MG8 1 A 4 1982 G HEATER MODULE 1 TERMINAL A C Blower Mtr Ground 2 530 17 VALVE Vent 9 789 2 MOTOR Blower 8 855 18 SHAFT W Lever Vent N S 3 WASHER Fan Supt 9 216 19 VALVE Vent 9 789 4 FAN Blower Mtr 8 857 20 SHAFT W Lever Vent N S 5 NUT Sprin9 10 32 8 857 21 VALVE Vent Pwr 9 784 62 CASE Blower Air Inlet 9 211 22 SHAFT W Lever Power Vent N S 7 SEAT Valve 9 789 23 VALVE ASM Defroster 9 779 8 STRAP Eng Grd 2 341 24 SHAFT W Lever Defroster N S 9 CLAMP Core 8 854 25 BRACKET Cable Mtg 9 787 10 COVER Core 8 854 26 GASKET Mtg 8 854 11 SHAFT Temp Valve N S 27 BRACKET Cable Mtg 9 787 12 VALVE Temp 8 858 28 CASE Distributor i 9 786 13 LEVER Temp Valve 9 786 29 BAFFLE Mtg 8 854 14 SEAL N S 30 CLIP Core 8 854 15 CORE Htr 8 854 1 31 COVER Drain 8 857 16 BAFFLE Mtg 8 854 32 CASE Plenum Mtg 8 854 WAREHOUS NG AND DISTRIBUTION D v sl0 N OF GENERAL MOTORS CORPORATION Buick 44w 8 000 GROUP 8 34 1 82
