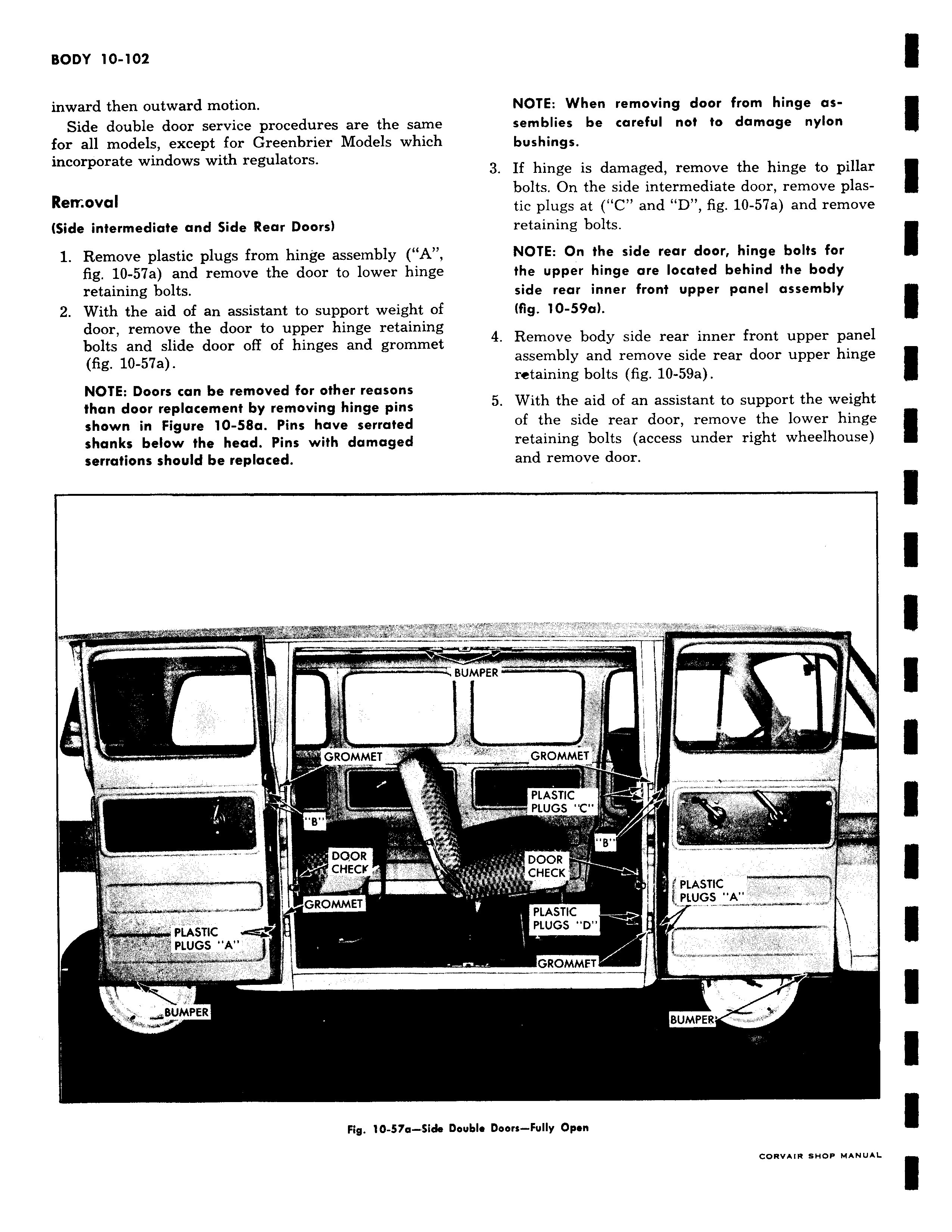

inward then outward motion Side double door service procedures are the same for all models except for Greenbrier Models which incorporate windows with regulators Removal Side intermediate and Side Rear Doors 1 Remove plastic plugs from hinge assembly A fig 10 57a and remove the door to lower hinge retaining bolts 2 With the aid of an assistant to support weight of door remove the door to upper hinge retaining bolts and slide door off of hinges and grommet fig 10 57a NOTE Doors can be removed for other reasons than door replacement by removing hinge pins shown in Figure 10 58a Pins have serrated shanks below the head Pins with damaged serrations should be replaced t nT GROMMET I 8 DOOR i CHECK e GROMMET PLASTIC PLUGS A BUMPER r Fig 10 57a Side NOTE When removing door from hinge assemblies be careful not to damage nylon bushings 3 If hinge is damaged remove the hinge to pillar bolts On the side intermediate door remove plastic plugs at C and D fig 10 57a and remove retaining bolts NOTE On the side rear door hinge bolts for the upper hinge are located behind the body side rear inner front upper panel assembly fig 10 59a 4 Remove body side rear inner front upper panel assembly and remove side rear door upper hinge retaining bolts fig 10 59a 5 With the aid of an assistant to support the weight of the side rear door remove the lower hinge retaining bolts access under right wheelhouse and remove door BUMPER I l 1 GROMMET PLASTIC ti PLUGS C 3 OR CHECK PLASTIC PLUGS A PLASTIC PLUGS GROMMET I BUMPER ouble Doors Fully Open CORVAIR SHOP MANUAL
