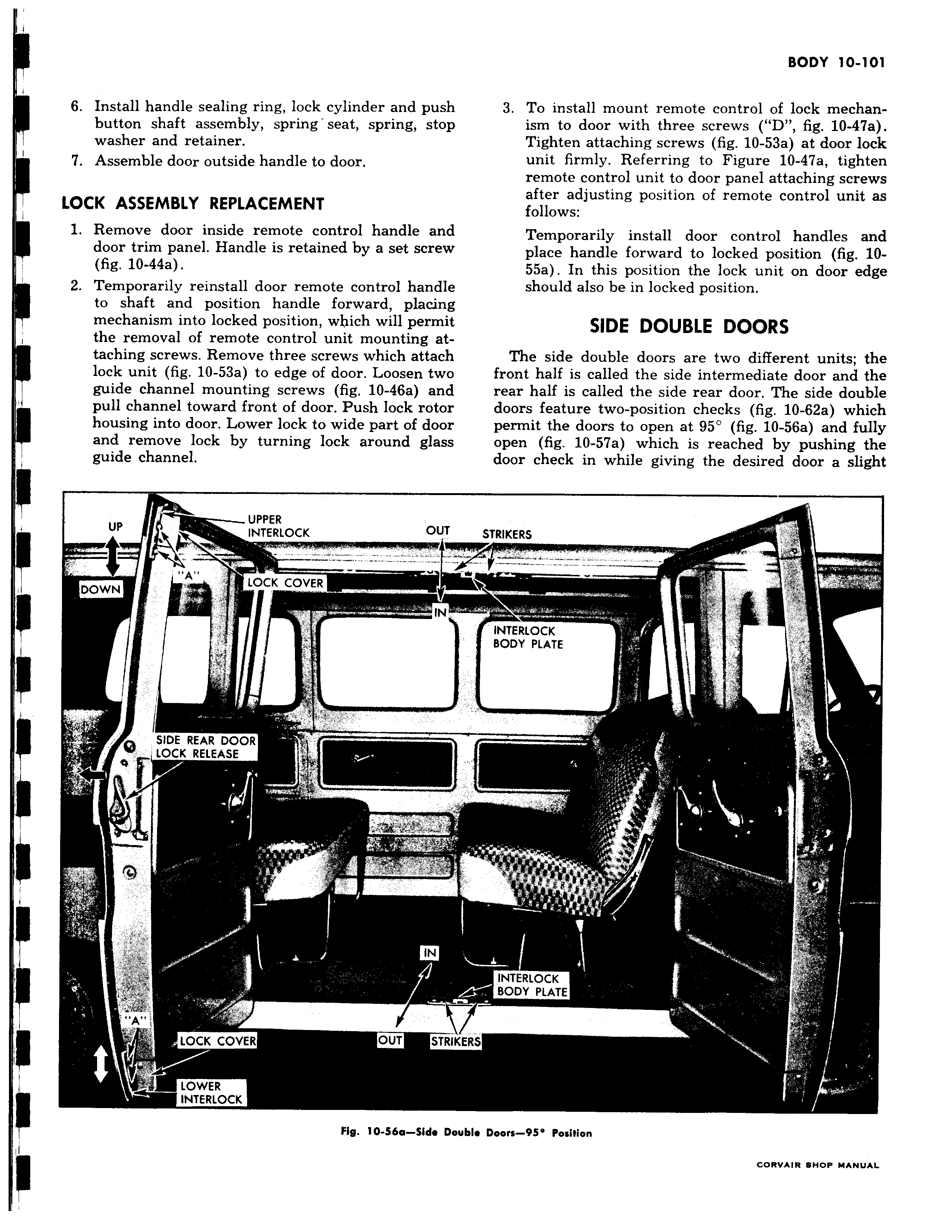

I 6 Install handle sealing ring lock cylinder and push button shaft assembly spring seat spring stop washer and retainer 7 Assemble door outside handle to door LOCK ASSEMBLY REPLACEMENT I 1 Remove door inside remote control handle and door trim panel Handle is retained by a set screw fig 10 44a r 2 Temporarily reinstall door remote control handle to shaft and position handle forward placing mechanism into locked position which will permit the removal of remote control unit mounting at 1 taching screws Remove three screws which attach lock unit fig 10 53a to edge of door Loosen two guide channel mounting screws fig 10 46a and pull channel toward front of door Push lock rotor housing into door Lower lock to wide part of door and remove lock by turning lock around glass guide channel UPPER INTERLOCK OUT DOWN LOCK COVER I 1 J SIDE REAR DOOR LOCK RELEASE q l IN A LOCK COVER OUT STRI w LOWER INTERLOCK Fig 10 56a Sid D4 3 To install mount remote control of lock mechanism to door with three screws D fig 10 47a Tighten attaching screws fig 10 53a at door lock unit firmly Referring to Figure 10 47a tighten remote control unit to door panel attaching screws after adjusting position of remote control unit as follows Temporarily install door control handles and place handle forward to locked position fig 1055a In this position the lock unit on door edge should also be in locked position SIDE DOUBLE DOORS The side double doors are two different units the front half is called the side intermediate door and the rear half is called the side rear door The side double doors feature two position checks fig 10 62a which permit the doors to open at 95 fig 10 56a and fully open fig 10 57a which is reached by pushing the door check in while giving the desired door a slight i STRIKERS MISS INTERLOCK BODY PLATE r w RRt st Qtt l tt I i INTERLOCK BODY PLATE t KERS iuble Doors 95 Position
