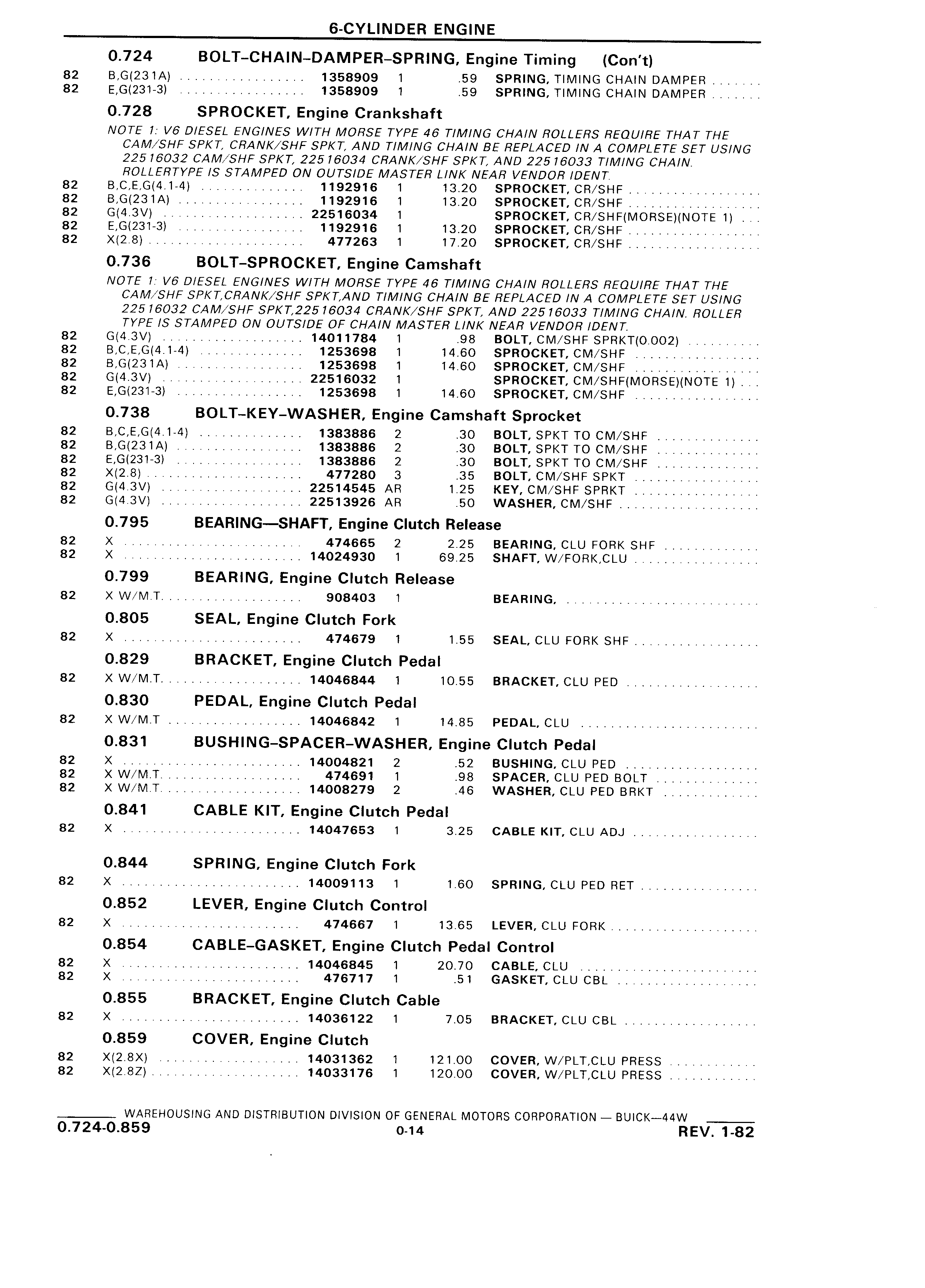

6 CYLINDER ENGINE 0 724 BOLT CHAIN DAMPER SPRING Engine Timing Con t 82 B G 231A 1358909 1 59 SPRING TIIVIING CHAIN DAl I PER 82 E G 231 3 1358909 1 59 SPRING T l IING CHAIN DAI I PER 0 728 SPROCKET Engine Crankshaft NOTE 7 V6 DIESEL ENGINES WITH MORSE TYPE 46 T MING CHA N ROLLERS REOUIRE THAT THE CAM SHF SPKT CRANK SHF SPKT AND TIMING CHA N BE REPLACED IN A COMPLETE SET USING 225 76032 CAM SHF SPKT 225 76034 CRANK SHF SPKT AND 225 76033 T MING CHAIN ROLLERTYPE IS STAMPED ON OUTSIDE MASTER LINK NEAR VENDOR IDENT 82 B C E G 4 1 4 1192916 1 13 20 SPROCKET CR SHF 82 B G 231A 1192916 1 13 20 SPROCKET CR SHF 82 G 4 3V 22516034 1 SPROCKET CR SHF lVl0RSE NOTE 1 82 E G 231 3 1192916 1 13 20 SPROCKET CR SHF 82 X 2 8 477263 1 17 20 SPROCKET CR SHF 0 736 BOLT SPROCKET Engine Camshaft NOTE 7 V6 DIESEL ENGINES WITH MORSE TYPE 46 T MING CHA N ROLLERS REOUIRE THAT THE CAM SHE SPKTCRANK SHF SPKT AND TIM NG CHAIN BE REPLACED IN A COMPLETE SET USING 225 76032 CAM SHF SPK7 22576034 CRANK SHF SPKT AND 22576033 TIMING CHAIN ROLLER TYPE IS STAMPED ON OUTSIDE OF CHAIN MASTER LINK NEAR VENDOR IDENT 82 G 4 3V 14011784 I 98 BOLT CNI SHF SPRKT 0 002 82 B C E G 4 1 4 1253698 1 14 60 SPROCKET CM SHF 82 B G 231A 1253698 1 14 60 SPROCKET CIVI SHF 82 G 4 3V 22516032 1 SPROCKET CIVI SHF I ORSE NOTE 1 82 E G 231 3 1253698 1 14 60 SPROCKET CM SHF 0 738 BOLT KEY WASHER Engine Camshaft Sprocket 82 B C E G 4 1 4 1383886 2 30 BOLT SPKT TO CIVI SHF 82 B G 231A 1383886 2 30 BOLT SPKT TO Cl I SHF 82 E G 231 3I 1383886 2 30 BOLT SPKT TO CI I SHF 82 X 2 8 477280 3 35 BOLT CI I SHF SPKT 82 G 4 3V 22514545 AR 1 25 KEY Cl I SHF SPRKT 82 G 4 3V 22513926 AR 50 WASHER CM SHF 0 795 BEAR NG SHAFT Engine Clutch Release 82 X 474665 2 2 25 BEARING CLU FORK SHF 82 X 14024930 1 69 25 SHAFT W FORK CLU 0 799 BEARING Engine Clutch Release 82 X W l l T 908403 1 BEARING 0 805 SEAL Engine Clutch Fork 82 X 474679 1 1 55 SEAL CLU FORK SHF 0 829 BRACKET Engine Clutch Pedal 82 X W l T 14046844 1 10 55 BRACKET CLU PED 0 830 PEDAL Engine Clutch Pedal 82 X W l I T 14046842 1 14 85 PEDAL CLU 0 831 BUSHING SPACER WASHER Engine Clutch Pedal 82 X 14004821 2 52 BUSHING CLU PED 82 X W l I T 474691 1 98 SPACER CLU PED BOLT 82 X W I l T 14008279 2 46 WASHER CLU PED BRKT 0 841 CABLE KIT Engine Clutch Pedal 82 X 14047653 1 3 25 CABLE KIT CLU ADJ 0 844 SPRING Engine Clutch Fork 82 X 14009113 1 1 60 SPRING CLU PED RET 0 852 LEVER Engine Clutch Control 82 X 474667 1 13 65 LEVER CLU FORK 0 854 CABLE GASKET Engine Clutch Pedal Control 82 X 14046845 1 20 70 CABLE CLU 82 X 476717 1 51 GASKET CLU CBL 0 855 BRACKET Engine Clutch Cable 82 X 14036122 1 7 05 BRACKET CLU CBL 0 859 COVER Engine Clutch 82 X 2 8X 14031362 1 121 00 COVER W PLT CLU PRESS 82 X 2 8Z 14033176 1 120 00 COVER W PLT CLU PRESS WAREHOUSING AND DISTRIBUTION DIVISION OF GENERAL MOTORS CORPORATION BUICK 44W 0 724 0 859 0 14 REV 1 82
