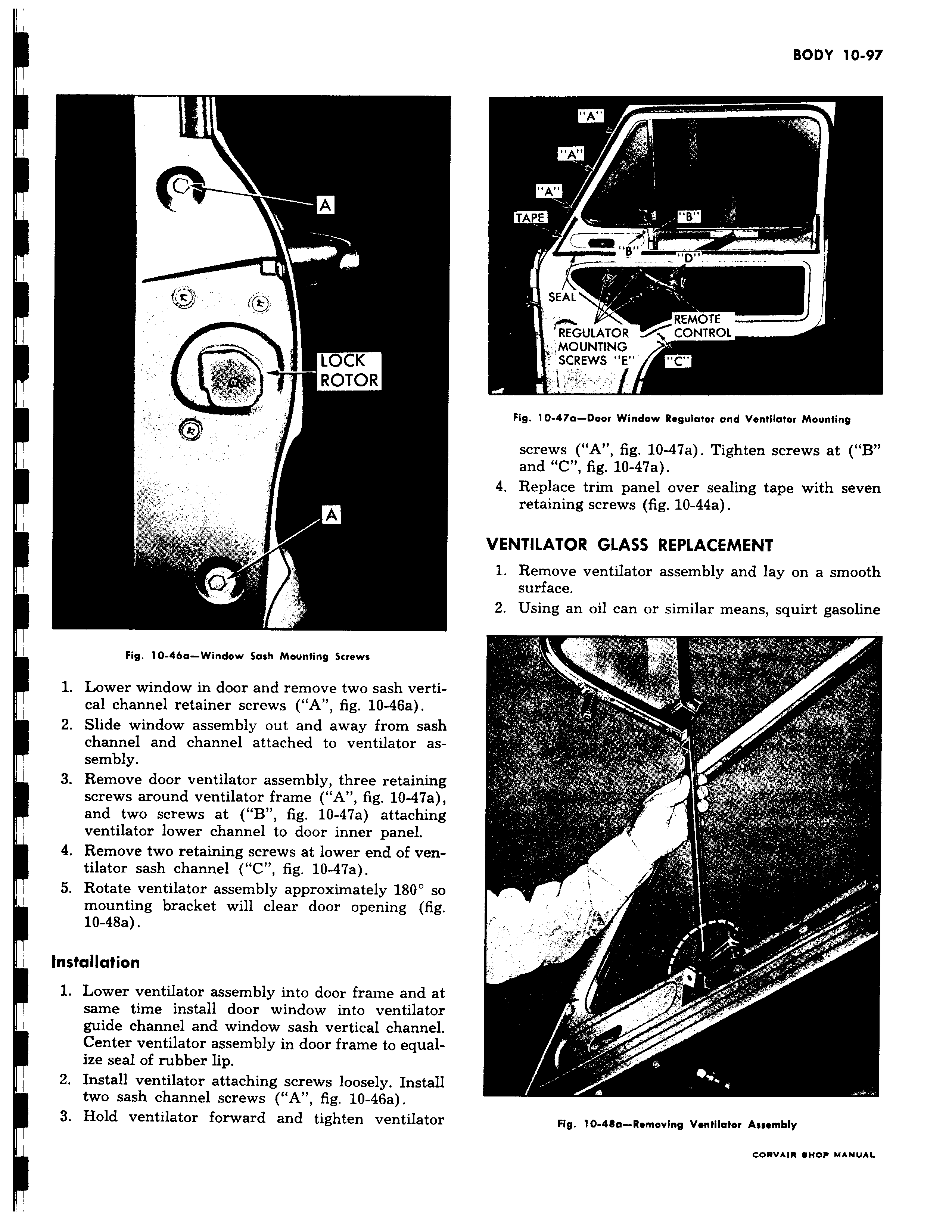

i I A LOCK ROTOR A 1 b irYt Fig 10 46a Window Sash Mounting Straws 1 Lower window in door and remove two sash vertical channel retainer screws A fig 10 46a 2 Slide window assembly out and away from sash channel and channel attached to ventilator assembly 3 Remove door ventilator assembly three retaining t screws around ventilator frame A fig 10 47a and two screws at B fig 10 47a attaching ventilator lower channel to door inner panel I 4 Remove two retaining screws at lower end of ventilator sash channel C fig 10 47a 5 Rotate ventilator assembly approximately 180 so I mounting bracket will clear door opening fig 10 48a Installation 1 Lower ventilator assembly into door frame and at same time install door window into ventilator guide channel and window sash vertical channel Center ventilator assembly in door frame to equalize seal of rubber lip 2 Install ventilator attaching screws loosely Install two sash channel screws A fig 10 46a 3 Hold ventilator forward and tighten ventilator 1 z i r I l i l 1 h i T r s s 11 46
