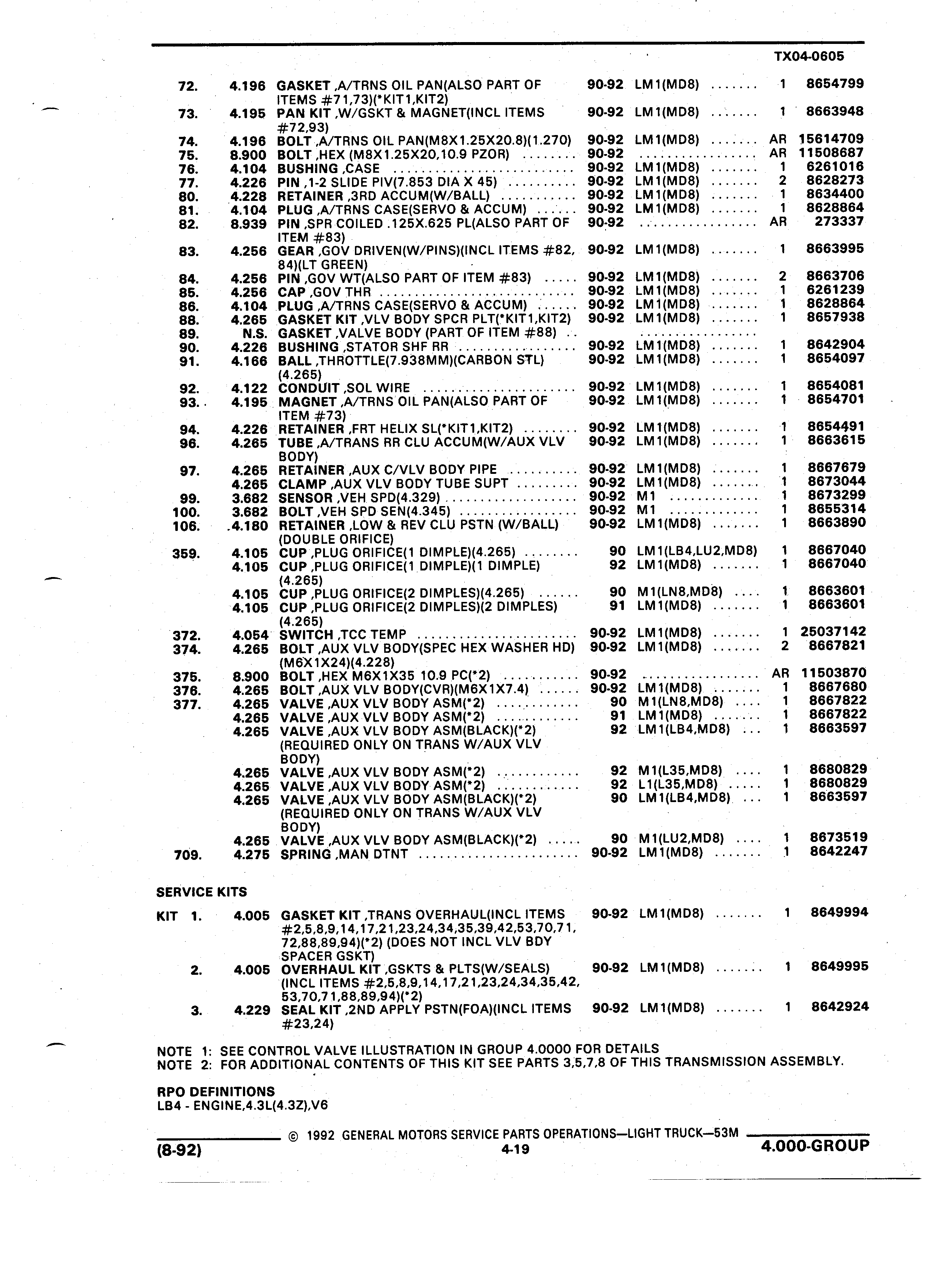

I TX04 0605 72 4 196 GASKET A TRNS OIL PAN ALSO PART OF 90 92 LM 1 MD8 1 8654799 I ITEMS 71 73 K T1 KIT2 73 4 195 PAN KIT W GSKT MAGNET INCL ITEMS 90 92 LM1 MD8 1 I 8663948 72 93 74 4 196 BOLT A TRNS OIL PAN M8X1 25X20 8 1 270 90 92 LM1 MD8 Q AR 15614709 75 8 900 BOLT HEX M8X1 25X20 10 9 PZOR 90 92 AR 11508687 76 4 104 BUSHING CASE 90 92 LM1 MD8 1 6261016 77 4 226 PIN 1 2 SLIDE P V 7 853 DIA X 45 90 92 LM1 MD8 2 8628273 80 4 228 RETAINER 3RD ACCUM W BALL 90 92 LM1 MD8 1 8634400 V 81 4 104 PLUG A TRNS CASE SERVO ACCUM 90 92 LM1 MD8 1 8628864 82 8 939 PIN SPR COILED 125X 625 PL ALSO PART OF 90 92 AR 273337 ITEM 83 83 4 256 GEAR GOV DRIVEN W PINS INCL ITEMS 82 90 92 LM 1 MD8 1 8663995 84 LT GREEN 84 4 256 PIN GOV WT ALSO PART OF ITEM 83 90 92 LM1 MD8 2 8663706 85 4 256 CAP GOV THR 90 92 LM 1 MD8 1 6261239 86 4 104 PLUG A TRNS CASE SERVO ACCUM 90 92 LM1 MD8 1 8628864 88 4 265 GASKET KIT VLV BODY SPCR PLT f KIT1 KIT2 90 92 LM 1 MD8 1 8657938 89 N S GASKET VALVE BODY PART OF ITEM 88 90 4 226 BUSHING STATOR S HF RR 90 92 LM1 MD8 1 8642904 91 4 166 BALL THROTTLE 7 938MM CARBON STL 90 92 LM 1 MD8 1 8654097 4 265 92 4 122 CONDUIT SOL WIRE 90 92 LM 1 MD8 1 8654081 93 4 195 MAGNET A TRNSOIL PAN ALSO PART OF 90 92 LM1 MD8 1 8654701 ITEM 73 94 4 226 RETAINER FRT HELIX SL KIT1 KIT2 90 92 LM 1 MD8 1 8654491 96 4 265 TUBE A TRANS RR CLU ACCUM W AUX VLV 90 92 LM1 MD8 1 8663615 BODY 97 4 265 RETAINER AUX C VLV BODY PIPE 90 92 LM1 MD8 1 8667679 4 265 CLAMP AUX VLV BODY TUBE SUPT 90 92 LM1 MD8 I1 8673044 99 3 682 SENSOR VEH SPD 4 329 90 92 M1 1 8673299 100 3 682 BOLT VEH SPD SEN 4 345 90 92 M1 1 8655314 106 4 180 RETAINER LOW REV CLU PSTN W BALL 90 92 LM 1 MD8 1 8663890 DOUBLE ORIFICE 359 4 105 CUP PLUG OR F CE 1 D MPLE 4 265 90 LM1 LB4 LU2 MD8 1 8667040 4 105 CUP PLUG OR F CE 1 DIMPLE 1 DIMPLE 92 LM 1 MD8 1 8667040 4 265 4 105 CUP PLUG ORIFICE 2 D MPLES 4 265 90 M1 LN8 MD8 1 8663601 4 105 CUP PLUG ORIFICE 2 D MPLES 2 DIMPLES 91 LM1 MD8 1 8663601 4 265 I 372 4 054 SWITCH TCC TEMP 90 92 LM1 MD8 1 25037142 374 4 265 BOLT AUX VLV BODY SPEC HEX WASHER HD 90 92 LM 1 MD8 2 8667821 M6X1X24 4 228 375 8 900 BOLT HEX M6X1X35 10 9 PC 2 90 92 AR 11503870 376 4 265 BOLT AUX VLV BODY CVR M6X1X7 4 90 92 LM 1 M D8 1 8667680 377 4 265 VALVE AUX VLV BODY ASM 2 V 90 M 1 LN8 MD8 1 8667822 4 265 VALVE AUX VLV BODY ASM 2 91 LM1 MD8 1 8667822 4 265 VALVE AUX VLV BODY ASM BLACK 2 92 LM1 LB4 MD8 1 8663597 REQUIRED ONLY ON TRANS W AUX VLV BODY 4 265 VALVE AUX VLV BODY ASM 2 92 M1 L35 MD8 1 8680829 4 265 VALVE AUX VLV BODY ASM 2 92 L1 L35 MD8 1 86 80829 4 265 VALVE AUX VLV BODY ASM BLACK 2 90 LM 1 LB4 MD8 1 8663597 REQUIRED ONLY ON TRANS W AUX VLV BODY 4 265 VALVE AUX VLV BODY ASM BLACK 2 90 M 1 LU2 MD8 V 1 8673519 709 4 275 SPRING MAN DTNT 90 92 LM1 MD8 I 8642247 SERVICE KITS KIT 1 4 005 GASKET KIT TRANS OVERHAUL INCL ITEMS 90 92 LM1 MD8 1 8649994 2 5 8 9 14 17 21 23 24 34 35 39 42 53 70 7I 72 88 89 94 2 DOES NOT INCL VLV BDY V SPACER GSKT 2 4 005 OVERHAUL KIT GSKTS PLTS W SEALS 90 92 LM 1 MD8 Q 1 8649995 INCL ITEMS 2 5 8 9 14 17 21 23 24 34 35 42 53 70 7 1 88 89 94 2 3 4 229 SEAL KIT 2ND APPLY PSTN FOA INCL ITEMS 90 92 LM1 MD8 1 8642924 23 24 A NOTE 1 SEE CONTROL VALVE ILLUSTRATION IN GROUP 4 0000 FOR DETAILS V NOTE 2 FOR ADDITIONAL CONTENTS OF THIS KIT SEE PARTS 3 5 7 8 OF THIS TRANSMISSION ASSEMBLY RPO DEFINITIONS LB4 ENGINE 4 3L 4 3Z V6 T 1992 GENERAL MOTORS SERVICE PARTS 0PERATIONS LIGHT TRUCK 53M L 8 92 4 19 4 000 GROUP
