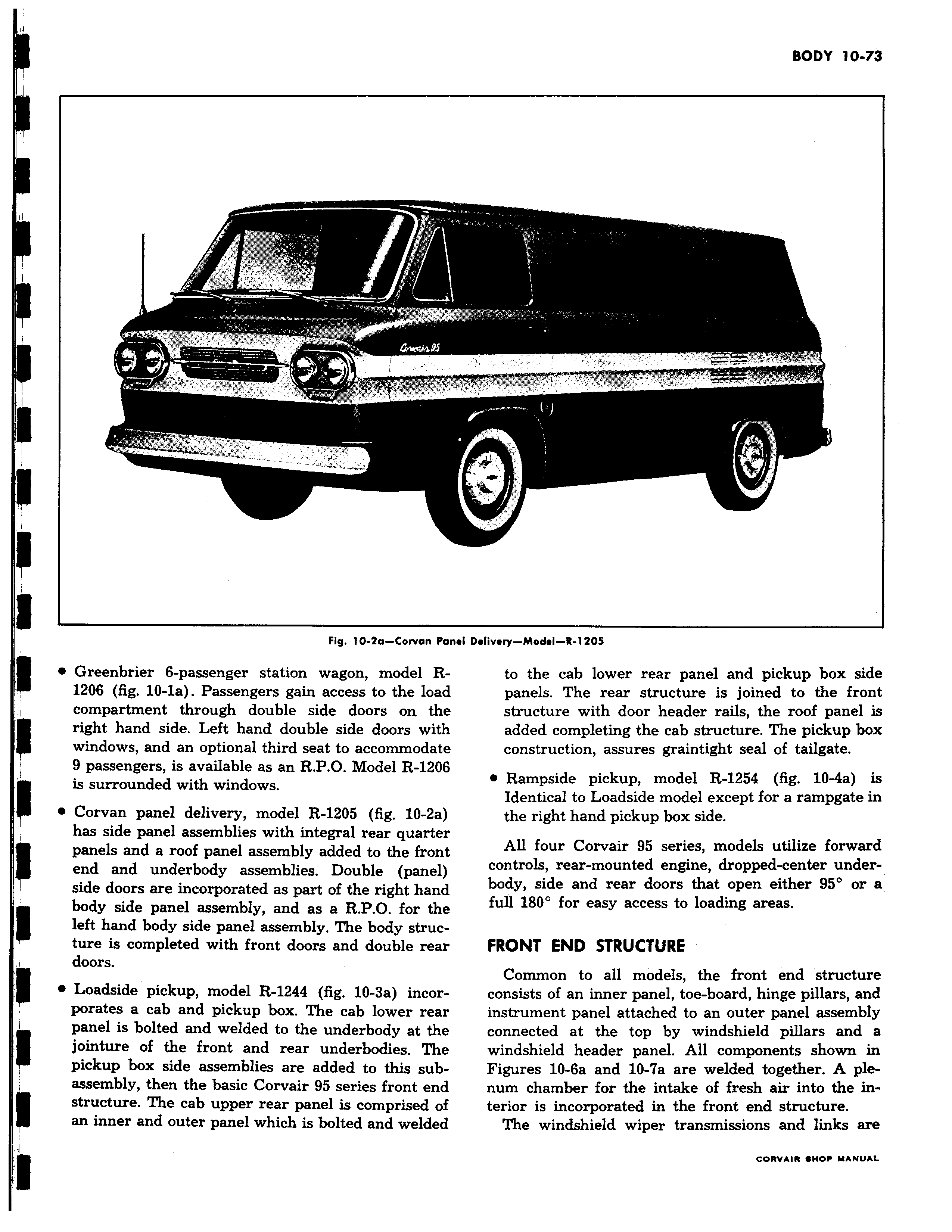

rrrirr Fig 10 2a Corvan Par Greenbrier 6 passenger station wagon model R1206 fig 10 1a Passengers gain access to the load compartment through double side doors on the right hand side Left hand double side doors with windows and an optional third seat to accommodate 9 passengers is available as an R P O Model R 1206 r is surrounded with windows Corvan panel delivery model R 1205 fig 10 2a has side panel assemblies with integral rear quarter panels and a roof panel assembly added to the front end and underbody assemblies Double panel side doors are incorporated as part of the right hand body side panel assembly and as a R P O for the left hand body side panel assembly The body structure is completed with front doors and double rear doors Loadside pickup model R 1244 fig 10 3a incorporates a cab and pickup box The cab lower rear panel is bolted and welded to the underbody at the I jointure of the front and rear underbodies The pickup box side assemblies are added to this subassembly then the basic Corvair 95 series front end structure The cab upper rear panel is comprised of an inner and outer panel which is bolted and welded 7 III A I el Delivery Model R 1205 to the cab lower rear panel and pickup box side panels The rear structure is joined to the front structure with door header rails the roof panel is added completing the cab structure The pickup box construction assures graintight seal of tailgate 0 Rampside pickup model R 1254 fig 10 4a is Identical to Loadside model except for a rampgate in the right hand pickup box side All four Corvair 95 series models utilize forward controls rear mounted engine dropped center underbody side and rear doors that open either 95 or a full 180 for easy access to loading areas FRONT END STRUCTURE Common to all models the front end structure consists of an inner panel toe board hinge pillars and instrument panel attached to an outer panel assembly connected at the top by windshield pillars and a windshield header panel All components shown in Figures 10 6a and 10 7a are welded together A plenum chamber for the intake of fresh air into the interior is incorporated in the front end structure The windshield wiper transmissions and links are CORVAiR SHOP MANUAL
