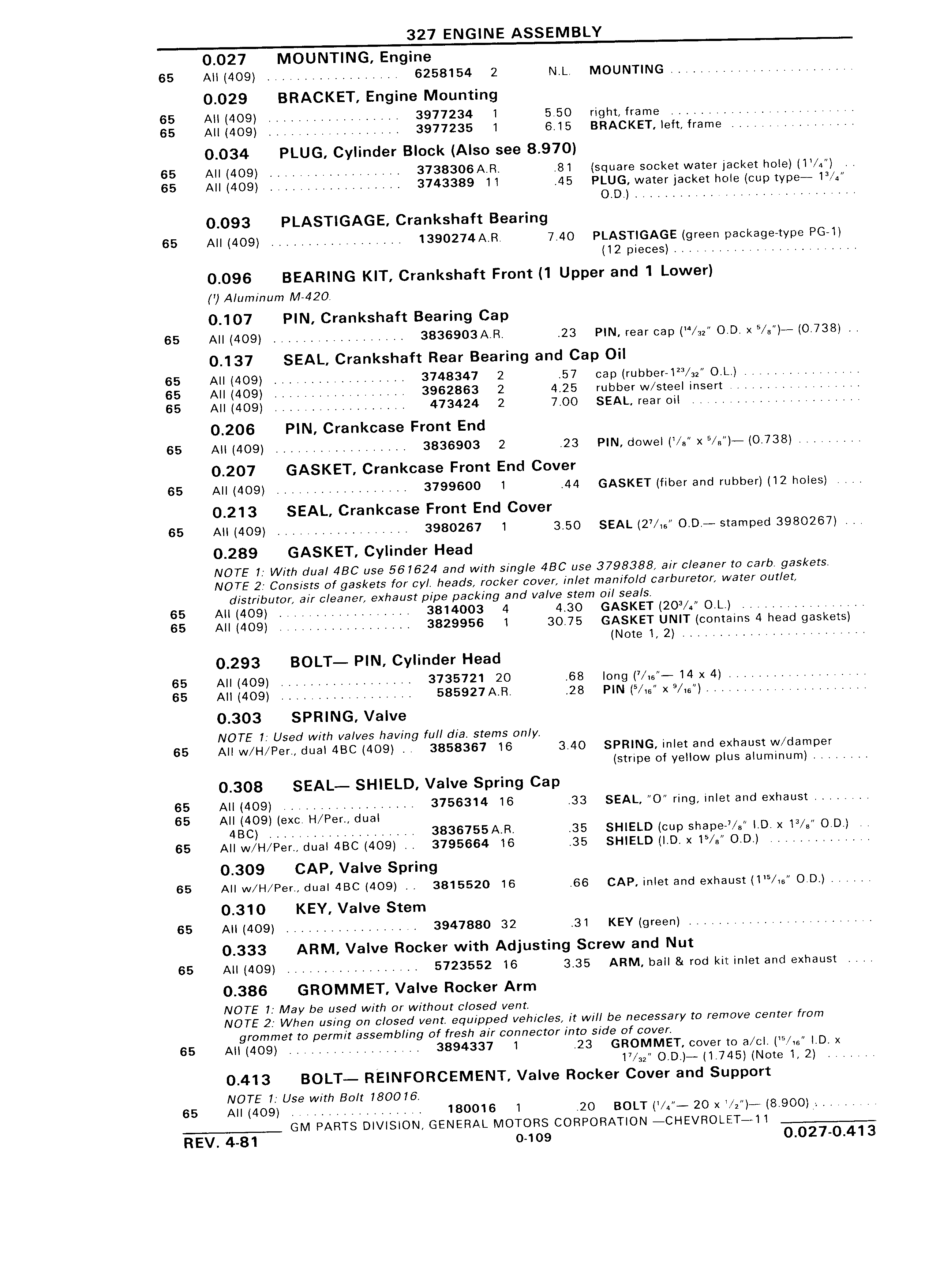

327 ENGINE ASSEMBLY 0 027 MOUNTING Engine 65 All 409 6258154 2 N L MOUNTING 4 0 029 BRACKET Engine Mounting 65 All 409 3977234 1 5 50 right frame 65 All 409 3977235 1 6 15 BRACKET left frame 0 034 PLUG Cylinder Block Also see 8 970 65 All 409 3738306 A R 81 square socket water jacket hole 1 65 All 409 3743389 11 45 PLUG water jacket hole cup type 13 0 D 0 093 PLASTIGAGE Crankshaft Bearing 65 All 409 1390274 A R 7 40 PLASTIGAGE green package type PG 1 12 pieces 0 096 BEARING KIT Crankshaft Front 1 Upper and 1 Lower Aluminum I l 420 0 107 PIN Crankshaft Bearing Cap 65 All 409 3836903 A FI 23 PIN rear cap I4 gzu 0 0 x 5 0 738 0 137 SEAL Crankshaft Rear Bearing and Cap Oil 65 All 409 3748347 2 57 cap rubber l gz O l 65 All 409 3962863 2 4 25 rubber w steel insert 65 All 409 473424 2 7 00 SEAL rear oil 0 206 PIN Crankcase Front End 65 All 409 3836903 2 23 PIN dovvel B x WB 0 738 0 207 GASKET Crankcase Front End Cover 65 All 409 3799600 1 44 GASKET fiber and rubber 12 holes 0 213 SEAL Crankcase Front End Cover 65 AII 409 3980267 1 3 50 SEAL 2 i6 0 D stamped 3980267 0 289 GASKET Cylinder Head NOTE 1 With dual 4BC use 561624 and with single 4BC use 3798388 air cleaner to carb gaskets NOTE 2 Consists of gaskets for cyl heads rocker cover inlet manifold carburetor water outlet distributor air cleaner exhaust pipe packing and valve stem oil seals 65 AII 409 3814003 4 4 30 GASKET 20 O L 65 All 409 3829956 1 30 75 GASKET UNIT contains 4 head gaskets Note 1 2 0 293 BOLT PIN Cylinder Head 65 All 409 3735721 20 68 long 7 5 14 x 4 65 AII 409 585927 A R 28 PIN 5 x 9 0 303 SPRING Valve NOTE 1 Used with valves having full dia stems only 65 All w H Per dual 4BC 409 3858367 16 3 40 SPRING inlet and exhaust w damper stripe of yellow plus aluminum 0 308 SEAL SHIELD Valve Spring Cap 65 All 409 3756314 16 33 SEAL 0 ring inlet and exhaust 65 All 409 exc H Per dual 4BC 3836755 A R 35 SHIELD cup shape a I D x 13 8 O D 65 All w H Per dual 4BC 409 3795664 16 35 SHIELD I D x 15 B 0 D 0 309 CAP Valve Spring 65 All w H Per dual 4BC 409 3815520 16 66 CAP inlet and exhaust 1 5 G O D 0 310 KEY Valve Stem 65 All 409 3947880 32 31 KEY green 0 333 ARM Valve Rocker with Adjusting Screw and Nut 65 All 409 5723552 16 3 35 ARM ball rod kit inlet and exhaust 0 386 GROMMET Valve Rocker Arm NOTE 1 May be used with or without closed vent NOTE 2 When using on closed vent equipped vehicles it will be necessary to remove center from grommet to permit assembling of fresh air connector into side of cover 65 All 409 3894337 1 23 GROMMET cover to a cl 5 ia l D x 4 17 S2 0 0 1 745 Note 1 2 0 413 BOLT REINFORCEMENT Valve Rocker Cover and Support NOTE 1 Use with Bolt 180016 65 All 409 180016 1 20 BOLT 4 20 x V2 8 900 GIVI PARTS DIVISION GENERAL MOTORS CORPORATION CHEVROLET 11 i REV 4 81 0 109 0 027 0 413
