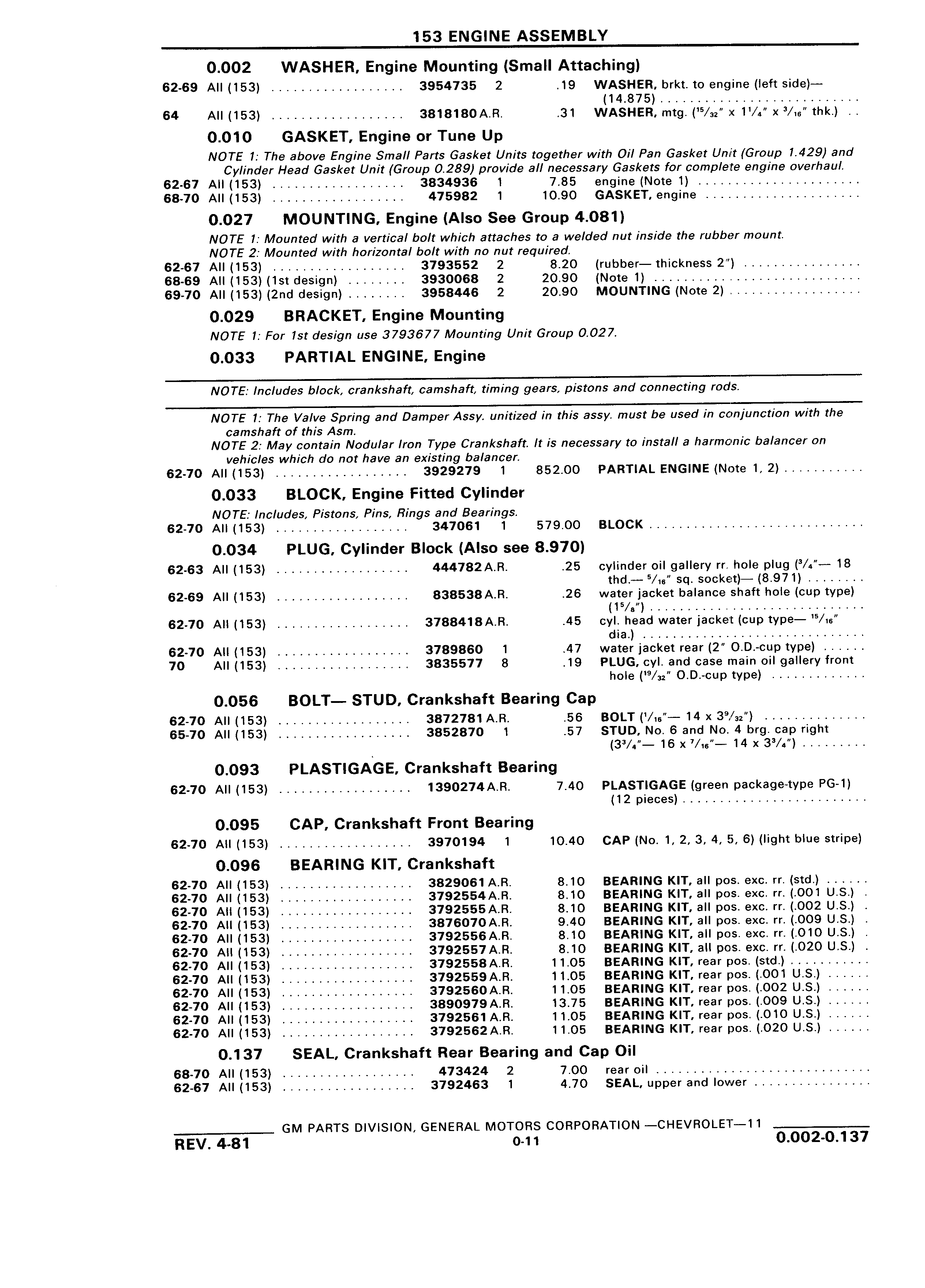

153 ENGINE ASSEMBLY 0 002 WASHER Engine Mounting Small Attaching 62 69 All 153 3954735 2 19 WASHER brkt to engine left side 14 875 64 All 153 3818180 A R 31 WASHER mtg 5 gz x 1 x 6 thk 0 010 GASKET Engine or Tune Up NOTE 1 The above Engine Small Parts Gasket Units together with Oil Pan Gasket Unit Group 1 429 and Cylinder Head Gasket Unit Group 0 289 provide all necessary Gaskets for complete engine overhaul 62 67 All 153 3834936 1 7 85 engine Note 1 68 70 All 153 475982 1 10 90 GASKET engine 0 027 MOUNTING Engine Also See Group 4 081 NOTE 1 Mounted with a vertical bolt which attaches to a welded nut inside the rubber mount NOTE 2 Mounted with horizontal bolt with no nut required 62 67 All 153 3793552 2 8 20 rubber thickness 2 68 69 All 153 1st design 3930068 2 20 90 Note 1 69 70 All 153 2nd design 3958446 2 20 90 MOUNTING Note 2 0 029 BRACKET Engine Mounting NOTE 1 For 1st design use 3793677 Mounting Unit Group 0 027 0 033 PARTIAL ENGINE Engine NOTE Includes block crankshaft camshaft timing gears pistons and connecting rods NOTE 1 The Valve Spring and Damper Assy unitized in this assy must be used in conjunction with the camshaft of this Asm NOTE 2 May contain Nodular Iron Type Crankshaft lt is necessary to install a harmonic balancer on vehicles which do not have an existing balancer 62 70 All 153 3929279 1 852 00 PARTIAL ENGINE Note 1 2 0 033 BLOCK Engine Fitted Cylinder NOTE Includes Pistons Pins Rings and Bearings 62 70 All 153 347061 1 579 00 BLOCK 0 034 PLUG Cylinder Block Also see 8 970 62 63 All 153 444782 A R 25 cylinder oil gallery rr hole plug 3 18 thd 5 is sq socket 8 971 62 69 All 153 838538 A R 26 water jacket balance shaft hole cup type 15 62 70 All 153 3788418 A R 45 cyl hlead water jacket cup type 5 is dia 62 70 All 153 3789860 1 47 water jacket rear 2 O D cup type 70 All 153 3835577 8 19 PLUG cyl and case main oil gallery front hole gz O D cup type 0 056 BOLT STUD Crankshaft Bearing Cap 62 70 All 153 3872781 A R 56 BOLT 6 14 x 39 gz 65 70 All 153 3852870 1 57 STUD No 6 and No 4 brg cap right 33 16 x 6 14 x 3 0 093 PLASTIGAGE Crankshaft Bearing 62 70 All 153 1390274 A R 7 40 PLASTIGAGE green package type PG 1 12 pieces 0 095 CAP Crankshaft Front Bearing 62 70 All 153 3970194 1 10 40 CAP No 1 2 3 4 5 6 light blue stripe 0 096 BEARING KIT Crankshaft 62 70 All 153 3829061 A R 8 10 BEARING KIT all pos exc rr std 62 70 All 153 3792554 A R 8 10 BEARING KIT all pos exc rr 001 U S 62 70 All 153 3792555 A R 8 10 BEARING KIT all pos exc rr 002 U S 62 70 All 153 3876070 A R 9 40 BEARING KIT all pos exc rr 009 U S 62 70 All 153 3792556 A R 8 10 BEARING KIT all pos exc rr 010 U S 62 70 All 153 3792557 A R 8 10 BEARING KIT all pos exc rr 020 U S 62 70 All 153 3792558 A R 11 05 BEARING KIT rear pos std 62 70 All 153 3792559 A R 11 05 BEARING KIT rear pos 001 U S 62 70 All 153 3792560 A R 11 05 BEARING KIT rear pos 002 U S 62 70 All 153 3890979 A R 13 75 BEARING KIT rear pos 009 U S 62 70 All 153 3792561 A R 11 05 BEARING KIT rear pos 010 U S 62 70 All 153 3792562 A R 11 05 BEARING KIT rear pos 020 U S 0 137 SEAL Crankshaft Rear Bearing and Cap Oil 68 70 All 153 473424 2 7 00 rear oil 62 67 All 153 3792463 1 4 70 SEAL upper and lower GM PARTS DIVISION GENERAL MOTORS CORPORATION CHEVROLE1 11 REV 4 81 0 11 0 002 0 1 37
