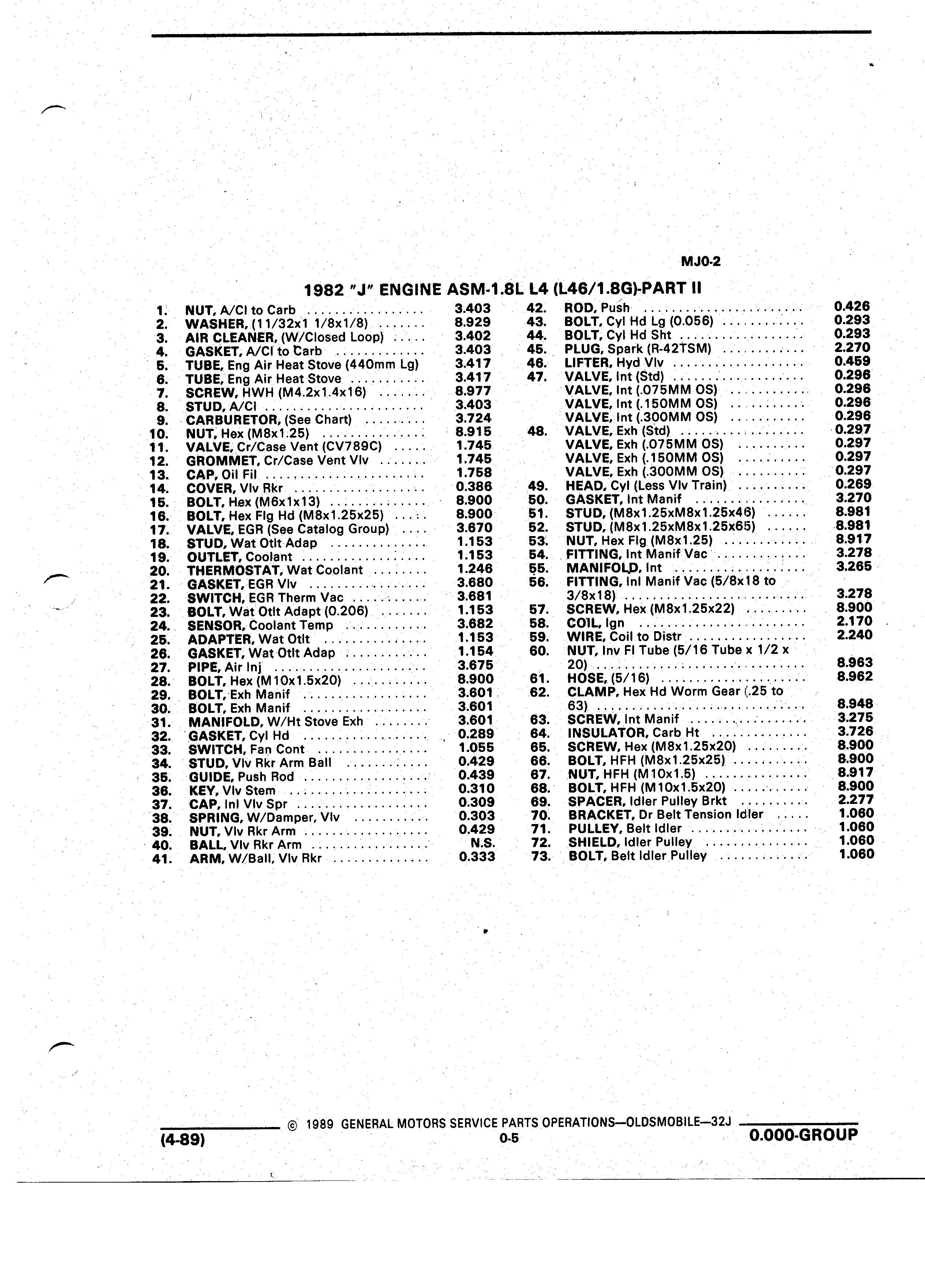

U MJO 2 I 1982 J ENGINE ASM 1 8L L4 L46 1 86 PART II I 1Q NUT A CI to Carb 3 403 42 ROD Push 4 0 426 4 2 WASHER 1 1 32x 1 1 8xl 8 8 929 43 BOLT Cyl Hd Lg 0 056 0 293 i 3 AIR CLEANER W Closed Loop 3 402 44 BOLT Cyl Hd Sht I 0 293 4 GASKET A CI to Carb 3 403 45 PLUG Spark R 42TSM V 2 270 V 5 TUBE Eng Air Heat Stove 440mm Lg 3 417 46 LIFTER Hyd Vlv 0 459 6 TUBE Eng Air Heat Stove 3 417 47 VALVE Int Std V 0 296 7 SCREW HWH M4 2x1 4x16 E 8 977 VALVE Int 075MM OS 0 296 8 STUD A CI 3 403 VALVE Int 150MM OS 0 296 9 CARBURETOR See Chart 3 724 VALVE Int 30OMM OS 0 296 10 NUT Hex M8x1 25 Q 8 915 48 VALVE Exh Std 0 297 1 1 VALVE VCr Case Vent CV789C 1 745 VALVE Exh 075MM OS 0 297 12 GROMMET Cr Case Vent Vlv 1 745 VALVE Exh 150MM OS 0 297 A 13 CAP Oil Fil 1 758 VALVE Exh 300MM OS 0 297 14 COVER Vlv Rkr 0 386 49 HEAD Cyl Less Vlv Train 0 269 15 BOLT Hex M6x1x13 8 900 50 GASKET Int Manif 3 270 16 BOLT Hex Flg Hd M8x1 25x25 8 900 51 STUD M8x1 25xM8x1 25x4l 5 8 981 17 VALVE EGR See Catalog Group 3 670 52 STUD M8x1 25xM 8x1 25x6 5 8 981 18 STUD Wat Otlt Adap 1 153 53 NUT Hex Flg M8x1 25 8 917 19 OUTLET Coolant J 1 153 54 FITTING Int Manif Vac 3 278 20 THERMOSTAT Wat Coolant 1 246 55 MANIFOLD Int Q 3 265 21 GASKET EGR Vlv 3 680 56 FITTING lnl Manif Vac 5 8xI8 to 22 SWITCH EGR Therm Vac 3 681 3 8x18 3 278 23 BOLT Wat Otlt Adapt 0 206 1 153 57 SCREW Hex M 8x1 25x22 8 900 24 SENSOR Coolant Temp 3 682 58 C01L Ign 2 170 V 25 ADAPTER Wat Otlt 1 153 59 WIRE Coil to Distr 2 240 26 GASKET Wat OtIt Adap 1 154 60 NUT Inv FI Tube 5 16 Tube x 1 2 x 27 PIPE Air Inj 3 675 E 20 V 8 963 28 BOLT Hex M 10x1 5x20 8 900 61 HOSE 5 16 A 8 962 I 29 BOLT Exh Manif 3 601 62 CLAMP Hex Hd Worm Gear 25 to 30 BOLT Exh Manif 3 601 63 L 8 948 ll 31 MANIFOLD W Ht Stove Exh A 3 601 63 SCREW Int Manif 3 275 32 RGASKET Cyl Hd V 0 289 64 INSULATOR Carb Ht 3 726 33 SWITCH Fan Cont 1 055 65 SCREW Hex M8x1 25x20 8 900 34 STUD Vlv Rkr Arm Ball Q 0 429 66 BOLT HFH M8x1 25x25 8 900 35 GUIDE Push Rod 0 439 67 NUT HFH M 10x1 5 8 917 36 KEY Vlv Stem Q 0 310 68 BOLT HFH M10x1 5x20 8 900 37 CAP lnl Vlv Spr 0 309 69 SPACER Idler Pulley Brkt I 2 277 38 SPRING W Damper Vlv 0 303 70 BRACKET Dr Belt Tension Idler 1 060 39 NUT Vlv Rkr Arm 0 429 71 PULLEY Belt Idler 1 060 v 40 BALL Vlv Rkr Arm N S 72 SHIELD Idler Pulley 1 060 41 ARM W Ball Vlv Rkr 0 333 73 BOLT Belt ldler Pul ey 1 060 I f 1989 GENERAL MOTORS SERVICE PARTS 0PERATIONS 0LDSMOBILE 32J L 4 89 I 0 5 0 000 GROUP
