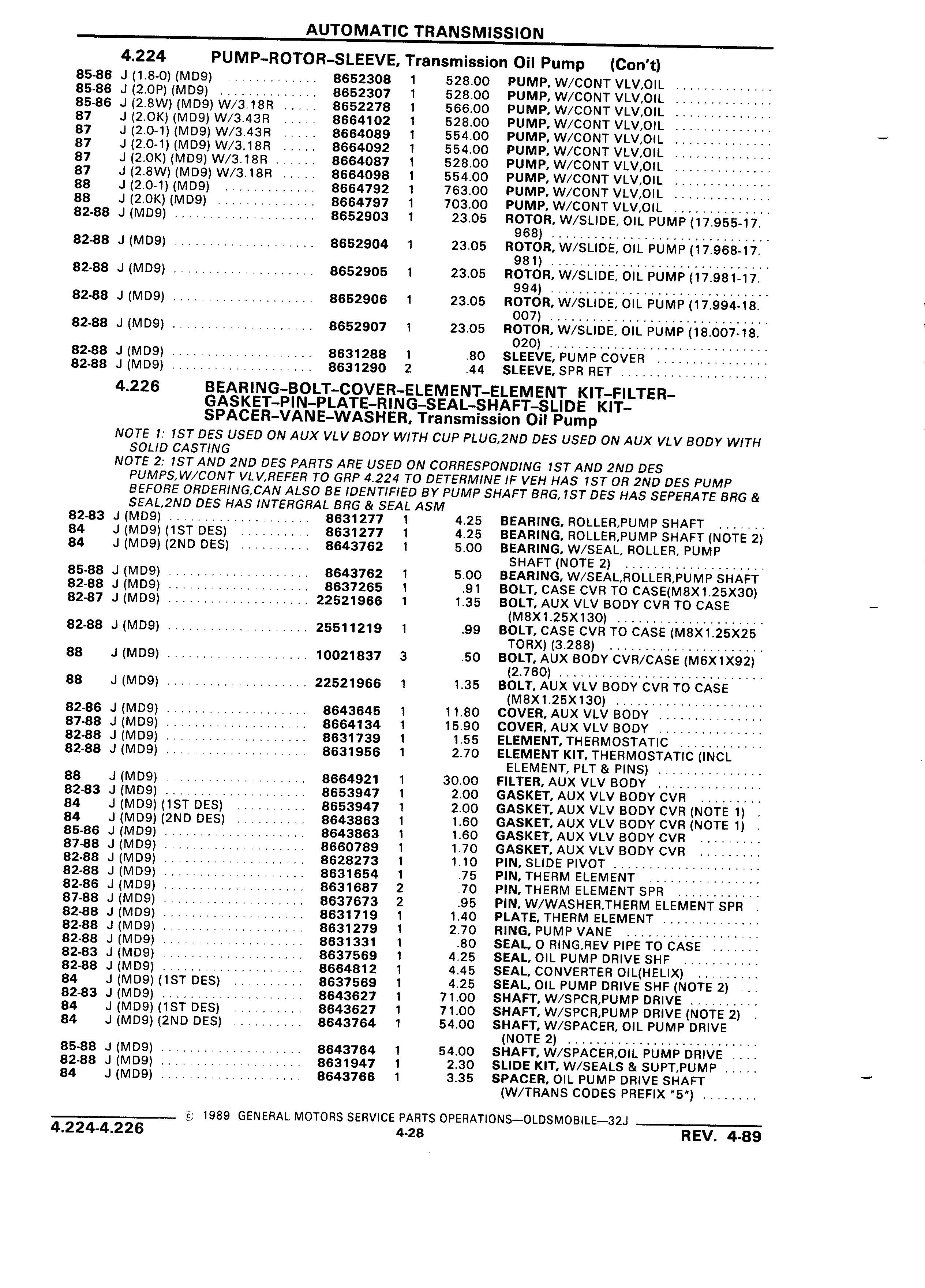

AUTOMATIC TRANSMISSION 4 224 PUMP ROTOR SLEEVE Transmission Oil Pump Con t 85 86 J 1 8 0 MD9 8652308 1 528 00 PUMP W CONT VLV OIL 85 86 J 2 0P MD9 4 8652307 1 528 00 PUMP W CONT VLV OIL 85 86 J 2 8W MD9 W 3 18R 8652278 1 566 00 PUMP W CONT VLV OIL 87 J 2 0K MD9 W 3 43R 8664102 1 528 00 PUMP W CONT VLV OIL 87 J 2 0 1 MD9 W 3 43R 8664089 1 554 00 PUMP W CONT VLV OIL 87 J 2 0 1 MD9 W 3 18R 8664092 1 554 00 PUMP W CONT VLV OIL 87 J 2 0K MD9 W 3 18R 8664087 1 528 00 PUMP W CONT VLV OIL 87 J 2 8W MD9 W 3 18R 8664098 1 554 00 PUMP W CONT VLV OIL 88 J 2 0 1 M D9 8664792 1 763 00 PUMP W CONT VLV OIL 88 J 2 0K MD9 8664797 1 703 00 PUMP W CONT VLV OIL 82 88 J MD9 8652903 1 23 05 ROTOR W SLIDE OIL PUMP 17 955 17 968 82 88 J MD9 8652904 1 23 05 ROTOR W SLIDE OIL PUMP 17 968 17 981 82 88 J MD9 8652905 1 23 05 ROTOR W SLIDE OIL PUMP 17 981 17 994 82 88 J MD9 8652906 1 23 05 ROTOR W SLIDE OIL PUMP 17 994 18 007 82 88 J MD9 8652907 1 23 05 ROTOR W SLIDE OIL PUMP 18 007 18 020 82 88 J MD9 8631288 1 80 SLEEVE PUMP COVER 82 88 J MD9 8631290 2 44 SLEEVE SPR RET 4 226 BEARING BOLT COVER ELEMENT ELEMENT KIT FILTER GASKET PIN PLATE RING SEAL SHAFT SL DE KIT SPACER VANE WASHER Transmission OiI Pump NOTE 1 IST DES USED ON AUX VLV BODY W TH CUP PLUG 2ND DES USED ON AUX VLV BODY WITH SOLID CASTING NOTE 2 1ST AND 2ND DES PARTS ARE USED ON CORRESPONDING 1ST AND 2ND DES PUMPS W CONT VLV REFER TO GRP 4 224 TO DETERMINE IF VEH HAS 1ST OR 2ND DES PUMP BEFORE ORDER NG CAN ALSO BE IDENTIFIED BY PUMP SHAFT BRG 1ST DES HAS SEPERATE BRG SEAL 2ND DES HAS INTEFIGRAL BRG SEAL ASM 82 83 J MD9 8631277 1 4 25 BEARING ROLLER PUMP SHAFT 84 J MD9 1ST DES 8631277 1 4 25 BEARING ROLLER PUMP SHAFT NOTE 2 84 J MD9 2ND DES 8643762 1 5 00 BEARING W SEAL ROLLER PUMP SHAFT NOTE 2 85 88 J MD9 8643762 1 5 00 BEARING W SEAL ROLLER PUMP SHAFT 82 88 J MD9 8637265 1 91 BOLT CASE CVR TO CASE M8X1 25X30 82 87 J MD9 22521966 1 1 35 BOLT AUX VLV BODY CVR TO CASE M8X1 25X130 82 88 J MD9 25511219 1 99 BOLT CASE CVR TO CASE M8X1 25X25 TORX 3 288 88 J MD9 10021837 3 50 BOLT AUX BODY CVR CASE M6X1X92 2 760 88 J MD9 22521966 1 1 35 BOLT AUX VLV BODY CVR TO CASE M8X1 25X130 82 86 J MD9 8643645 1 11 80 COVER AUX VLV BODY 87 88 J MD9 8664134 1 15 90 COVER AUX VLV BODY 82 88 J MD9 8631739 1 1 55 ELEMENT THERMOSTATIC 82 88 J MD9 8631956 1 2 70 ELEMENT KIT THERMOSTATIC INCL ELEMENT PLT PINS 88 J MD9 8664921 1 30 00 FILTER AUX VLV BODY 82 83 J MD9 8653947 1 2 00 GASKET AUX VLV BODY CVR 84 J MD9 1ST DES 8653947 1 2 00 GASKET AUX VLV BODY CVR NOTE 1 84 J MD9 2ND DES 8643863 1 1 60 GASKET AUX VLV BODY CVR NOTE 1 85 86 J MD9 8643863 1 1 60 GASKET AUX VLV BODY CVR 87 88 J MD9 8660789 1 1 70 GASKET AUX VLV BODY CVR 82 88 J MD9 8628273 1 1 10 PIN SLIDE PIVOT 82 88 J MD9 8631654 1 75 PIN THERM ELEMENT 82 86 J MD9 8631687 2 70 PIN THERM ELEMENT SPR 87 88 J MD9 8637673 2 95 PIN W WASHER THERM ELEMENT SPR 82 88 J MD9 8631719 1 1 40 PLATE THERM ELEMENT 82 88 J MD9 8631279 1 2 70 RING PUMP VANE 82 88 J MD9 8631331 1 80 SEAL O R NG REV PIPE TO CASE 82 83 J MD9 8637569 1 4 25 SEAL OIL PUMP DRIVE SHF 82 88 J MD9 8664812 1 4 45 SEAL CONVERTER OIL HELIX 84 J MD9 1ST DES 8637569 1 4 25 SEAL OIL PUMP DRIVE SHF NOTE 2 82 83 J MD9 8643627 1 71 00 SHAFT W SPCR PUMP DRIVE 84 J MD9 1ST DES 8643627 1 71 00 SHAFT W SPCR PUMP DRIVE NOTE 2 84 J MD9 2ND DES 8643764 1 54 00 SHAFT W SPACER OIL PUMP DRIVE NOTE 2 85 88 J MD9 8643764 1 54 00 SHAFT W SPACER OIL PUMP DRIVE 82 88 J MD9 8631947 1 2 30 SLIDE KIT W SEALS SUPT PUMP 84 J MD9 8643766 1 3 35 SPACER OIL PUMP DRIVE SHAFT W TRANS CODES PREFIX 5 1 JQ 1989 GENERAL MOTORS SERVICE PARTS OPERATIONS 0LDSMOBILE 32J 4 224 4 226 4 28 REV 4 89
