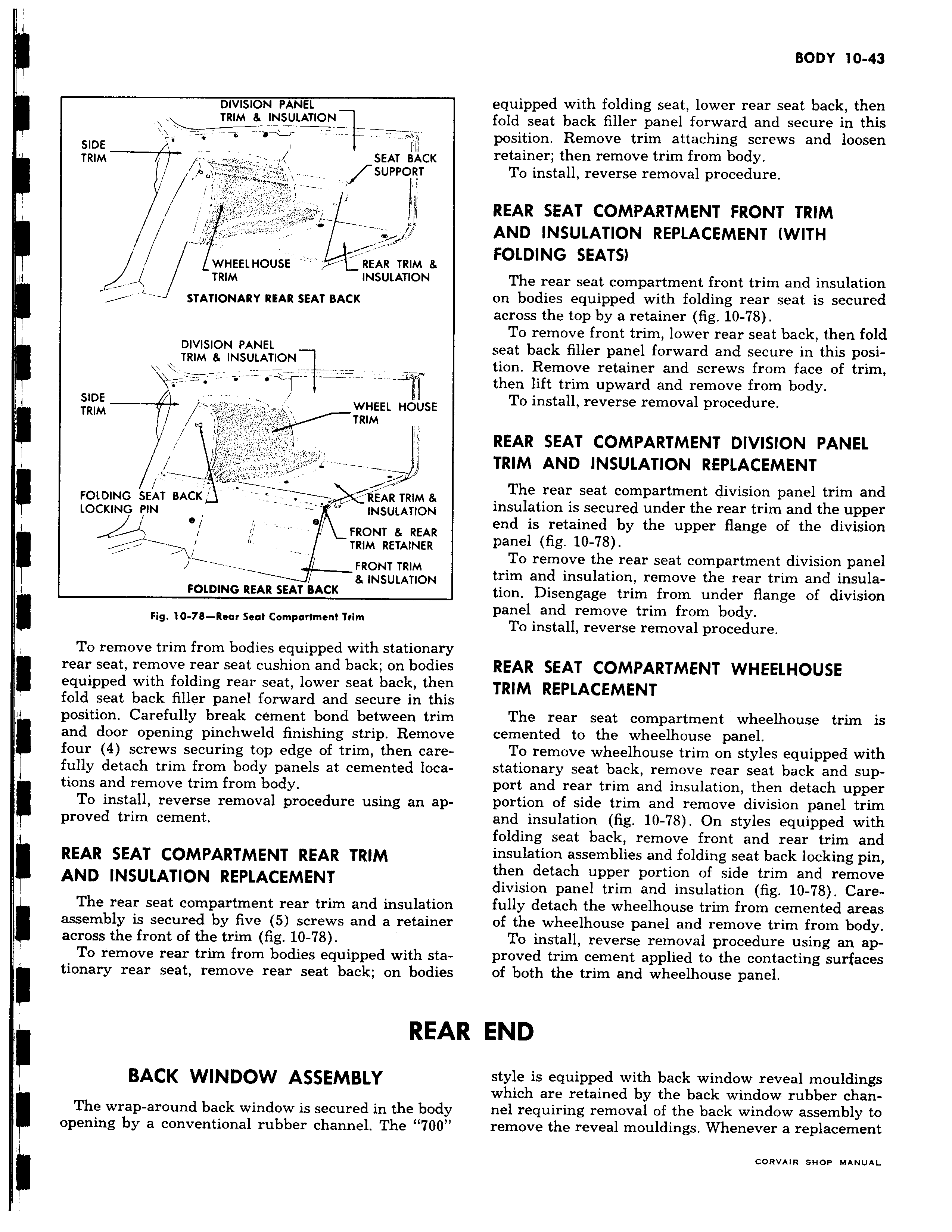

DIVISION PANEL TRIM 8 INSULATION SIDE TRIM SEAT BACK SUPPORT i r WHEELHOUSE REAR TRIM 8 TRIM INSULATION STATIONARY REAR SEAT BACK DIVISION PANEL TRIM 8 INSULATION v SIDE WHEEL H SE r TRIM TRIM FOLDING SEAT BACK A AR TRIM 8 LOCKING PIN SULATION T 8 REAR f RETAINER i NT TRIM SULATION FOLDING REAR SEAT BACK Fig 10 78 Rear Seat Compartment Trim To remove trim from bodies equipped with stationary rear seat remove rear seat cushion and back on bodies equipped with folding rear seat lower seat back then fold seat back filler panel forward and secure in this position Carefully break cement bond between trim and door opening pinchweld finishing strip Remove four 4 screws securing top edge of trim then carefully detach trim from body panels at cemented locations and remove trim from body To install reverse removal procedure using an approved trim cement I REAR SEAT COMPARTMENT REAR TRIM AND INSULATION REPLACEMENT The rear seat compartment rear trim and insulation assembly is secured by five 5 screws and a retainer across the front of the trim fig 10 78 To remove rear trim from bodies equipped with sta tionary rear seat remove rear seat back on bodie REA BACK WINDOW ASSEMBLY The wrap around back window is secured in the body opening by a conventional rubber channel The 700 r equipped with folding seat lower rear seat back then fold seat back filler panel forward and secure in this position Remove trim attaching screws and loosen retainer then remove trim from body To install reverse removal procedure REAR SEAT COMPARTMENT FRONT TRIM AND INSULATION REPLACEMENT WITH FOLDING SEATS The rear seat compartment front trim and insulation on bodies equipped with folding rear seat is secured across the top by a retainer fig 10 78 To remove front trim lower rear seat back then fold seat back filler panel forward and secure in this position Remove retainer and screws from face of trim then lift trim upward and remove from body To install reverse removal procedure REAR SEAT COMPARTMENT DIVISION PANEL TRIM AND INSULATION REPLACEMENT The rear seat compartment division panel trim and insulation is secured under the rear trim and the upper end is retained by the upper flange of the division panel fig 10 78 To remove the rear seat compartment division panel trim and insulation remove the rear trim and insulation Disengage trim from under flange of division panel and remove trim from body To install reverse removal procedure REAR SEAT COMPARTMENT WHEELHOUSE TRIM REPLACEMENT The rear seat compartment wheelhouse trim is cemented to the wheelhouse panel To remove wheelhouse trim on styles equipped with stationary seat back remove rear seat back and support and rear trim and insulation then detach upper portion of side trim and remove division panel trim and insulation fig 10 78 On styles equipped with folding seat back remove front and rear trim and insulation assemblies and folding seat back locking pin then detach upper portion of side trim and remove division panel trim and insulation fig 10 78 Carefully detach the wheelhouse trim from cemented areas of the wheelhouse panel and remove trim from body To install reverse removal procedure using an approved trim cement applied to the contacting surfaces of both the trim and wheelhouse panel R END style is equipped with back window reveal mouldings which are retained by the back window rubber channel requiring removal of the back window assembly to remove the reveal mouldings Whenever a replacement coRVaiw sNno rwsNUa1
