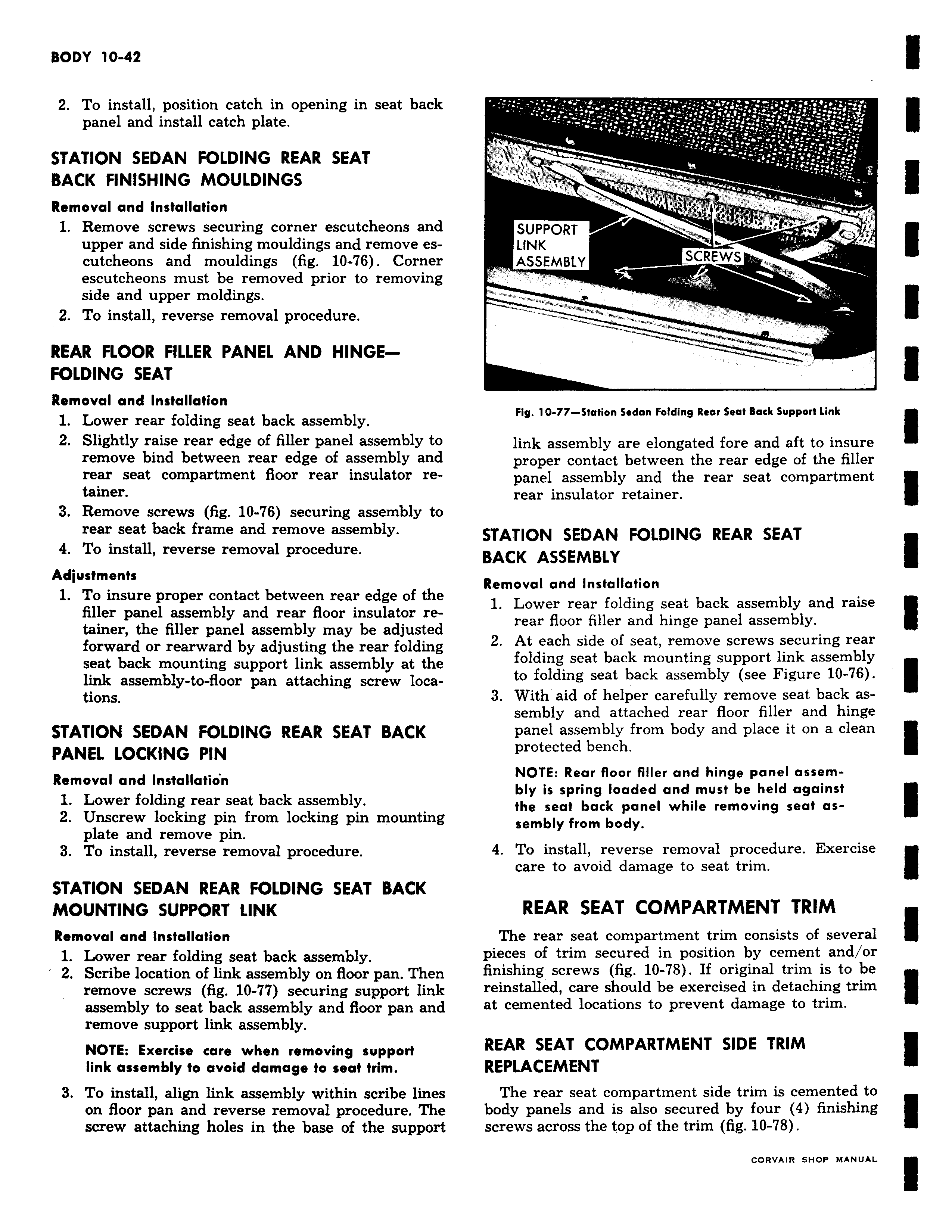

2 To install position catch in opening in seat back panel and install catch plate STATION SEDAN FOLDING REAR SEAT BACK FINISHING MOULDINGS Removal and Installation 1 Remove screws securing corner escutcheons and upper and side finishing mouldings and remove escutcheons and mouldings fig 10 76 Corner escutcheons must be removed prior to removing side and upper moldings 2 To install reverse removal procedure REAR FLOOR FILLER PANEL AND HINGEFOLDING SEAT Removal and Installation 1 Lower rear folding seat back assembly 2 Slightly raise rear edge of filler panel assembly to remove bind between rear edge of assembly and rear seat compartment floor rear insulator retainer 3 Remove screws fig 10 76 securing assembly to rear seat back frame and remove assembly 4 To install reverse removal procedure Adjustments 1 To insure proper contact between rear edge of the filler panel assembly and rear floor insulator retainer the filler panel assembly may be adjusted forward or rearward by adjusting the rear folding seat back mounting support link assembly at the link assembly to floor pan attaching screw locations STATION SEDAN FOLDING REAR SEAT BACK PANEL LOCKING PIN Removal and Installation 1 Lower folding rear seat back assembly 2 Unscrew locking pin from locking pin mounting plate and remove pin 3 To install reverse removal procedure STATION SEDAN REAR FOLDING SEAT BACK MOUNTING SUPPORT LINK Removal and Installation 1 Lower rear folding seat back assembly 2 Scribe location of link assembly on floor pan Then remove screws fig 10 77 securing support link assembly to seat back assembly and floor pan and remove support link assembly NOTE Exercise care when removing support link assembly to avoid damage to seat trim 3 To install align link assembly within scribe lines on floor pan and reverse removal procedure The screw attaching holes in the base of the support 11 rl SUPPORT LINK ASSEMBLY SCREwS a Fig 10 77 Station Sedan Folding Rear Seat Back Support Link link assembly are elongated fore and aft to insure proper contact between the rear edge of the filler panel assembly and the rear seat compartment rear insulator retainer STATION SEDAN FOLDING REAR SEAT BACK ASSEMBLY Removal and Installation 1 Lower rear folding seat back assembly and raise rear floor filler and hinge panel assembly 2 At each side of seat remove screws securing rear folding seat back mounting support link assembly to folding seat back assembly see Figure 10 76 3 With aid of helper carefully remove seat back assembly and attached rear floor filler and hinge panel assembly from body and place it on a clean protected bench NOTE Rear floor filler and hinge panel assembly is spring loaded and must be held against the seat back panel while removing seat assembly from body 4 To install reverse removal procedure Exercise care to avoid damage to seat trim REAR SEAT COMPARTMENT TRIM The rear seat compartment trim consists of several pieces of trim secured in position by cement and or finishing screws fig 10 78 If original trim is to be reinstalled care should be exercised in detaching trim at cemented locations to prevent damage to trim REAR SEAT COMPARTMENT SIDE TRIM REPLACEMENT The rear seat compartment side trim is cemented to body panels and is also secured by four 4 finishing screws across the top of the trim fig 10 78 Cl1RV IR SH P MANUAL
