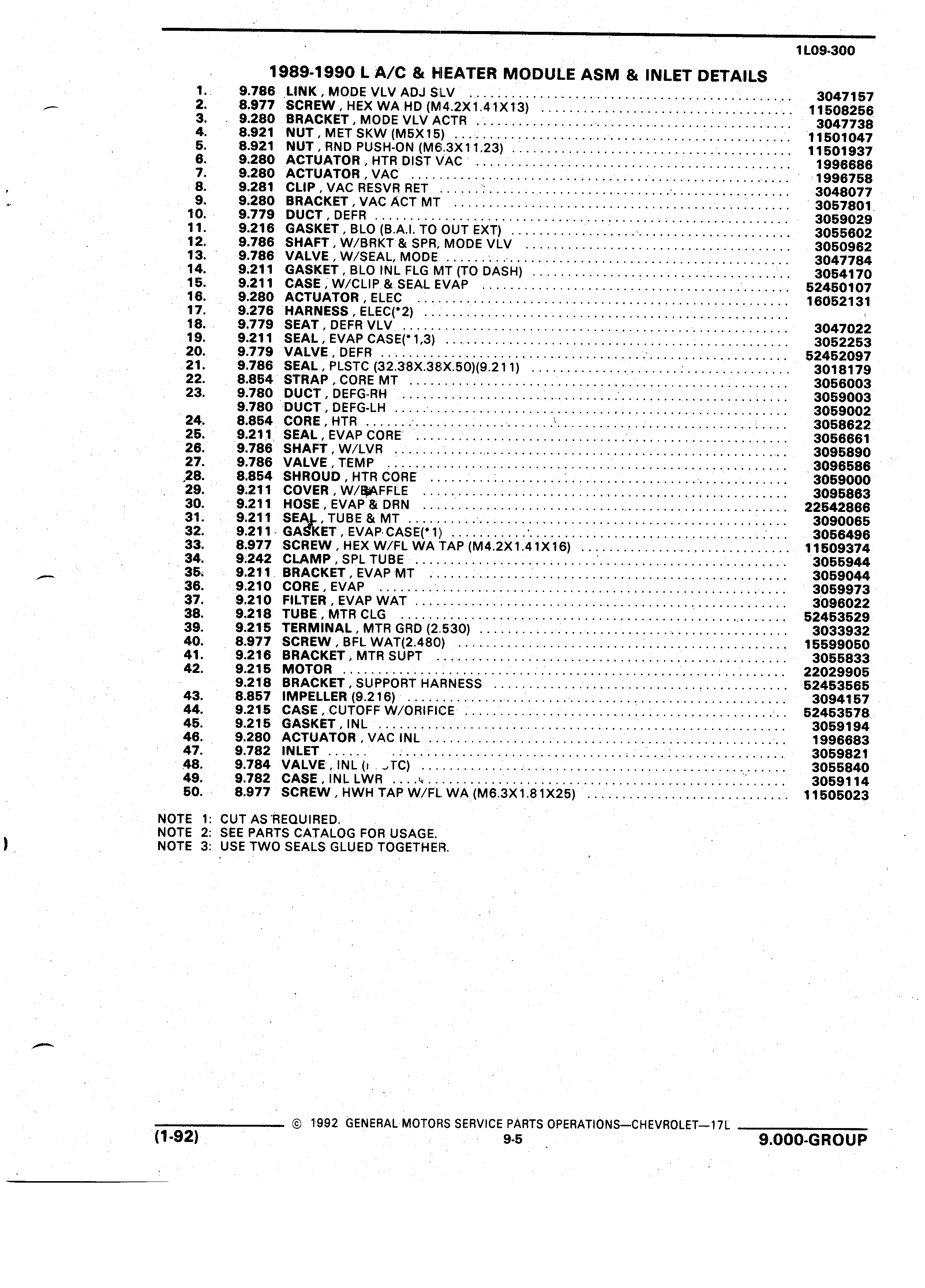

1L09 300 9 1989 1990 L A C HIEATER MODULE ASM INLET DETAILS 1 9 786 LINK MODE VLV ADJ S V 3047157 L 2 8 977 SCREW HEX WA HD M 4 2X1 4 1X13 1 1508256 3 9 280 BRACKET MODE VLV ACTR 3047738 V 4 8 921 NUT MET SKW M5X15 A A 11501047 5 8 921 NUT RND PUSH ON M i 3X11 23 11501937 6 9 280 ACTUATOR HTR DIST AC 1996686 7 9 280 ACTUATOR VAC V 1996758 Y 8 9 281 CLIP VAC RESVR RET 3048077 9 9 280 BRACKET VAC ACT MT Q 3057801 10 9 779 DUCT DEFR 3059029 11 9 216 GASKET BLO B A TO OUT EXT 3055602 12 9 786 SHAFT W BRKT SPR MODE VLV 3050962 13 9 786 VALVE W SEAL MODE 3047784 14 9 211 GASKET BLO INL FLG MT TO DASH 3054170 15 9 211 CASE Q W CLIP SEA L EVAP 52450107 16 9 280 ACTUATOR ELEC 16052131 17 9 276 HARNESS ELEC 2 18 9 779 SEAT DEFR VLV 3047022 19 9 211 SEAL EVAP CASE 1 3 3052253 20 9 779 VALVE DEFR 52452097 21 9 786 SEAL PLSTC 32 38X 3E X 50 9 211 3018179 22 8 854 STRAP CORE MT 3056003 23 9 780 DUCT DEFG RH 3059003 V 9 780 DUCT DEFG LH 3059002 24 8 854 CORE HTR 3058622 25 9 211 SEAL EVAP CORE 3056661 26 9 786 SHAFT W LVR 3095 890 27 9 786 VALVE TEMP 3096586 28 8 854 SHROUD HTR CORE L L 3059000 29 9 211 COVER W QAFFLE R 3095863 30 9 211 HOSE EVAP DRN 22542866 31 9 211 SE TUBE MT 3090065 V V 32 9 211 GA ET EVAP CASE 1 3056496 33 8 977 SCREW HEX W FL WA TAP M4 2X1 41X16 11509374 34 9 242 CLAMP SPL TUBE 3055944 352 9 211 BRACKET EVAP MT 3059044 A 36 9 210 CORE EVAP 3 059973 37 9 210 FILTER EVAP WAT Q 3096022 38 9 218 TUBE MTR CLG 52453529 39 9 2 15 TERMINAL MTR GRD 2 530 3033932 40 8 977 SCREW BFL WAT 2 480 Q 15599050 41 9 216 BRACKET MTR SUPT 3055833 42 9 215 MOT OR 22029905 V 9 218 BRACKET SUPPORT HARNESS 52453565 43 8 857 IMPELLER 9 216 3 094157 44 9 215 CASE CUTOFF W ORIFIICE 52453578 45 9 215 GASKET INL 3059194 46 9 280 ACTUATOR VAC INL 1996683 47 9 782 INLET L 3059821 48 9 784 VALVE INL s JTC 3055840 49 9 782 CASE INL LWR I 3059114 50 8 977 SCREW HWH TAP W FL WA M6 3X1 81X25 11505023 NOTE 1 CUT AS REOU RED NOTE 2 SEE PARTS CATALOG FOR USAGE J NOTE 3 USE TWO SEALS GLUED TOGETHER 1992 GENERALMOTOFIS SERVICE PARTS OPERAT 0NS CHEVROLET 17L 1 92 I 9 5 9 000 GROUP
