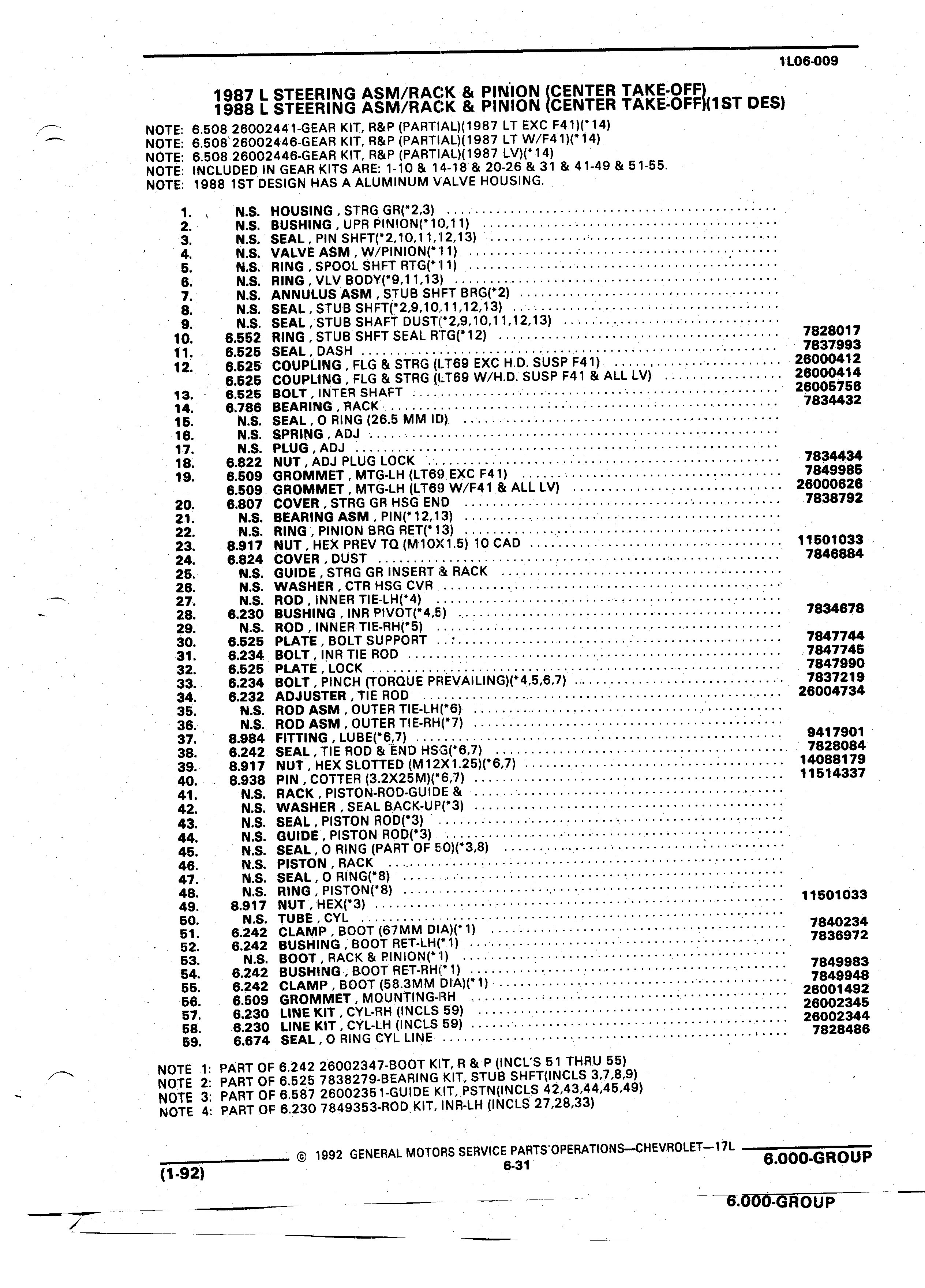

1L06 009 1987 L STEERING ASM RACK PINION CENTER TAKE OFF 1988 L STEERING ASM RACK PINION CENTER TAKE OFF 1ST DES NOTE S 508 26002441 GEAR KIT R P PARTIAL 1987 LT EXC F41 14 NOTE 6 508 26002446 GEAR KIT R P PARTIAL 1987 LT W F41 14 I NOTE 6 508 26002446 GEAR KIT R P PARTIAL 1987 LV 14 NOTE INCLUDED IN GEAR KITS ARE 1 10 14 18 20 26 31 41 49 51 55 NOTE 1988 1ST DESIGN HAS A ALUMINUM VALVE HOUSING 1 N S HOUSING STRG GR 2 3 J 2 N S BUSHING UPR PINION 10 11 E 3 N S SEAL PIN SHFT 2 10 11 12 13 n 4 N S VALVE ASM W PINION I1 5 N S RING SPOOL SHFT RTG I 1 8 N S RING VLV BODY 9 11 13 7 N S ANNULUS ASM STUB SHFT BRG 2 8 N S SEAL STUB SHFT 2 9 10 11 12 13 9 N S SEAL STUB SHAFT DUST 2 9 10 11 12 13 10 6 552 RING STUB SHFT SEAL RTG 12 7828017 11 6 525 SEAL DASH 7837993 12 I 6 525 COUPLING FLG STRG I T69 EXC H D SUSP F41 26000412 I A 6 525 COUPLING FLG STRG I T69 W H D SUSP F41 ALL LV 26000414 13 r 6 526 BOLT INTER SHAFT 26005758 14 I 6 786 BEARING RACK V 7834432 15 N S SEAL O RING 26 5 MM ID V 16 N S SPRING ADJ 17 N S PLUG ADJ 18 8 822 NUT ADJ PLUG LOCK 7834434 19 6 509 GROMMET MTG LH LT69 EXC F41 7849985 6 509 GROMMET MTG LH LT69 W F41 ALL LV 26000628 20 6 807 COVER STRG GR HSG END 7838792 21 N S BEARING ASM PIN 12 13 22 N S RING PINION BRG RET 13 23 8 917 NUT HEX PREV TO M 10 1 5 10 CAD I 11501033 24 6 824 COVER DUST 1 L 7846884 25 N S GUIDE STRG GR INSERT I RACK 28 N S WASHER CTR HSG CVR I 27 N S ROD INNER TIE LH 4 28 6 230 BUSHING INR PIVOT 4 5i 7834678 29 N S ROD INNER TIE RH 5 30 6 525 PLATE BOLT SUPPORT 7847744 V 31 6 234 BOLT INR TIE ROD 7847745 I 32 6 525 PLATE LOCK Q 7847990 A 33 6 234 BOLT PINCH TOROUE PFIEVAIL NG 4 5 6 7 7837219 34 6 232 ADJUSTER TIE ROD 26004734 35 N S ROD ASM OUTER TIE LH 6 I 36 Y N S ROD ASM OUTER TIE RH 7 1 37 8 984 FITTING LUBE 6 7 9417901 38 6 242 SEAL TIE ROD END HS G 6 7 7828084 39 8 917 NUT HEX SLOTTED M12X1 25 6 7 14088179 40 8 938 PIN COTTER 3 2X25M 6 7 11514337 I 41 N S RACK PISTON ROD GU DE I 42 N S WASHER SEAL BACK UF 3 I 43 N S SEAL PISTON ROD 3 I I A 44 N S GUIDE PISTON ROD 3 4 45 N S SEAL O RING PART OF 5i0 3 8 J 46 N S PISTON RACK 47 N S SEAL O RlNG 8 48 N S RING PISTON 8 49 8 917 NUT HEX 3 11501033 50 N S TUBE CYL 51 6 242 CLAMP BOOT 67MM DIA 1 7840234 52 6 242 BUSHING BOOT RET LH 1 7836972 53 N S BOOT RACK PINlON I 54 6 242 BUSHING BOOT RET RH 1 7849983 55 6 242 CLAMP BOOT 58 3MM DIA 1 7849948 56 6 509 GROMMET MOUNTING IRH 2 8001492 57 6 230 LINE KIT CYL RH INCLS 59 26002345 58 6 230 LINE KIT CYL LH INCLS 59 26002344 59 6 674 SEAL 0 RING CYL LINE 7828488 NOTE 1 PART OF 6 242 26002347 BOOT KIT R P INCL S 51 THRU 55 NOTE 2 PART OF 6 525 7838279 BEARING KIT STUB SHFT INCLS 3 7 8 9 NOTE 3 PART OF 6 587 26002351 GUIDE I LIT PS TN INCLS 42 43 44 45 49 NOTE 4 PART OF 6 230 7849353 ROD KIT INR LH INCLS 27 28 33 92 GENERAL Mmons seavncz PARTS 0PERATIONs CHEvROLET 17L 19 6 31 6 000 GROUP 1 92 1 In lr I r vLL I
