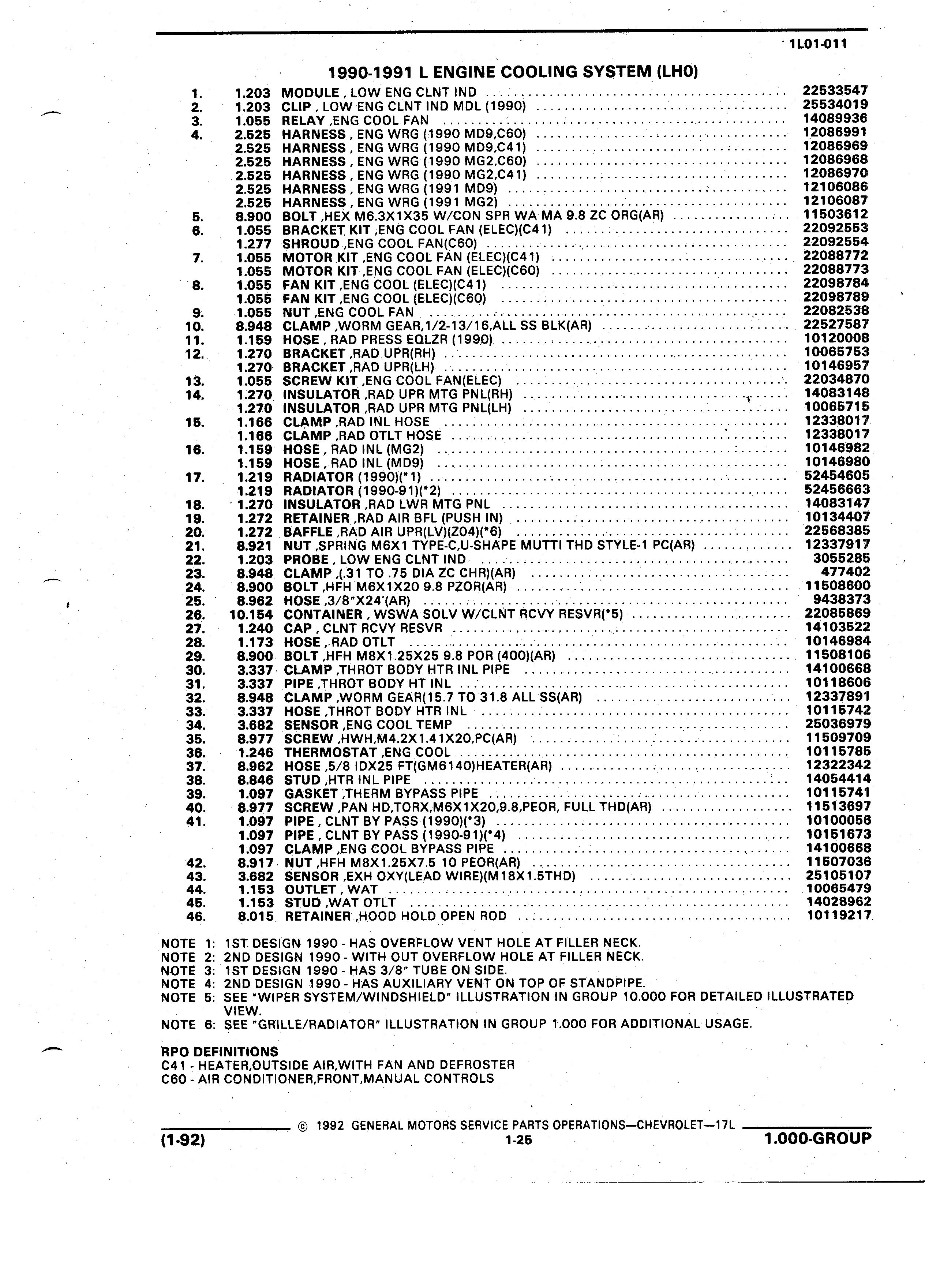

I I 1L01 011 1990 1991 L ENGINE COOLING SYSTEM LHO 1 1 203 MODULE LOW ENG CLNT IND 22533547 2 1 203 CLIP LOW ENG CLNT IND MDL 1990 V I 25534019 I 3 1 055 RELAY ENG COOL FAN L 14089936 4 2 525 HARNESS ENG WRG 1990 MD9 C60 12086991 2 525 HARNESS ENG WRG 1990 MD9 C41 12086969 7 2 525 HARNESS ENG WRG 1990 MG2 C60 12086968 2 525 HARNESS ENG WRG 1990 MG2 C41 12086970 2 525 HARNESS ENG WRG 1991 MD9 12106086 2 525 HARNESS ENG WRG 1991 MG2 12106087 5 8 900 BOLT HEX M6 3X1X35 W CON SPR WA MA 9 8 ZC ORG AR 11503612 6 1 055 BRACKET KIT ENG COOL FAN ELEC C41 22092553 1 277 SHROUD ENG COOL FAN C60 I I 22092554 7 1 055 MOTOR KIT ENG COOL FAN ELEC C41 22088772 1 055 MOTOR KIT ENG COOL FAN ELEC C60 22088773 8 1 055 FAN KIT ENG COOL ELEC C41 22098784 1 055 FAN KIT ENG COOL ELEC C60 22098789 9 1 055 NUT ENG COOL FAN 22082538 V 10 8 948 CLAMP WORM GEAR 1 2 13 16 ALL SS BLK AR 22527587 11 1 159 HOSE RAD PRESS EOLZR 1990 10120008 12 1 270 BRACKET RAD UPR RH 10065753 1 270 BRACKET RAD UPR LH 10146957 I 13 1 055 SCREW KIT ENG COOL FAN ELEC 22034870 14 1 270 INSULATOR RAD UPR MTG PNL RH 14083148 1 270 INSULATOR RAD UPR MTG PNL LH 10065715 15 1 166 CLAMP RAD INL HOSE 12338017 1 166 CLAMP RAD OTLT HOSE 7 12338017 16 1 159 HOSE RAD INL MG2 10146982 1 159 HOSE RAD INL MD9 10146980 I 17 1 219 RADIATOR 1990 I 52454605 1 219 RADIATOR 1990 91 2 52456663 18 7 1 270 INSULATOR RAD LWR MTG PNL 14083147 19 1 272 RETAINER RAD AIR BFL PUSH IN 10134407 V 20 1 272 BAFFLE RAD AIR UPR LV Z04 6 I 22568385 21 8 921 NUT SPRING M6X1 TYPE C U SHAPE MUTTI THD STYLE 1 PC AR 12337917 22 1 203 PROBE LOW ENG CLNT IND 3055285 f I 23 8 948 CLAMP 31 TO 75 DIA ZC CHR AR 477402 I 24 8 900 BOLT HFH M6X1X20 9 8 PZOR AR 11508600 25 8 962 HOSE 3 8 X24 AR 9438373 26 10 154 CONTAINER WSWA SOLV W CLNT RCVY RESVR 5 5 22085869 I 27 1 240 CAP CLNT RCVY RESVR 14103522 28 1 173 HOSE RAD OTLT 10146984 29 8 900 BOLT HFH M8X1 25X25 9 8 POR 400 AR 1 1508106 30 3 337 CLAMP THROT BODY HTR INL PIPE 14100668 31 3 337 PIPE THROT BODY HT INL 10118606 32 8 948 CLAMP WORM GEAR 15 7 TO 31 8 ALL SS AR 12337891 T 33 3 337 HOSE THROT BODY HTR INL 5 10115742 34 3 682 SENSOR ENG COOL TEMP A 25036979 35 8 977 SCREW HWH M4 2X1 41X20 PC AR 11509709 36 1 246 THERMOSTAT ENG COOL 10115785 37 8 962 HOSE 5 8 IDX25 FT GM6140 HEATER AR 12322342 38 8 846 STUD HTR INL PIPE L 14054414 7 39 1 097 GASKET LTHERM BYPASS PIPE A 1 0115741 40 8 977 SCREW PAN HD TORX M6X1X20 9 8 PEOR FULL THD AR 11513697 41 1 097 PIPE CLNT BY PASS I990 3 10100056 1 097 PIPE CLNT BY PASS 1990 91 4 10151673 1 097 CLAMP ENG COOL BYPASS PIPE 14100668 42 8 917 NUT HFH M8X1 25X7 5 10 PEOR AR 11507036 43 3 682 SENSOR EXH OXY LEAD W RE M18X1 5THD 25105107 44 1 153 OUTLET WAT 10065479 45 1 153 STUD WATIOTLT 14028962 46 8 015 RETAINER HOOD HOLD OPEN ROD 10119217 NOTE 1 1ST DESIGN 1990 HAS OVERFLOW VENT HOLE AT FILLER NECK NOTE 2 2ND DESIGN 1990 WITH OUT OVERFLOW HOLE AT FILLER NECK N OTE 3 1ST DESIGN 1990 HAS 3 8 TUBE ON SIDE NOTE 4 2ND DESIGN 1990 HAS AUXILIARY VENT ON TOP OF STANDPIPE V NOTE 5 SEE WIPER SYSTEM WINDSHIELD ILLUSTRATION IN GROUP 10 000 FOR DETAILED ILLUSTRATED VIEW NOTE 6 SEE GRILLE RADIATOR ILLUSTRATION IN GROUP 1 000 FOR ADDITIONAL USAGE RPO DEFINITIONS 0 C41 HEATER OUTS DE AIR WITH FAN AND DEFROSTER L C60 AIR COND T ONER FRONT MANUAL CONTROLS I L 1992 GENERAL MOTORS SERVICE PARTS 0PERATIONS CHEVROLET 17L A 1 92 1 25 1 000 GROUP
