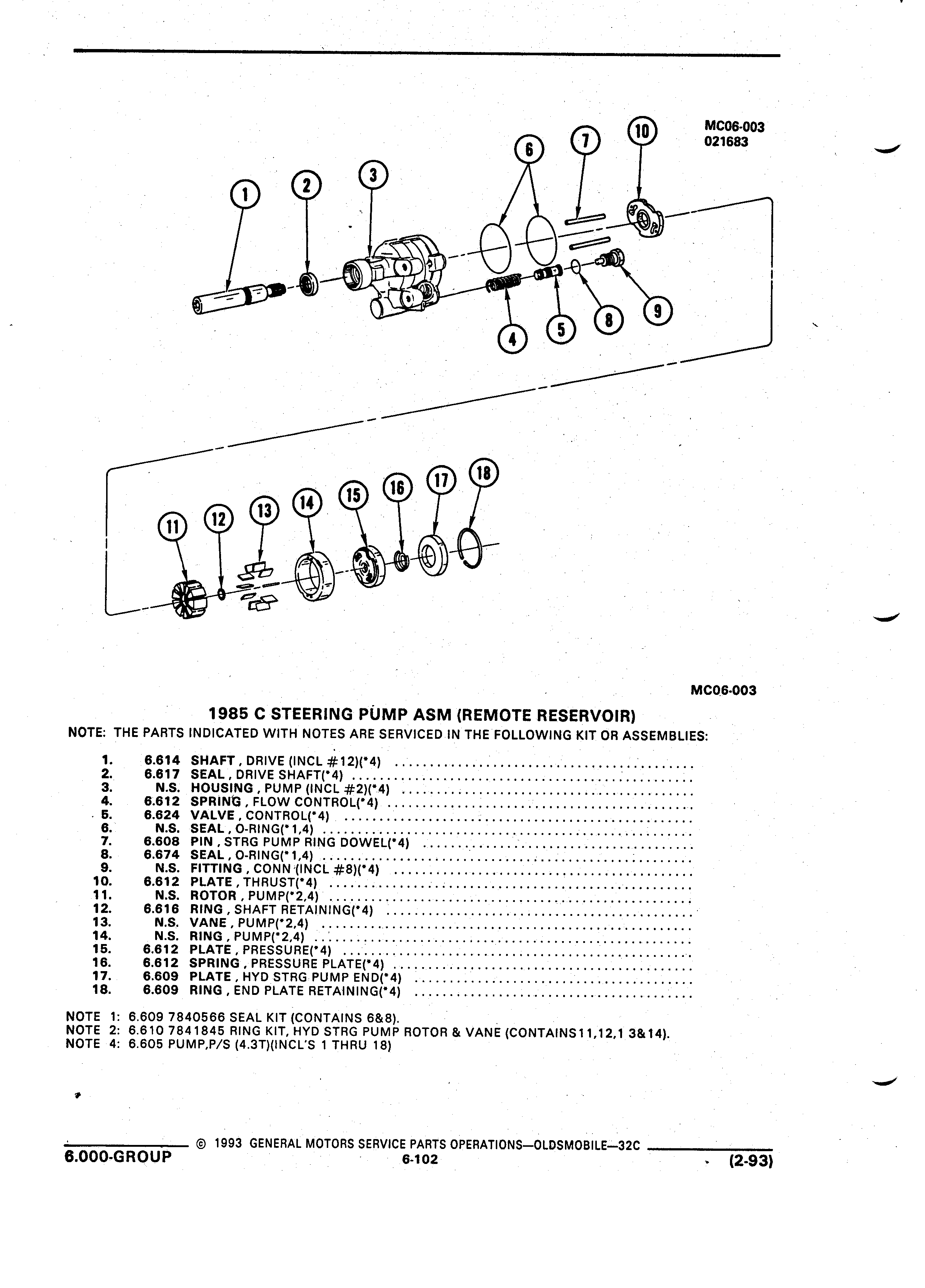

K w MC06 0O3 I 021683 I I sp Z I I I V4 Z I 1 I I 9 I g R 2 B g O I 9 1 1 c I J I 1 J l cc I 4 I r I I MC06 003 l 1985 C STEERING PUMP ASM REMOTE RESERVOIR A I NOTE THE PARTS INDICATED WITH NOTES ARE SERVICED IN THE FOLLOWING KIT OR ASSEMBLIES 1 6 614 SHAFT DRIVE INCL 12 4 I 2 6 617 SEAL DRIVE SHAFT 4 3 N S HOUSING PUMP INCL 2 4 4 6 612 SPRING FLOW CONTROL 4 I 5 6 624 VALVE CONTFIOL 4 6 N S SEAL O RING 1 4 7 6 608 PIN STRG PUMP RING DOWEL 4 8 6 674 SEAL O RING 1 4 L 9 N S FITTING CONN INCL 8 4 10 6 612 PLATE THRUST 4 I k 11 N S ROTOR PUMP 2 4 12 6 616 RING SHAFT RETAINING 4 13 N S VANE PUMP 2 4 14 N S RING PUMP 2 4 15 6 612 PLATE PRESSURE 4 16 6 612 SPRING PRESSURE PLATE 4 17 6 609 PLATE HYD STRG PUMP END 4 18 6 609 RING END PLATE RETAIN NG 4 NOTE 1 6 609 7840566 SEAL KIT CONTAINS 6 8 NOTE 2 6 610 7841845 RING KIT HYD STRG PUMP ROTOR VANE CONTAINS11 12 13 14 NOTE 4 6 605 PUMP P S 4 3T INCL S 1 THRU 18 J 1993 GENERAL MOTORS SERVICE PARTS 0PERATIONS 0LDSM08ILE 32C I 6 000 GROUP 6 102 2 93
