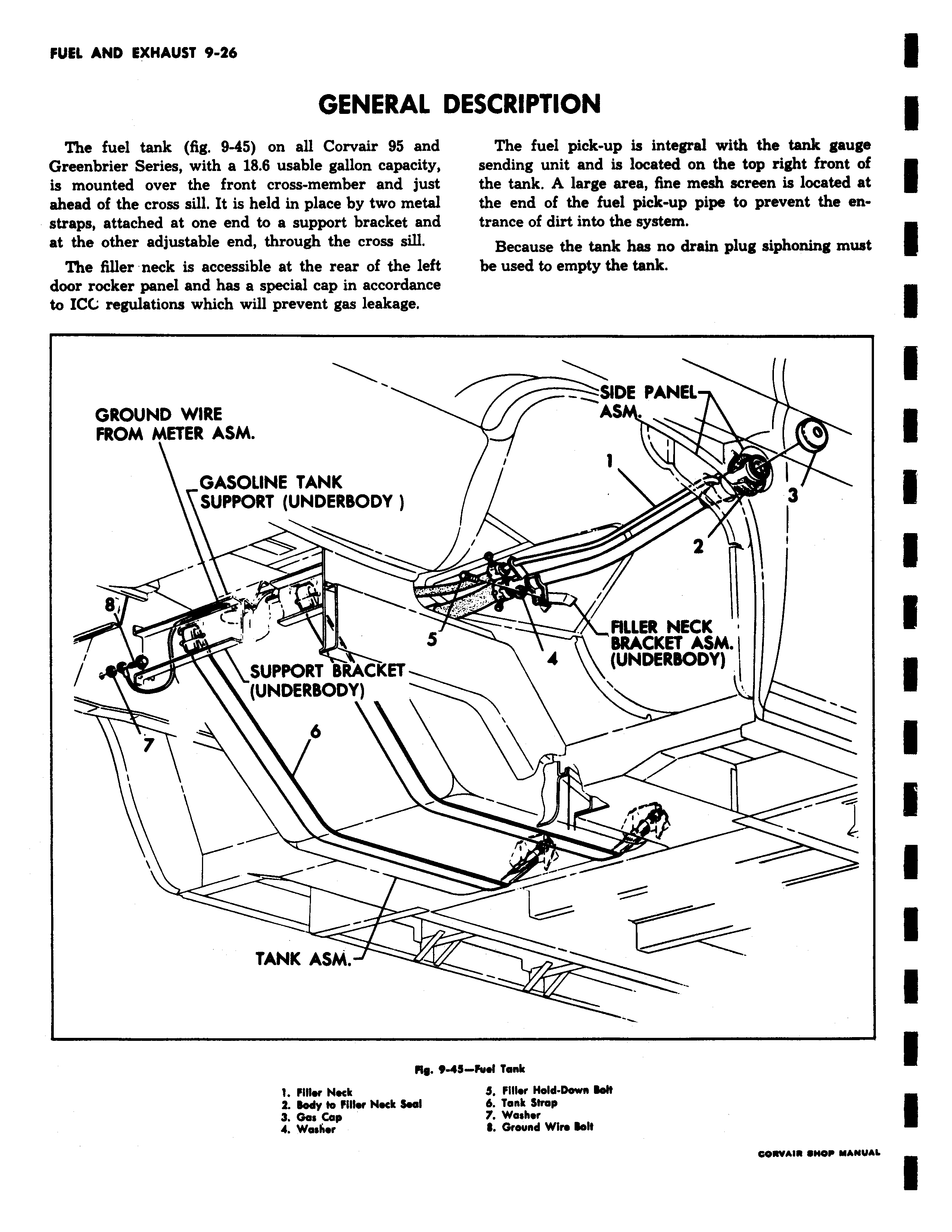

GENERAL C The fuel tank fig 9 45 on all Corvair 95 and Greenbrier Series with a 18 6 usable gallon capacity is mounted over the front cross member and just ahead of the cross sill It is held in place by two metal straps attached at one end to a support bracket and at the other adjustable end through the cross sill The filler neck is accessible at the rear of the left door rocker panel and has a special cap in accordance to ICG regulations which will prevent gas leakage GROUND WIRE FROM METER ASM GASOLINE TANK SUPPORT UNDERBODY 8 5 SUPPORTET UNDERBODY 6 TANK ASM FIl 9 1 Filler Neck 2 Body to Filler Neck Seat J Gas Cap 4 Washer IESCRIPTION The fuel pick up is integral with the tank gauge sending unit and is located on the top right front of the tank A large area fine mesh screen is located at the end of the fuel pick up pipe to prevent the entrance of dirt into the system Because the tank has no drain plug siphoning must be used to empty the tank SIDE PANEL AS v o w 1 z FILLER NECK BRACKET ASM I 4 UNDERBODY y w 3 Fuel Tank 5 Filler Hold Dwn Soft 6 Tank Shop 7 Washer 8 Ground Wire Belt COIIYAI SHOP MANUAL
