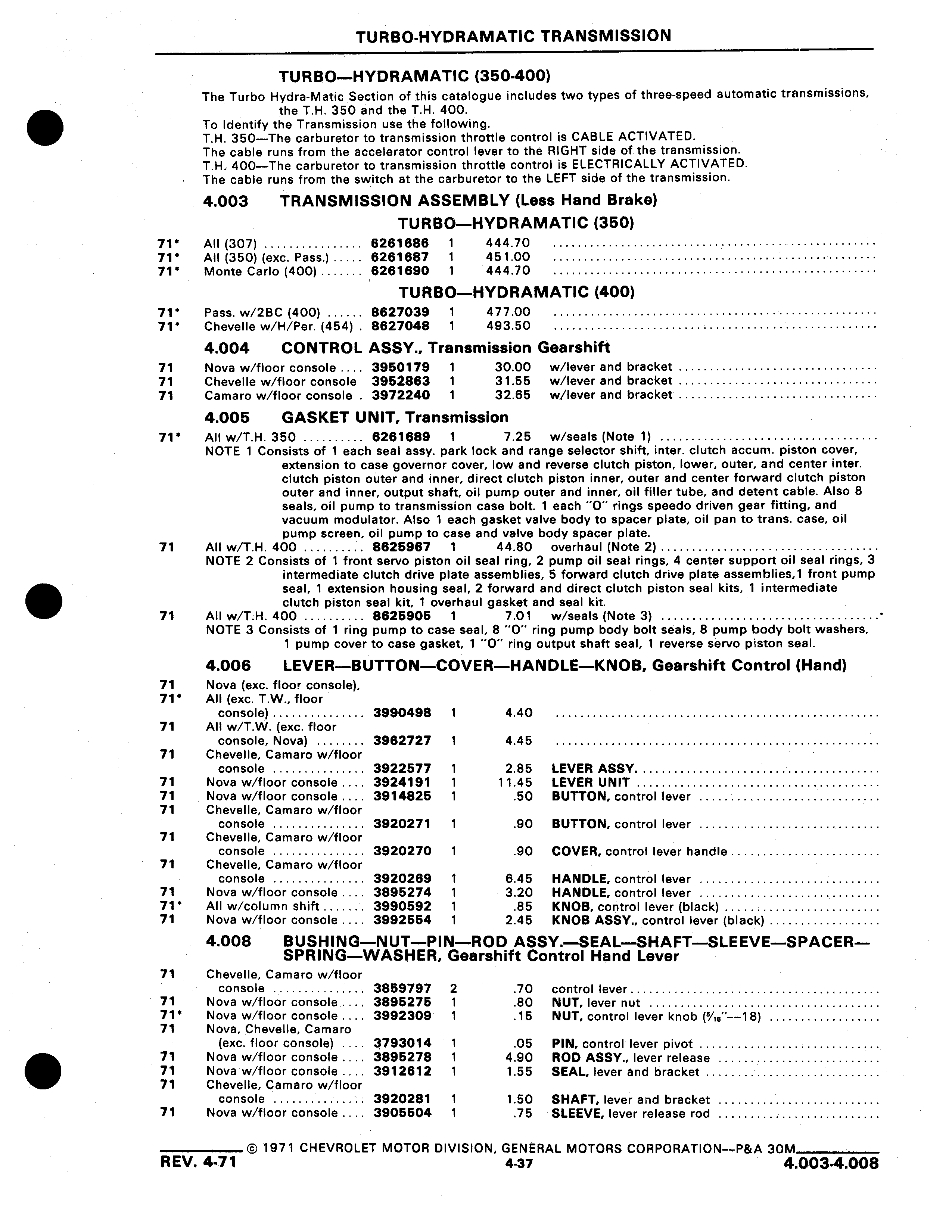

TURBO HYDRAMATIC TRANSMISSION TURBO HYDRAMATIC 350 400 The Turbo Hydra Matic Section of this catalogue includes two types of three speed automatic transmissions the T H 350 end the T H 400 To Identify the Transmission use the following 40 T H 350 The carburetor to transmission throttle control is CABLE ACTIVATED The cable runs from the accelerator control lever to the RIGHT side of the transmission T H 400 The carburetor to transmission throttle control is ELECTRICALLY ACTIVATED The cable runs from the switch at the carburetor to the LEFT side of the transmission 4 003 TRANSMISSION ASSEMBLY Less Hand Brake TURBO HYDRAMATIC 350 71 All 307 8281888 1 444 70 71 All 350 exc Pass 8281887 1 451 00 71 MonteCarlo 400 8281890 1 444 70 TURBO HYDRAMATIC 400 71 Pass w 28C 400 8827039 1 477 00 71 Chevellew H Per 454 8827048 1 493 50 4 004 CONTROL ASSY Transmission Gearshift 71 Nova w floor console 3950179 1 30 00 w lever and bracket 71 Chevelle w floor console 3952883 1 31 55 w lever and bracket 71 Camaro w floor console 3972240 1 32 65 w lever and bracket 4 005 GASKET UNIT Transmission 71 All w T H 350 8281889 1 7 25 w seals Note 1 NOTE 1 Consists of 1 each seal assy park lock and range selector shift inter clutch accum piston cover extension to case governor cover low and reverse clutch piston lower outer and center inter clutch piston outer and inner direct clutch piston inner outer and center forward clutch piston outer and inner output shaft oil pump outer and inner oil filler tube and detent cable Also 8 seals oil pump to transmission case bolt 1 each O rings speedo driven gear fitting and vacuum modulator Also 1 each gasket valve body to spacer plate oil pan to trans case oil pump screen oil pump to case and valve body spacer plate 71 All w T H 400 8825987 1 44 80 overhaul Note 2 NOTE 2 Consists of 1 front servo piston oil seal ring 2 pump oil seal rings 4 center support oil seal rings 3 intermediate clutch drive plate assemblies 5 forward clutch drive plate assemblies l front pump seal 1 extension housing seal 2 forward and direct clutch piston sealkits 1 intermediate clutch piston seal kit 1 overhaul gasket and seal kit 71 All w T H 400 8825905 1 7 01 w seals Note 3 NOTE 3 Consists of 1 ring pump to case seal 8 0 ring pump body bolt seals 8 pump body bolt washers 1 pump cover to case gasket 1 O ring output shaft seal 1 reverse servo piston seal 4 006 LEVER BUTTON COVER HANDLE KNOB Gearshift Control Hand 71 Nova exc floor console 71 All exc T W floor console 3990498 1 4 40 71 All w T W exc floor console Nova 3982727 1 4 45 71 Chevelle Camaro w floor console 3922677 1 2 85 LEVER ASSY 71 Nova w floor console 3924191 1 11 45 LEVER UNIT 71 Nova w floor console 3914825 1 50 BUTTON control lever 71 Chevelle Camaro w floor console 3920271 1 90 BUTTON control lever 71 Chevelle Camaro w floor console 3920270 1 90 COVER control lever handle 71 Chevelle Camaro w floor console 3920289 1 6 45 HANDLE control lever 71 Nova w floor console 3895274 1 3 20 HANDLE control lever T1 All w column shift 3990592 1 85 KNOB control lever black 71 Nova w floor console 3992554 1 2 45 KNOB ASSY control lever black 4 008 BUSHING NUT PIN ROD ASSY SEAL SHAFT SLEEVE SPACERSPRING WASHER Gearshift Control Hand Lever 71 Chevelle Camaro w floor console 3859797 2 70 control lever 71 Nova w floor console 3895275 1 80 NUT lever nut 71 Nova w floor console 3992309 1 15 NUT control lever knob 18 71 Nova Chevelle Camaro exc floor console 3793014 1 05 PIN control lever pivot 71 Nova w floor console 3895278 1 4 90 ROD ASSY lever release 71 Nova w floor console 3912812 1 1 55 SEAL lever and bracket 71 Chevelle Camaro w floor console 3920281 1 1 50 SHAFT lever and bracket 71 Nova w floor console 3905504 1 75 SLEEVE lever release rod
