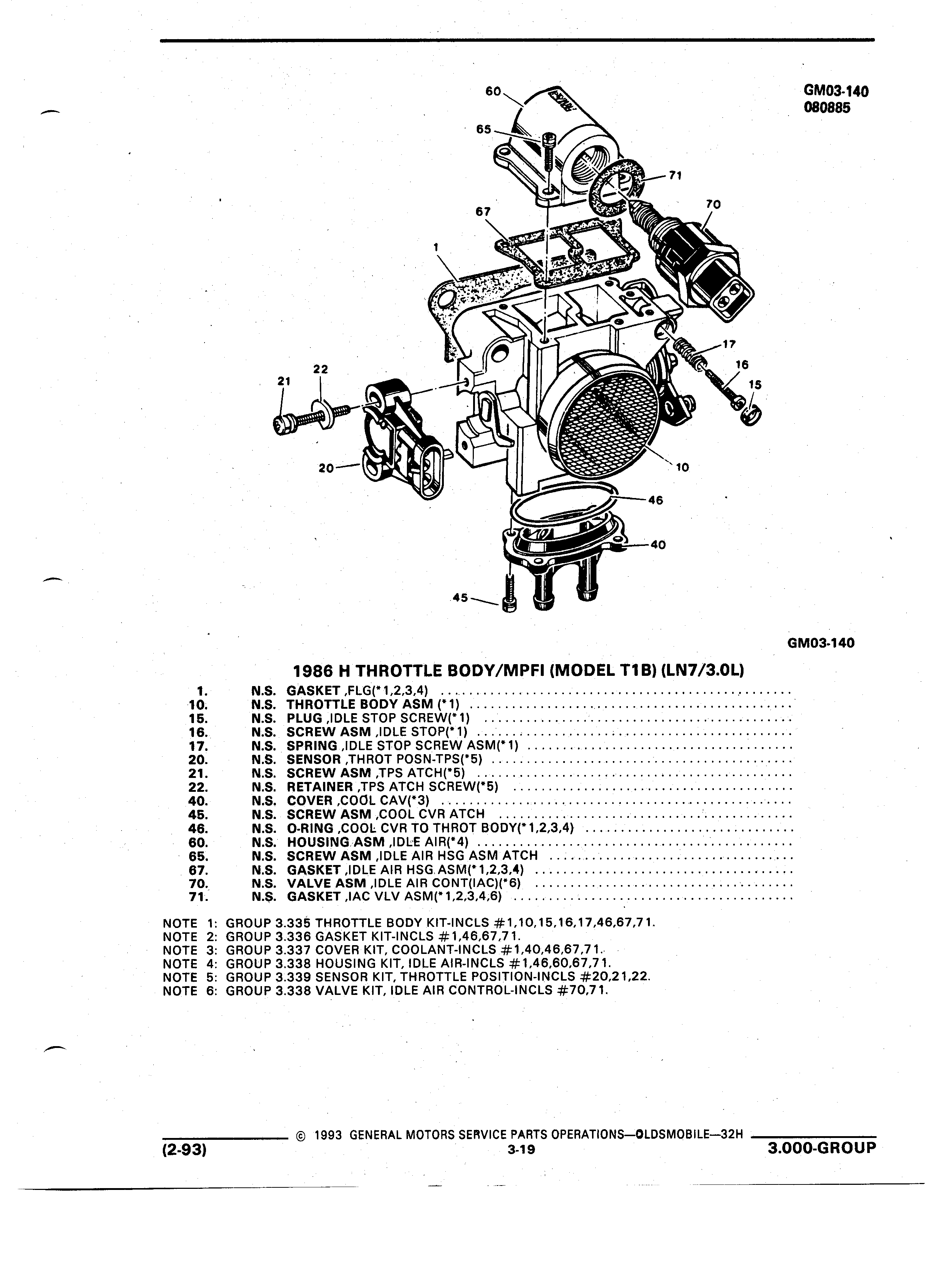

V Y so A GM03 140 K oeoaas A 71 67 Emi 7 I ze W A 1 5 I I 6 z A A 3 V 11 C 0 O W O 1 lf zz L T f I I 21 gl i 15 Q Q V r x K 5 1 e 20 Qp i 10 Y I 46 0 E wig GM03z140 1986 H THROTTLE BODY MPFI MODEL T1B LN7 3 0L 1 N S GASKET FLG 1 2 3 4 10 N S THROTTLE BODY ASM 1 15 N S PLUG IDLE STOP SCREW 1 16 N S SCREW ASM DLE STOP 1 4 17 N S SPRING IDLE STOP SCREW ASM 1 20 N S SENSOR THROT POSN TPS 5 21 N S SCREW ASM TPS ATCH 5 22 N S RETAINER TPS ATCH SCREW 5 40 N S COVER COOL CAV 3 45 N S SCREW ASM COOL CVR ATCH I I 46 N S O RING COOL CVR TO THROT BODY 1 2 3 4 I 60 N S HOUSINGASM IDLE AlR 4 65 N S SCREW ASM IDLE AIR HSG ASM ATCH 67 N S GASKET lDLE AIR HSG ASM 1 2 3 4 70 N S VALVE ASM lDLE AIR CONT lAC 6 71 N S GASKET IAC VLV ASM 1 2 3 4 6 NOTE 1 GROUP 3 335 THROTTLE BODY KIT INCLS 1 10 15 16 17 46 67 71 NOTE 2 GROUP 3 336 GASKET KIT INCLS 1 46 67 71 NOTE 3 GROUP 3 337 COVER KIT COOLANT INCLS 1 40 46 67 71 z NOTE 4 GROUP 3 338 HOUSING KIT IDLE AIR INCLS 1 46 60 67 71 NOTE 5 GROUP 3 339 SENSOR KIT THROTTLE POSITION INCLS 20 21 22 NOTE 6 GROUP 3 338 VALVE KIT IDLE AIR CONTROL INCLS 70 71 1 1993 GENERAL MOTORSVSERVICE PARTS OPERATIONS DLDSMOBILE 32H 2 93 3 19 3 000 GROUP
