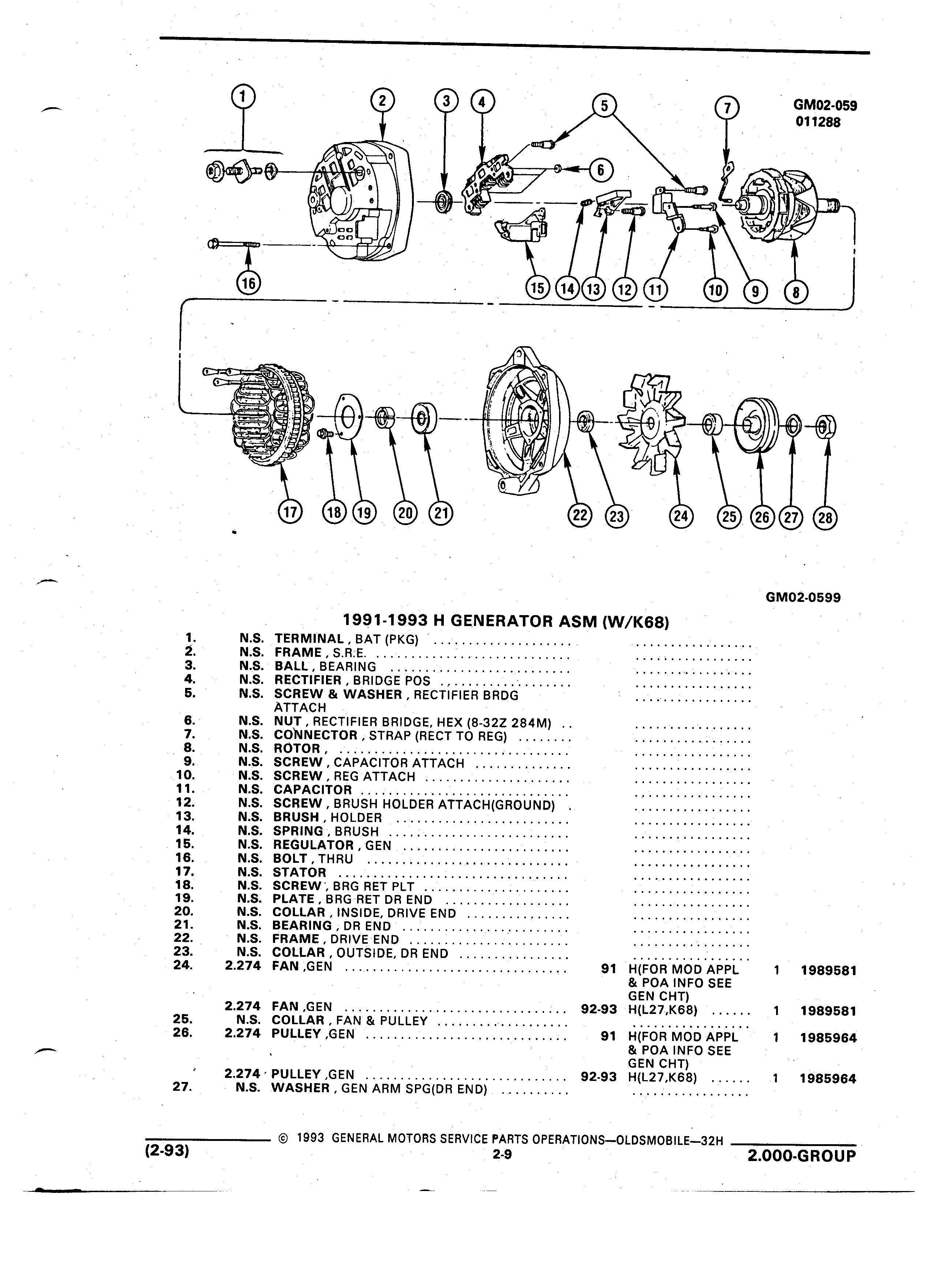

A Q Q 9 GM02 059 011288 3 ca I 0 B V Q A mlhx B 0 r n 3 OI 4 L I E L l Q v l Q D w 3 xi I 2 1 I GE L IRI I I F A s Q i T r I I GM02 0599 1991 1993 H GENERATOR ASM W K68 1 N S TERMINAL BAT PKG 2 N S FRAME S R E 3 N S BALL BEARING 4 N S RECTIFIER BRIDGE POS 5 N S SCREW WASHER RECTIFIER BRDG V ATTACH 6 N S NUT RECTIFIER BRIDGE HEX 8 32Z 284M 7 N S CONNECTOR STRAP RECT TO REG 8 N S ROTOR 9 N S SCREW CAPACITOR ATTACH 10 N S SCREW REG ATTACH 11 N S CAPACITOR 12 N S SCREW BRUSH HOLDER ATTACH GROUND 13 N S BRUSH HOLDER 14 N S SPRING BRUSH 15 N S REGULATOR GEN 16 N S BOLT THRU 17 N S STATOR I 18 N S SCREW BRG RET PLT 19 N S PLATE BRG RET DR END 20 N S COLLAR INSIDE DRIVE END 21 N S BEARING DR END 22 N S FRAME DRIVE END 23 N S COLLAR OUTSIDE DR END 24 2 274 FAN GEN 91 H FOR MOD APPL 1 1989581 POA INFO SEE GEN CHT 2 274 FAN GEN 92 93 H L27 K68 1 1989581 25 N S COLLAR FAN PULLEY 26 2 274 PULLEY GEN 91 H FOR MOD APPL 1 1985964 I I A POA INFO SEE GEN CHT 2 274 PULLEY GEN 92 93 H L27 K68 1 1985964 27 N S WASHER GEN ARM SPG DR END Y 1993 GENERAL MOTORS SERVICE PARTS OPERATIONS OLDSMOB LE 32H Y 2 93 2 9 2 000 GROUP
