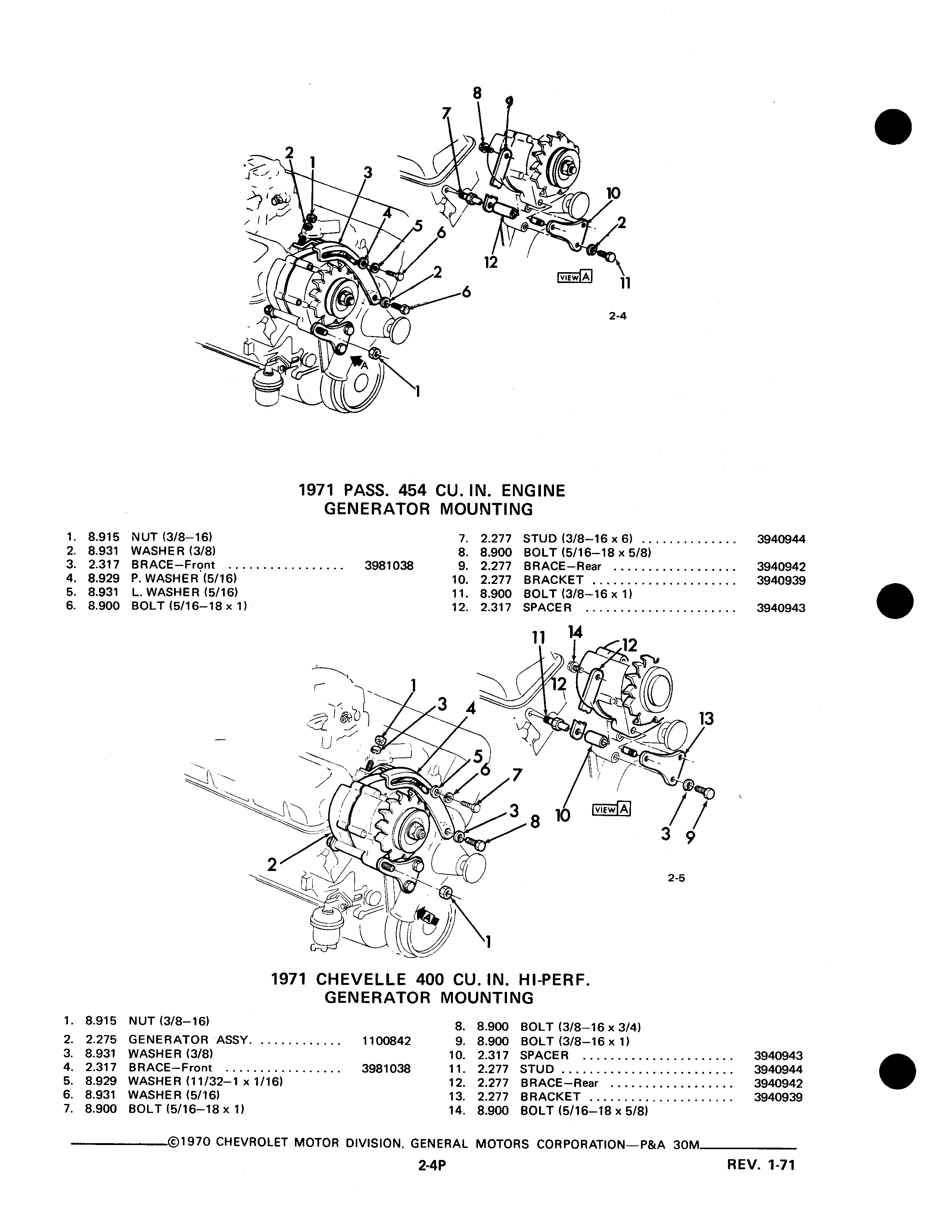

8 7 v 2 1 3 10 12 mew A 11 b 2 a 1971 PASS 454 CU IN ENGINE GENERATOR MOUNTING 1 8 915 NUT 3 8 16 7 2 277 STUD 3 8 16 x 6 3940944 2 8 931 WASHER 3 8 8 8 900 BOLT 5 16 18 x 5 8 3 2 317 BRACE Front 3981038 9 2 277 BRACE Rear 3940942 4 8 929 P WASHER 5 16 10 2 277 BRACKET 3940939 5 8 931 L WASHER 5 16 11 8 900 BOLT 3 8 16 x1 6 8 900 BOLT 5 16 18 x 1 12 2 317 SPACER 3940943 11 14 12 v v 2 1 1 3 13 7 3 1 view A i y 3 9 7 2 6 1 1971 CHEVELLE 400 CU IN HI PERF GENERATOR MOUNTING 1 8 915 NUT 3 8 16 8 8 900 BOLT 3 8 16 x 3 4 2 2 275 GENERATOR ASSY 1100842 9 8 900 BOLT 3 8 16 x 1 3 8 931 WASHER 3 8 10 2 317 SPACER 3940943 4 2 317 BRACE Front 3981038 11 2 277 STUD 3940944 5 8 929 WASHER 11 32 1 x 1 16 12 2 277 BRACE Rear 3940942 6 8 931 WASHER 5 16 13 2 277 BRACKET 3940939 7 8 900 BOLT 5 16 18 x 1 14 8 900 BOLT 5116 18 x 5 8
