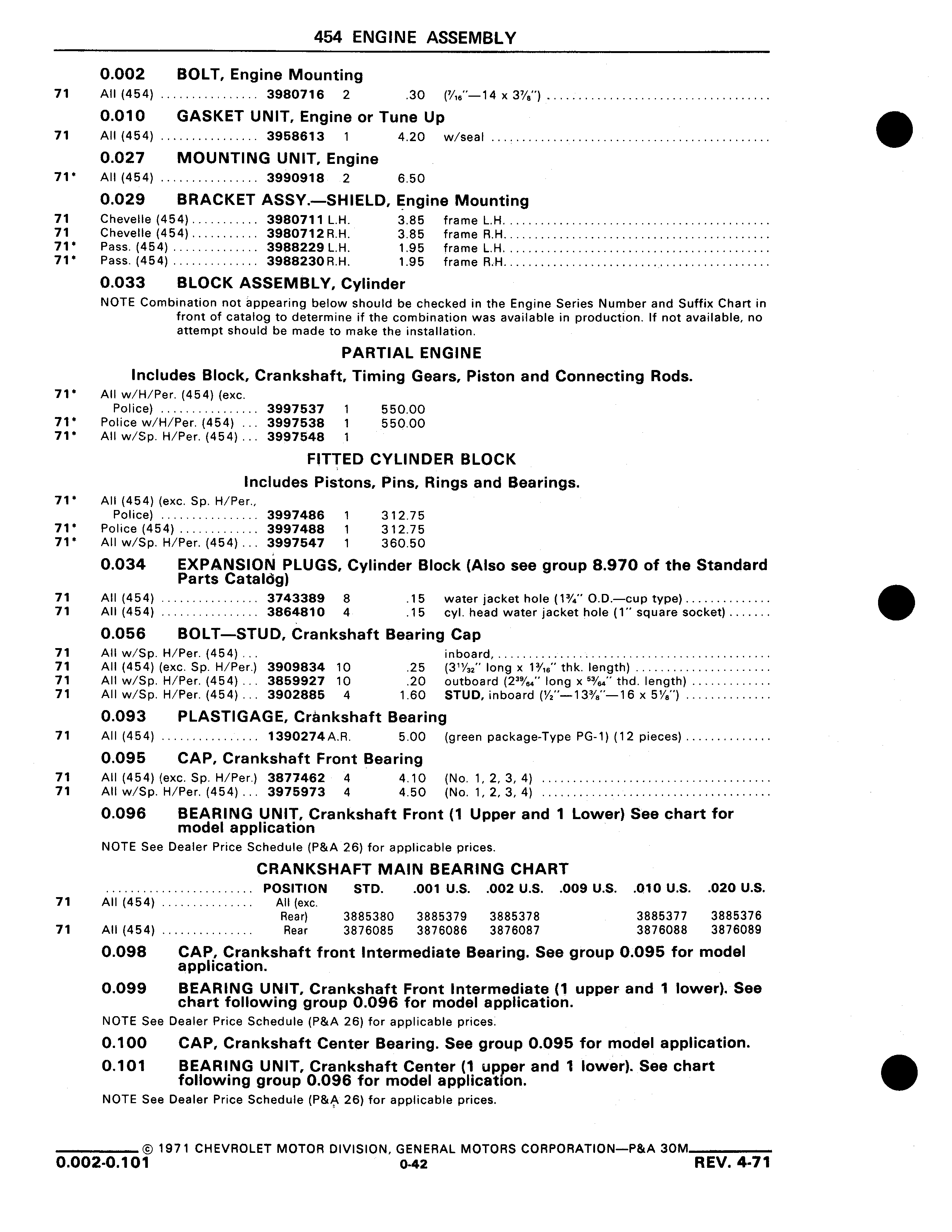

454 ENGINE ASSEMBLY 0 002 BOLT Engine Mounting 71 All 454 3980716 2 30 7 e 14x3 s 0 010 GASKET UNIT Engine or Tune Up 71 All 454 3958613 1 4 20 w seal 0 027 MOUNTING UNIT Engine 71 All 454 3990918 2 6 50 0 029 BRACKET ASSY SHIELD Engine Mounting 71 Chevelle 454 3980711 L H 3 85 frame L H 71 Chevelle 454 3980712 R H 3 85 frame R H 71 Pass 454 3988229 l H 1 95 frame L H 71 Pass 454 3988230 R H 1 95 frame R H 0 033 BLOCK ASSEMBLY Cylinder NOTE Combination not appearing below should be checked in the Engine Series Number and Suffix Chart in front of catalog to determine if the combination was available in production If not available no attempt should be made to make the installation PARTIAL ENGINE Includes Block Crankshaft Timing Gears Piston and Connecting Rods 71 All w H Per 454 exc Police 3997537 1 550 00 71 Police w H Per 454 3997538 1 550 00 71 All w Sp H Per 454 3997548 1 FITTED CYLINDER BLOCK Includes Pistons Pins Rings and Bearings 71 All 454 exc Sp H Per Police 3997486 1 312 75 71 Police 454 3997488 1 312 75 71 All w Sp H Per 454 3997547 1 360 50 0 034 EXPANSION PLUGS Cylinder Block Also see group 8 970 of the Standard Parts Cataldg 71 All 454 3743389 8 15 water jacket hole 1 O D cup type 71 All 454 3864810 4 15 cyl head water jacket hole 1 square socket 0 056 BOLT STUD Crankshaft Bearing Cap 71 All w Sp H Per 454 inboard 71 All 454 exc Sp H Per 3909834 10 25 3 Y x long x 13 s thk length 71 All w Sp H Per 454 3859927 10 20 outboard Z g long x 5 thd length 71 All w Sp H Per 454 3902885 4 1 60 STUD inboard 2 13 e 16 x 5 a 0 093 PLASTIGAGE Crankshaft Bearing 71 All 454 1390274 A R 5 00 green package Type PG 1 12 pieces 0 095 CAP Crankshaft Front Bearing 71 All 454 exc Sp H Per 3877462 4 4 10 No 1 2 3 4 71 All w Sp H Per 454 3975973 4 4 50 No 1 2 3 4 0 096 BEARING UNIT Crankshaft Front 1 Upper and 1 Lower See chart for model application NOTE See Dealer Price Schedule P A 26 for applicable prices CRANKSHAFT MAIN BEARING CHART POSITION STD 001 U S 002 U S 009 U S 010 U S 020 U S 71 All 454 All exc Rear 3885380 3885379 3885378 3885377 3885376 71 All 454 Rear 3876085 3876086 3876087 3876088 3876089 0 098 CAP Crankshaft front Intermediate Bearing See group 0 095 for model application 0 099 BEARING UNIT Crankshaft Front Intermediate 1 upper and 1 lower See chart following group 0 096 for model application NOTE See Dealer Price Schedule P A 26 for applicable prices 0 100 CAP Crankshaft Center Bearing See group 0 095 for model application 0 101 BEARING UNIT Crankshaft Center 1 upper and 1 lower See chart following group 0 096 for model application NOTE See Dealer Price Schedule P A 26 for applicable prices
