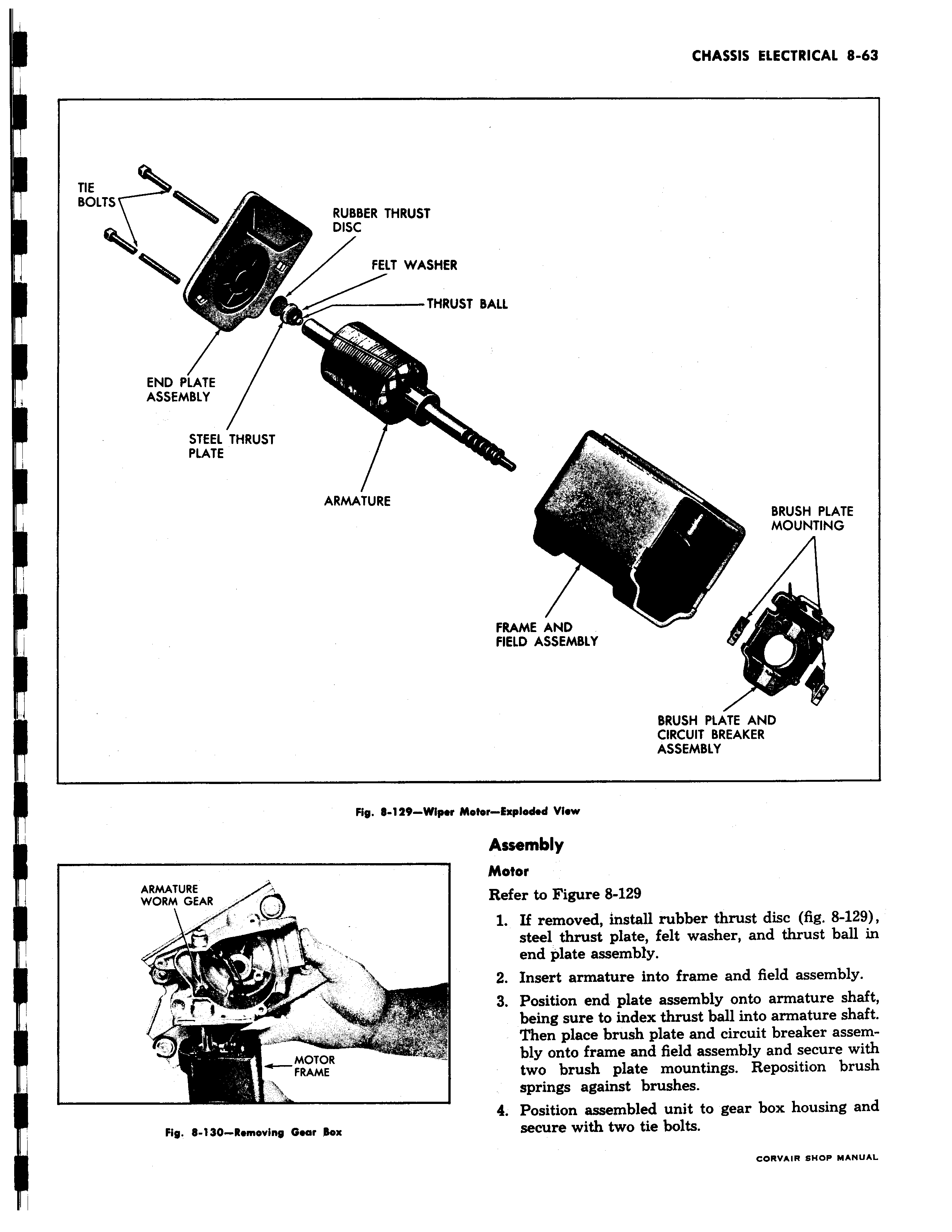

I TIE BOLTS RUBBER THRUST DISC FELT WASHEI THRI END PLATE ASSEMBLY STEEL THRUST PLATE ARMATURE Fig 8 129 Wipa ARMATURE I WORM GEAR MOTOR FRAME IN 16 Fig 8 130 Removing Geor ox IST BALL s rrar BRUSH PLATE MOUNTING p FRAME AND FIELD ASSEMBLY BRUSH PLATE AND CIRCUIT BREAKER ASSEMBLY motor Exploded View Assembly Motor Refer to Figure 8 129 1 If removed install rubber thrust disc fig 8 129 steel thrust plate felt washer and thrust ball in end plate assembly 2 Insert armature into frame and field assembly 3 Position end plate assembly onto armature shaft being sure to index thrust ball into armature shaft Then place brush plate and circuit breaker assembly onto frame and field assembly and secure with two brush plate mountings Reposition brush springs against brushes 4 Position assembled unit to gear box housing and secure with two tie bolts CORVAIR SHOP MANUAL
