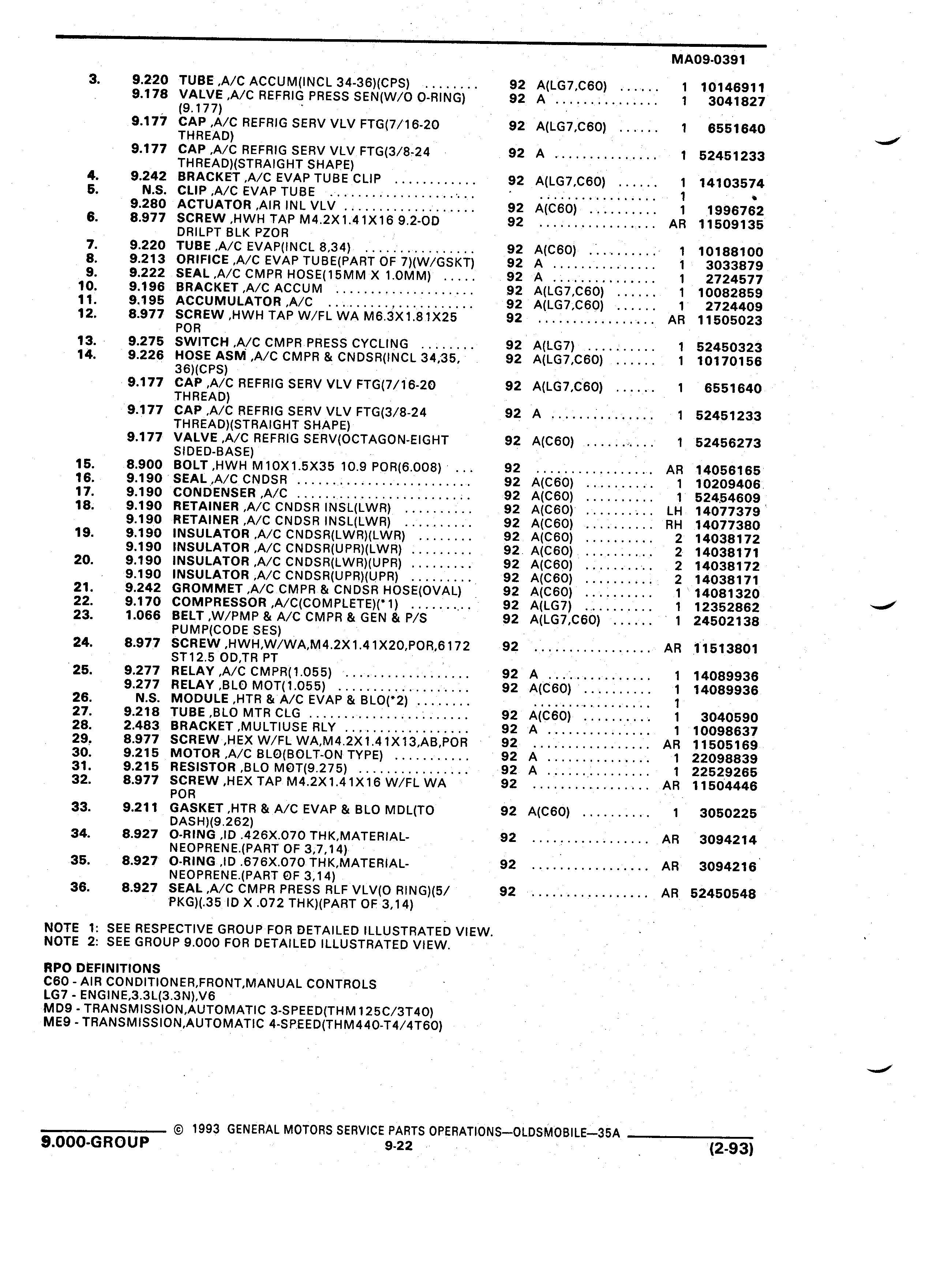

MA09 0391 3 9 2 20 TUBE A C ACCUM NCL 34 36 CPS Q 92 A LG7 C60 1 10146911 9 178 VALVE A C REFRIG PRESS SEN W O O RING 92 A 1 3041827 9 177 9 177 CAP A C REFRIG SERV VLV FTG 7 16 20 92 A LG7 C60 1 6551640 THREAD 9 177 CAP A C REFRIG SERV VLV FTG 3 8 24 92 A 1 52451233 THREAD STRAIGHT SHAPE 4 9 242 BRACKET A C EVAP TUBE CLIP 92 A LG7 C60 1 14103574 5 N S CLIP A C EVAP TUBE 1 9 280 ACTUATOR A R INL VLV 92 A C60 1 1996762 6 8 977 SCREW HWH TAP M4 2X1 41X16 9 2 OD 92 AR 11509135 DRILPT BLK PZOR 7 9 220 TUBE A C EVAP INCL 8 34 92 A C60 1 10188100 8 9 213 ORIFICE A C EVAP TUBE PART OF 7 W GSKT 92 A 1 3033879 9 9 222 SEAL A C CMPR HOSE 15MM X 1 0MM 92 A 1 2724577 10 9 196 BRACKET A C ACCUM 92 A LG7 C60 1 10082859 11 9 195 ACCUMULATOR A C 92 A LG7 C60 1 2724409 12 8 977 SCREW HWH TAP W FL WA M6 3X1 81X25 92 AR 11505023 POR 13 9 275 SWITCH A C CMPR PRESS CYCLING 92 A LG7 1 52450323 14 9 226 HOSE ASM A C CMPR CNDSR INCL 34 35 92 A LG7 C60 1 10170156 36 ICF I 9 177 CAP A C REFRIG SERV VLV FTG 7 16 20 92 A LG7 C60 1 6551640 THREAD 9 177 CAP A C REFRIG SERV VLV FTG 3 8 24 92 A 1 52451233 THREAD STRAIGHT SHAPE 9 177 VALVE A C REFRIG SERV OCTAGON EIGHT 92 A C60 1 52456273 SIDED BASE I 15 8 900 BOLT HWH M1OX1 5X35 10 9 POR 6 008 92 AR 14056165 16 9 190 SEAL A C CNDSR 92 A C60 1 10209406 17 9 190 CONDENSER A C 92 A C60 1 52454609 18 9 190 RETAINER A C CNDSR NSL LWR 92 A C60 LH 14077379 9 190 RETAINER A C CNDSR INSL LWR 92 A C60 RH 14077380 19 9 190 INSULATOR A C CNDSR LWR LWR 92 A C60 2 14038172 9 190 INSULATOR A C CNDSR UPR LWR 92 A C60 2 14038171 20 9 190 INSULATOR A C CNDSR LWR UPR 92 A C60 2 14038172 9 190 INSULATOR A C CNDSR UPR UF FI 92 A C60 2 14038171 21 9 242 GROMMET A C CMPR CNDSR HOSE OVAL 92 A C60 1 14081320 22 9 170 COMPRESSOR A C COMPLETE 1 92 A LG7 1 12352862 23 1 066 BELT W PMP A C CMPR GEN P S 92 A LG7 C60 1 24502138 PUMP CODE SES 24 8 977 SCREW HWH W WA M4 2X1 41X20 POR 6172 92 AR 11513801 ST12 5 OD TR PT 25 9 277 RELAY A C CMPR 1 055 92 A 1 14089936 9 277 RELAY BL0 MOT 1 055 92 A C60 1 14089936 26 N S MODULE HTR A C EVAP BLO 2 1 27 9 218 TUBE BL0 MTR CLG L 92 A C60 1 3040590 28 2 483 BRACKET MULTIUSE RLY 92 A I 1 10098637 29 8 977 SCREW HEX W FL WA M4 2X1 41X13 AB POR I I 92 AR 11505169 30 9 215 MOTOR A C BLO BOLT ON TYPE 92 A 1 22098839 31 9 215 RESISTOR BLO MOT 9 275 92 A V 1 22529265 32 8 977 SCREW HEX TAP M4 2X1 41X16 W FL WA 92 AR 11504446 POR I 33 9 211 GASKET HTR A C EVAP BLO MDL TO 92 A C60 1 3050225 DASH 9 262 34 8 927 O RING ID 426X O70 THK MATERIAL 92 AR 3094214 NEOPRENE PART OF 3 7 14 35 8 927 0 RING ID 676X 070 THK MATERIAL 92 AR 3094216 NEOPRENE PART OF 3 14 36 8 927 SEAL A C CMPR PRESS RLF VLV O RING 5 92 AR 52450548 PKG 35 ID X 072 THK PART OF 3 14 NOTE 1 SEE RESPECTIVE GROUP FOR DETAILED ILLUSTRATED VIEW NOTE 2 SEE GROUP 9 000 FOR DETAILED ILLUSTRATED VIEW RPO DEFINITIONS C60 AIR CONDITIONER FRONT MANUAL CONTROLS LG7 ENGINE 3 3L 3 3N V6 MD9 TRANSM SSION AUTOMAT C 3 SPEED THM125C 3T40 ME9 TRANSMISS ON AUTOMATIC 4 SP EED THM440 T4 4T60 I I T i 1993 GENERAL MOTORS SERVICE PARTS OPERATIONS OLDSMOBILE 35A iiti 9 000 GROUP 9 22 I 2 93
