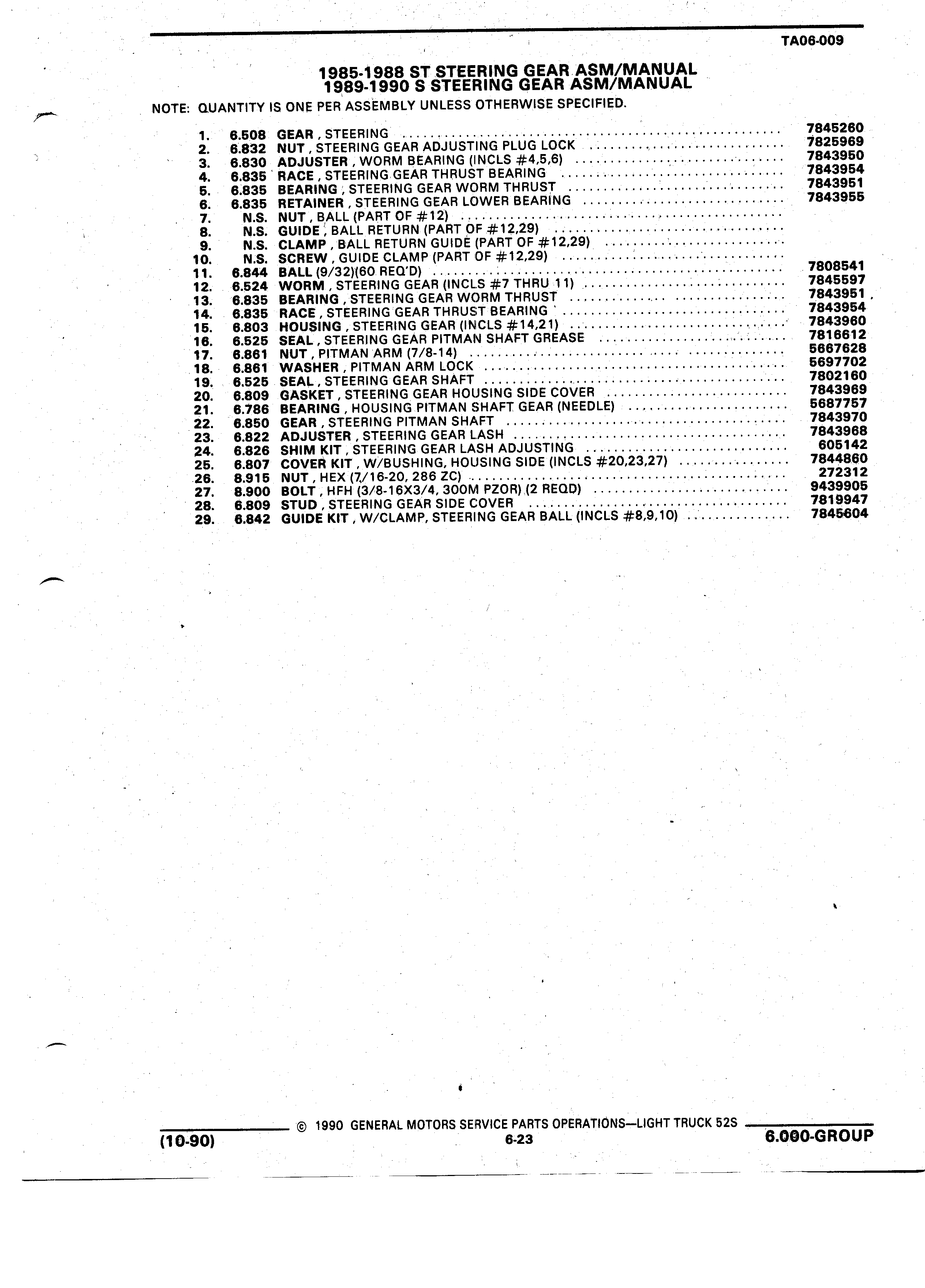

I j I V A TA06 009 3 1985 1988 ST STEERING GEARASM MANUAL 1989 1990 S STEERING GEAR ASM MANUAL I NOTE QUANTITY IS ONE PER ASSEMBLY UNLESS OTHERWISE SPECIFIED 1 6 508 GEAR STEERING 7845260 2 6 832 NUT STEERING GEAR ADJUSTING PLUG LOCK 7825969 A 3 6 830 ADJUSTER WORM BEARING INCLS 4 5 6 V 7843950 4 6 835 RACE STEERINGGEAR THRUST BEARING Q 7843954 5 6 835 BEARING Q STEERING GEAR WORM THRUST 7843951 6 6 835 RETAINER STEERING GEAR LOWER BEARING 7843955 7 N S NUT BALL PART OF 12 8 N S GUIDE Z BALL RETURN PART OF 12 29 9 N S CLAMP BALL RETURN GUIDE PART OF 12 29 10 N S SCREW GUIDE CLAMP PART OF 12 29 L V 11 6 844 BALL 9 32 6O REO D L 7808541 12 6 524 WORM STEERING GEAR INCL S 7 THRU 11 A L 7845597 V 13 6 835 BEARING STEERING GEAR WORM THRUST 7843951 14 6 835 RACE STEERING GEAR THRUST BEARING 7843954 15 6 803 HOUSING STEERING GEAR INCLS 14 21 7843960 I 16 6 525 SEAL STEERING GEAR PITMAN SHAFT GREASE L 7816612 17 6 861 NUT PITMAN ARM 7 8 14 5667628 18 6 861 WASHER PITMAN ARM LOCK 5697702 19 6 525 SEAL STEERING GEAR SHAFT 7802160 I 20 6 809 GASKET STEERING GEAR HOUSING SIDE COVER 7843969 V 21 6 786 BEARING HOUSING PITMAN SHAFT GEAR NEEDLE 5687757 22 6 850 GEAR STEERING PITMAN SHAFT 7843970 23 6 822 ADJUSTER STEERING GEAR LASH 7843968 24 6 826 SHIM KIT STEERING GEAR LASH ADJUSTING 605142 25 6 807 COVER KIT W BUSHING HOUSING SIDE INCLS 20 23 27 7844860 V 26 8 915 NUT HEX Z 16 20 286 ZC 272312 27 8 900 BOLT HFH 3 8 16X3 4 30OM PZOR 2 REO D 9439905 I I 28 6 809 STUD STEERING GEAR SIDE COVER 7819947 29 6 842 GUIDE KIT W CLAMP STEERING GEAR BALL INCLS 8 9 10 7845604 I l V A L 1990 GENERAL MOTORS SERVICE PARTS OPERATIONS LIGHT TRUCK 525 i 2 10 90 6 23 6 000 GROUP
