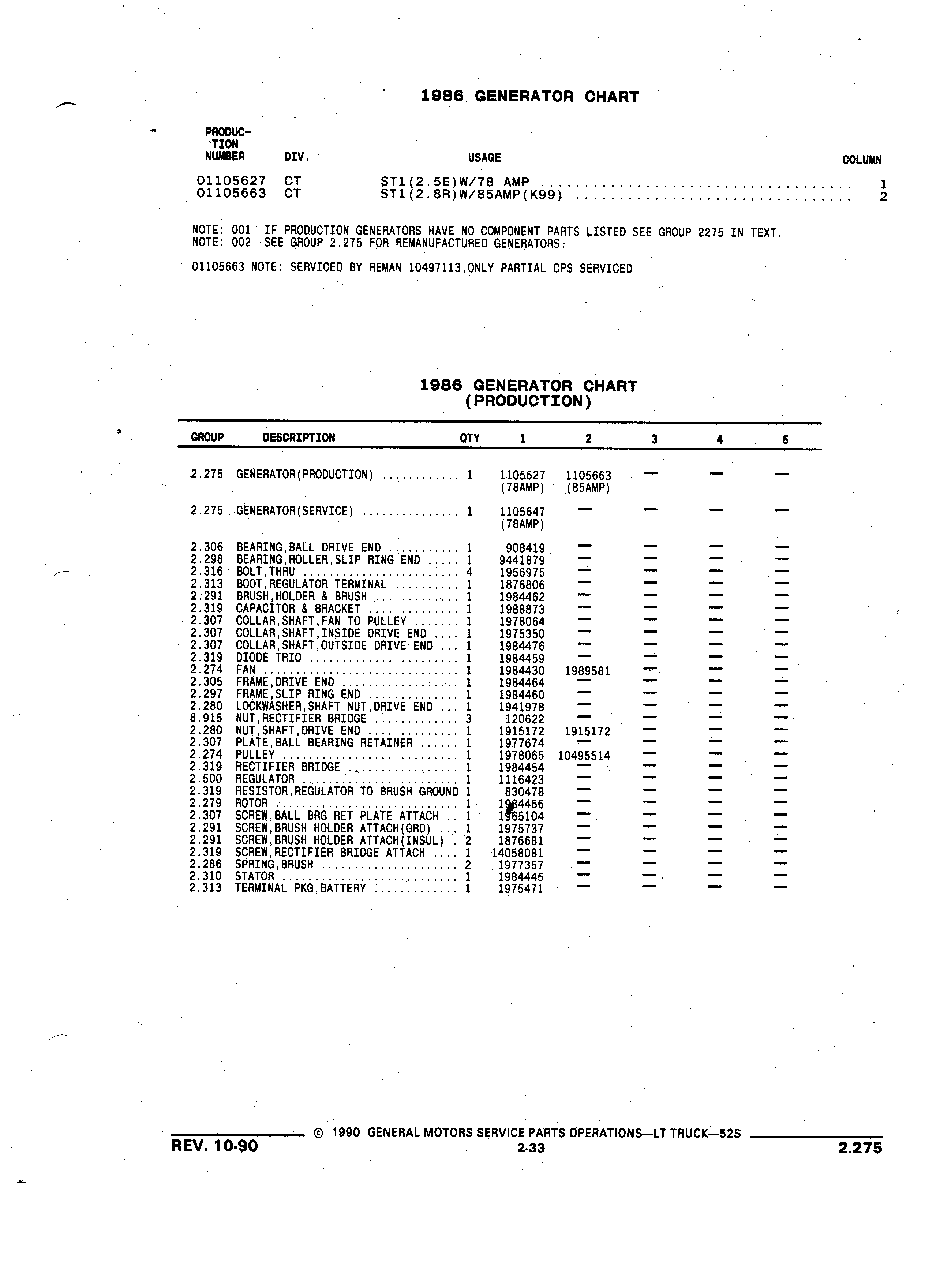

1986 GENERATOR CHART 1 PRODUC TION NUMBER DIV USAGE I COLUMN 01105627 CT ST1 2 5E W 78 AMP 1 01105663 CT ST1 2 8R W 85AMP K99 2 NOTE 001 IF PRODUCTION GENERATORS HAVE N0 COMPONENT PARTS LISTED SEE GROUP 2275 IN TEXT NOTE 002 VSEE GROUP 2 275 FOR REMANUFACTURED GENERATORS 01105663 NOTE SERVICED BY REMAN 10497113 0NLY PARTIAL CPS SERVICED 9 1986 GENERATOR CHART PRODUCTION 3 GROUP DESCRIPTION OTY 1 2 3 4 5 4 2 275 GENERATOR PRODUCTION 1 1105627 1105663 I 78AMP 85AMP 2 275 GENERATOR SERVICE 1 1105647 78AMP 2 306 BEARING BALL DRIVE END 1 908419 2 298 BEARING ROLLER SLIP RING END 1 9441879 2 316 BOLT THRU 4 1956975 2 313 BOOT REGULATOR TERMINAL 1 1876806 2 291 BRUSH HOLDER BRUSH 1 1984462 2 319 CAPACITOR BRACKET 1 1988873 2 307 COLLAR SHAFT FAN T0 PULLEY 1 1978064 2 307 0OLLAR SHAFT INSIDE DRIVE END 1 1975350 V 2 307 COLLAR SHAFT OUTSIDE DRIVE END 1 1984476 2 319 DIODE TRIO 1 1984459 2 274 FAN 1 1984430 1989581 2 305 FRAME DRIVE END 1 1984464 2 297 FRAME SLIP RING END 1 1984460 2 280 LOCKWASHER SHAFT NUT DRIVE END 1 1941978 8 915 NUT RECTIFIER BRIDGE 3 120622 2 280 NUT SHAFT DRIVE END 1 1915172 1915172 2 307 PLATE BALL BEARING RETAINER 1 1977674 2 274 PULLEY 1 1978065 10495514 2 319 RECTIFIER BRIDGE 1 1984454 2 500 REGULATOR 1 1116423 2 319 RESISTOR REGULATOR TO BRUSH GROUND 1 830478 2 279 ROTOR 1 1 4466 2 307 SCREW BALL BRG RET PLATE ATTACH 1 1 5104 2 291 SCREW BRUSH HOLDER ATTACH GRD 1 1975737 2 291 SCREW BRUSH HOLDER ATTACH INSUL 2 1876681 2 319 SOREW RECTIFIER BRIDGE ATTACH 1 14058081 2 286 SPRING BRUSH 2 1977357 2 310 STATOR 1 1984445 2 313 TERMINAL PKG BATTERV 1 1975471 t 1990 GENERAL MOTORS SERVICE PARTS OPERAT ONS LT TRUCK 52S t REV 10 90 2 33 2 275
