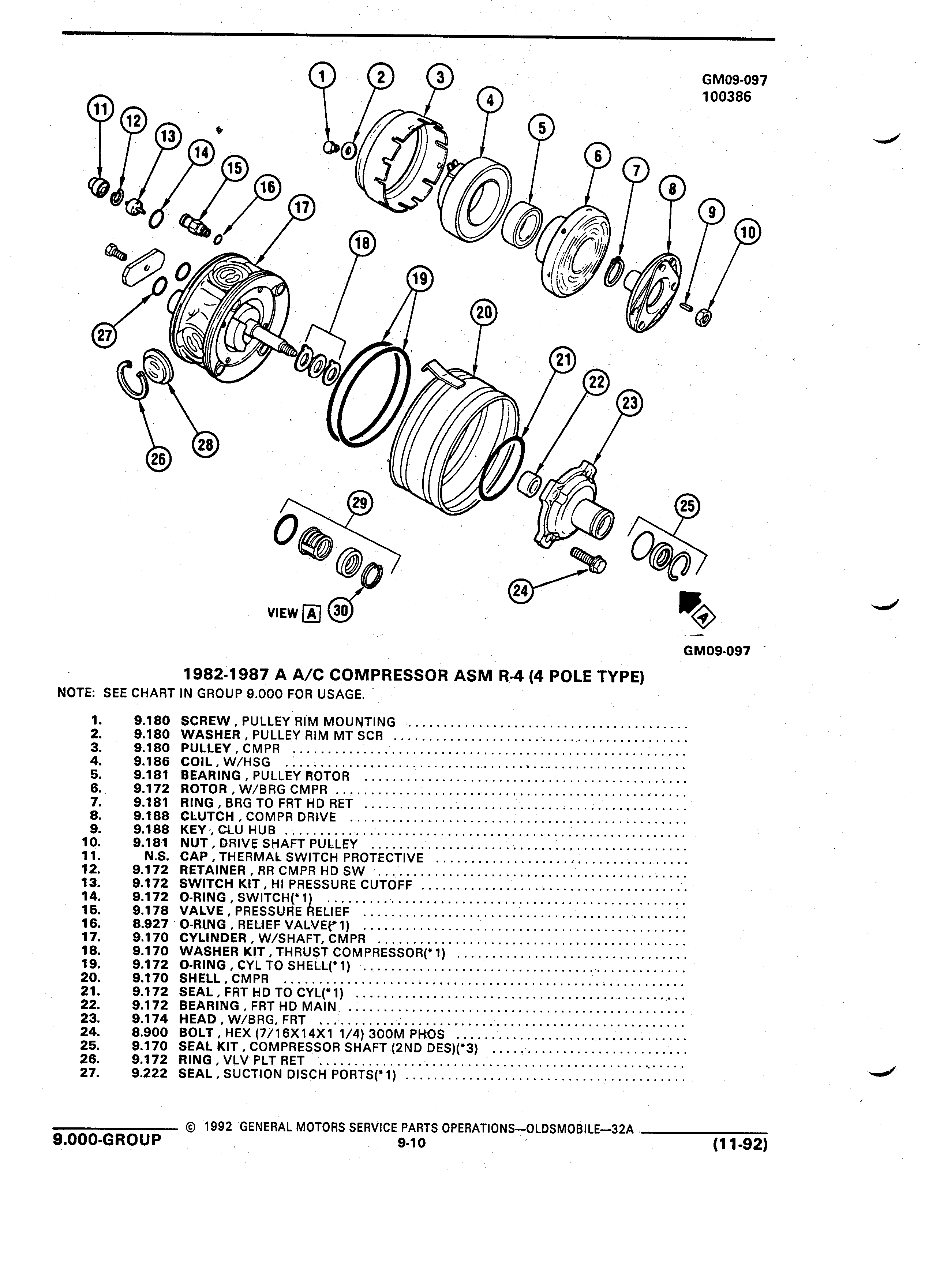

Q Q GM09 097 0 100386 I I 9 I cn c mm I Y o Q I I y m I I I 9 I I I 0 fw I I I I qi Kc 1 Q I ea Q ff l A f I 0 X G I W ea O vnsw GM09 097 1982 1987 A A C COMPRESSOR ASM R 4 4 POLE TYPE A NOTE SEE CHART IN GROUP 9 000 FOR USAGE 1 9 180 SCREW PULLEYVRIM MOUNTING 2 9 180 WASHER PULLEY RIM MT SCR 3 9 180 PULLEY CMPR 4 9 186 COIL W HSG l 5 9 181 BEARING PULLEY ROTOR 6 9 172 ROTOR W BRG CMPR 7 9 181 RING BRG TO FRT HD RET 8 9 188 CLUTCH COMPR DRIVE 9 9 188 KEY GLU HUB 10 9 181 NUT DRIVE SHAFT PULLEY 11 N S CAP THERMAL SWITCH PROTECTIVE 12 9 172 RETAINER RR CMPR HD SW I A 13 9 172 SWITCH KIT HI PRESSURE CUTOFF E 14 9 172 O RING SWlTCH 1 15 9 178 VALVE PRESSURE RELIEF 16 8 927 O RING RELIEF VALVEF1 17 9 170 CYLINDER W SHAFT CMPR 18 9 170 WASHER KIT THRUST COMPRESSOR 1 19 9 172 O RING CYL TO SHELL 1 20 9 170 SHELL CMPR 21 9 172 SEAL FRT HD TO CYL 1 22 9 172 BEARING FRT HD MAIN 23 9 174 HEAD W BRG FRT I 24 8 900 BOLT HEX 7 16X14X1 1 4 3OOM PI IOS 25 9 170 SEAL KIT COMPRESSOR SHAFT 2ND DES 3 26 9 172 RING VLV PLT RET 27 9 222 SEAL SUCTION DISCH PORTS 1 1992 GENERAL MOTORS SERVICE PARTS OPERATlONS OLDSMOBILE 32A 9 000 GROUP 9 10 11 92
