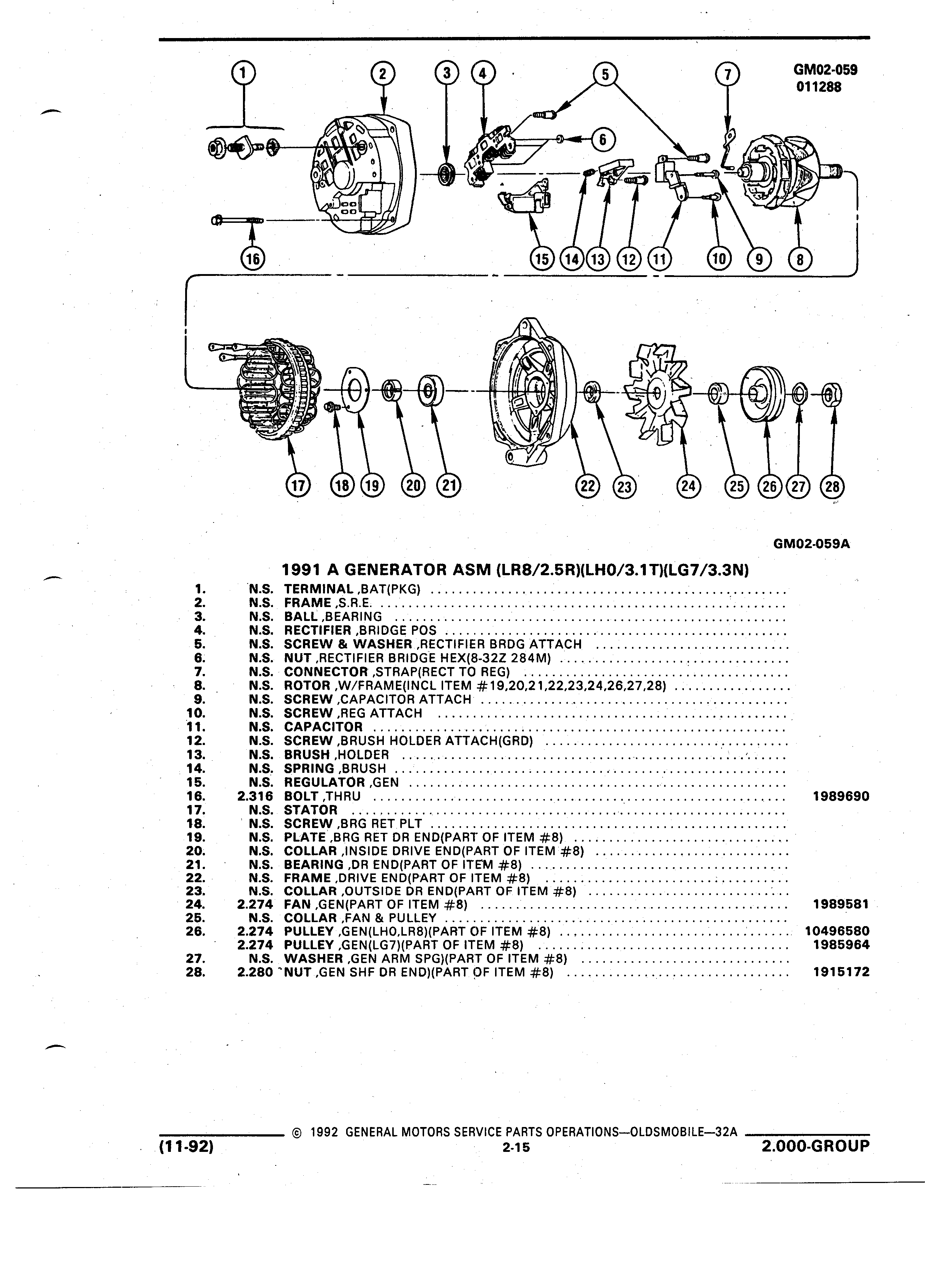

I 0 6 GM02 059 011288 l A ca A I r e 4 0 v e ix m A A P 0 I v 7 lg JI m I I 4 I I Ig 10 A l I Ort I f i g I I If I A r k B I Q 4 1 x 5 vg 0 I I l V V GM02 059A A 1991 A GENERATOR ASM LR8 2 5R LHO 3 1T LG7 3 3N V 1 N S TERMINAL BAT PKG 2 N S FRAME S R E 3 N S BALL BEARING 4 N S RECTIFIER BR DGE POS 5 N S SCREW WASHER RECTIFIER BRDG ATTACH 6 N S NUT RECTIFIER BRIDGE HEX 8 322 284M 7 N S I CONNECTOR STRAP RECT TO REG I 8 N S ROTOR W FRAME NCL ITEM 19 20 21 22 23 24 26 27 28 9 N S SCREW CAPACITOR ATTACH I 10 N S SCREW REG ATTACH 11 N S CAPACITOR 12 N S SCREW BRUSH HOLDER ATTACH GRD 13 N S BRUSH HOLDER 14 N S SPRING BRUSH 15 N S REGULATOR GEN I 16 2 316 BOLT THRU 1989690 17 N S STATOR I 18 N S SCREW BRG RET PLT 19 N S PL ATE BRG RET DR END PART OF ITEM 8 I 20 N S COLLAR INS DE DRIVE END PART OF ITEM 8 21 N S BEARING DR END PART OF ITEM 8 22 N S FRAME DRIVE END PART OF ITEM 8 23 N S COLLAR OUTSIDE DR END PART OF ITEM 8 L 24 2 274 FAN GEN PART OF ITEM 8 1989581 25 N S COLLAR FAN PULLEY 26 2 274 PULLEY GEN LHO LR8 PART OF ITEM 8 I 10496580 2 274 PULLEY GEN LG7 PART OF ITEM 8 1985964 27 N S WASHER GEN ARM SPG PAR T OF ITEM 8 28 2 280 NUT GEN SHF DR END PART IDF ITEM 8 1915172 V j 1 L I 992 GENERA MOTORS SERV CE PARTS OPERATIONS OLDSMOBILE 32A 11 92 2 15 2 000 GROUP
