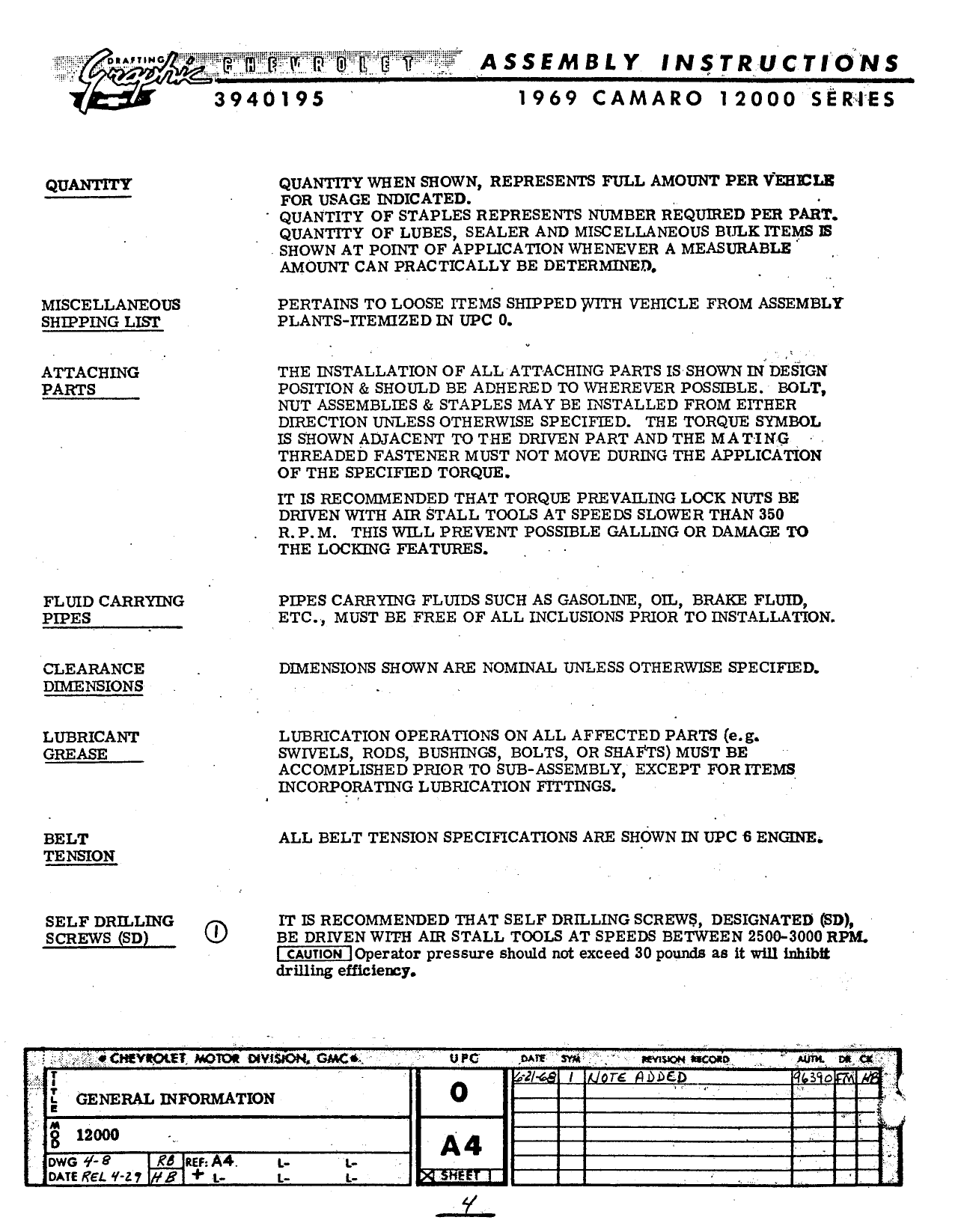

f A A s s E M B L Y IN 5 r n u c rr du s 3940I95 I969 CAMAR0 12000 SERIES QUANTITY QUANTITY WHEN SHOWN REPRESENTS FULL AMOUNT PER VEBELB FOR USAGE INDICATED QUANTITY OF STAPLES REPRESENTS NUMBER REQUIRED PER PART QUANTITY OF LUBES SEALER AND MISCELLANEOUS BULK 18 l A SHOWN AT POINT OF APPLICATION WHENEVER A MEASURABLE V AMOUNT CAN PRACTICALLY BE DETERMDIED MISCELLANEOUS I PERTAINS T0 LOOSE ITEMS SHIPPED WITH VEHICLE FROM ASSEMBLY SHIPPING LIST PLANTS I I EMIZED IN UPC 0 ATTACHDIG l THE INSTALLATION OF ALL ATTACHING PARTS IS SHOWN INI DESIGN PARTS POSITION 8 SHOULD BE ADI IERED I O WHEREVER POSSBLE BOLT NUT ASSEMBLIES STAPLES MAY BE INSTALLED FROM EITHER DIRECTION UNLESS OTHERWISE SPECIFIED THE TORQUE SYMBOL IS SHOWN ADJACENT TO THE DRIVEN PART AND THE MATING THREADED FASTENER MUST NOT MOVE DURING THE APPLICATION OF THE SPECIFIED TORQUE IT IS RECOMMENDED THAT TORQUE PREVAILING LOCK NUTS BE DRIVEN WITH AIR STALL TOOLS AT SPEEDS SLOWER THAN 350 R P M THIS WILL PREVENT POSSIBLE GALLING OR DAMAGE T0 THE LOCIGNG FEATURES FLUID CARRYING l PIPES CARRYING FLUIDS SUCH AS GASOLINE OIL BRAKE FLUID PIPES ETC MUST BE FREE OF ALL INCLUSIONS PRIOR TO INSTALLATION CLEARANCE DIMENSIONS SHOWN ARE NOMINAL UNLESS OTHERWISE SPECIFIED DIMENSIONS LUBRICANT LUBRICATION OPERATIONS ON ALL AFFECTED PARTS e g GREASE SWIVELS RODS BUSHINGS BOLTS OR SHAFTS MUST BE ACCOMPLISHED PRIOR TO SUB ASSEMBLY EXCEPT FOR ITEMS INCORPORATING LUBRICATION FITTINGS BELT ALL BELT TENSION SPECIFICATIONS ARE SHOWN IN UPC 6 ENGINE TENSION SELF DRILLHIG IT IS RECOMMENDED THAT SELF DRTLLING SCREWS DESIGNATED GD SCREWS BE DRIVEN WITH AIR STALL TOOLS AT SPEEDS BETWEEN 2500 3000 RPM HHH Operator pressure should not exceed 30 pounds as it wi I inhibit drilling efficiency 9CH Vl9 EI MOTORS BIWSION concs V UPG xm sm j nvwm l ole r I I I GENERAL F RMM 1l I 8 nom V m nwc 4 9 asn u L nntkeu 11 LB I I L muxuul
